Cylinder Head Assembly

Cylinder head

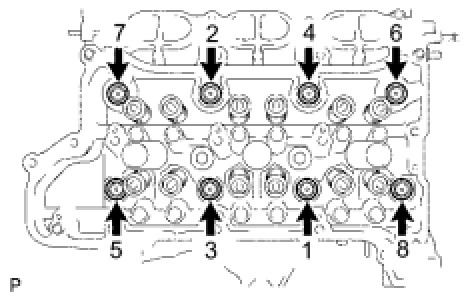

Right:

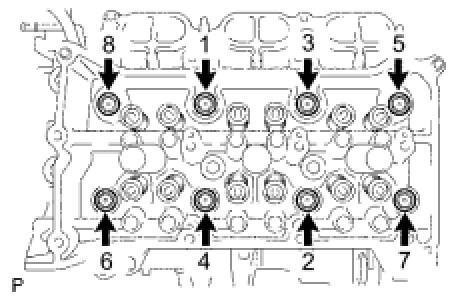

Left:

Step 1 36 Nm (367 kgf-cm, 27 ft-lbf)
Step 2 90°
Step 3 additional 90°

Warpage maximum 0.10 mm (0.0039 in)

Cylinder head bolts

Minimum diameter 10.7 mm (0.4213 in)

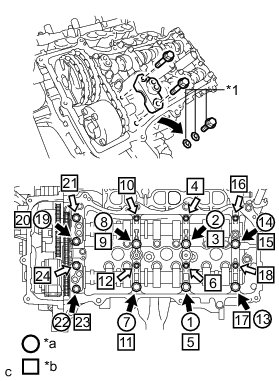

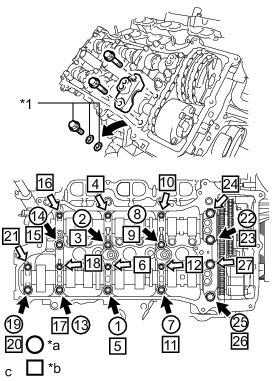

Camshaft caps








Bolt A 28 Nm (286 kgf-cm, 21 ft-lbf)
Bolt B 16 Nm (163 kgf-cm, 12 ft-lbf

Intake manifold Specifications

Exhaust manifold Specifications

Camshaft gear Specifications
