Installation

ENGINE IMMOBILIZER: CERTIFICATION ECU: INSTALLATION

1. INSTALL CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

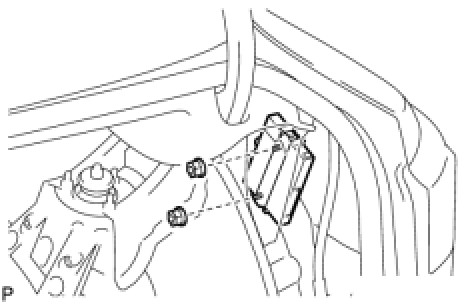

(a) Install the certification ECU (smart key ECU assembly) with the 2 nuts.





(b) Connect the connector.

2. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER Installation

3. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Installation

4. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER Installation

5. INSTALL ROPE HOOK Installation

6. INSTALL NO. 2 ROOM LIGHT ASSEMBLY Installation

7. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER Installation

8. INSTALL ROPE HOOK ASSEMBLY Installation

9. INSTALL DECK SIDE TRIM BOX LH

10. INSTALL DECK SIDE TRIM BOX RH

11. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM COVER

12. REGISTER ECU COMMUNICATION ID

NOTICE:
When replacing the certification ECU (smart key ECU assembly), perform initialization Engine Immobilizer System.

13. REGISTER KEY

NOTICE:
When replacing the certification ECU (smart key ECU assembly), perform initialization Engine Immobilizer System.
