Engine does not Start: Procedure

1. Delete the DTCs.

   HINT:

   After all DTCs are cleared, check if the trouble occurs again 5 seconds after the engine switch is turned on (IG).

2. Check for DTCs again.

   OK

   No DTC is output.

NG → GO TO DTC CHART

OK: Go to next step

1. When there is fuel in the fuel tank, the key is inside the vehicle and the shift lever is on P, check that depressing the brake pedal causes the engine to start.

   OK

   Engine starts.

NG → See step   3

OK → END

1. When the key is inside the vehicle and the shift lever is on P, check that depressing the brake pedal while pressing the engine switch causes the power source mode to change as follows.

   OK

   off → on (ACC) → on (IG) → off

NG → GO TO POWER SOURCE MODE DOES NOT CHANGE

OK: Go to next step

1. When there is fuel in the fuel tank, the key is inside the vehicle and the shift lever is on P, check that depressing the brake pedal and pressing the engine switch cranks the engine.

   OK

   Engine cranks.

NG → See step   5

OK → GO TO ENGINE IMMOBILIZER SYSTEM

1. When the engine switch is on (ACC), check that the steering lock can be released.

   OK

   Steering lock can be released.

NG → GO TO STEERING LOCK SYSTEM

OK: Go to next step

1. Disconnect the K73 ECU connector.

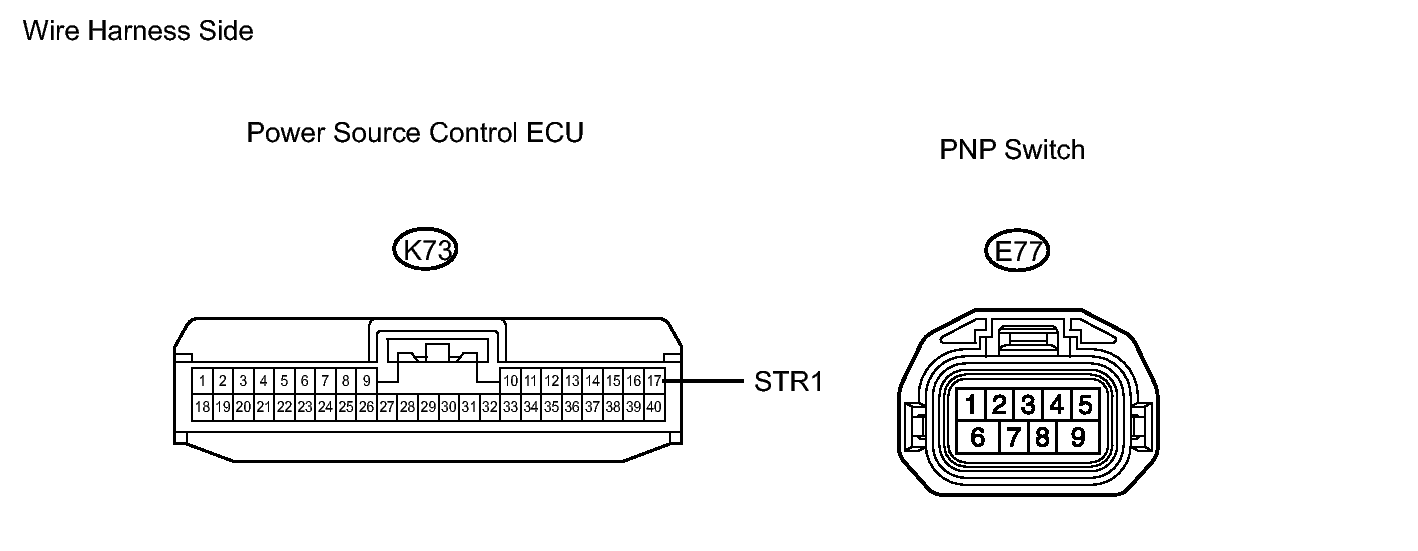

   Fig 1: Identifying Terminals Of K73 ECU And E77 Switch Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the E77 switch connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   Tester Connection	Specified Condition
   K73-17 (STR1) - E77-4	Below 1 Ω
   K73-17 (STR1) or E77-4 - Body ground	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

1. Remove the ST CUT relay from the engine room No. 2 relay block.

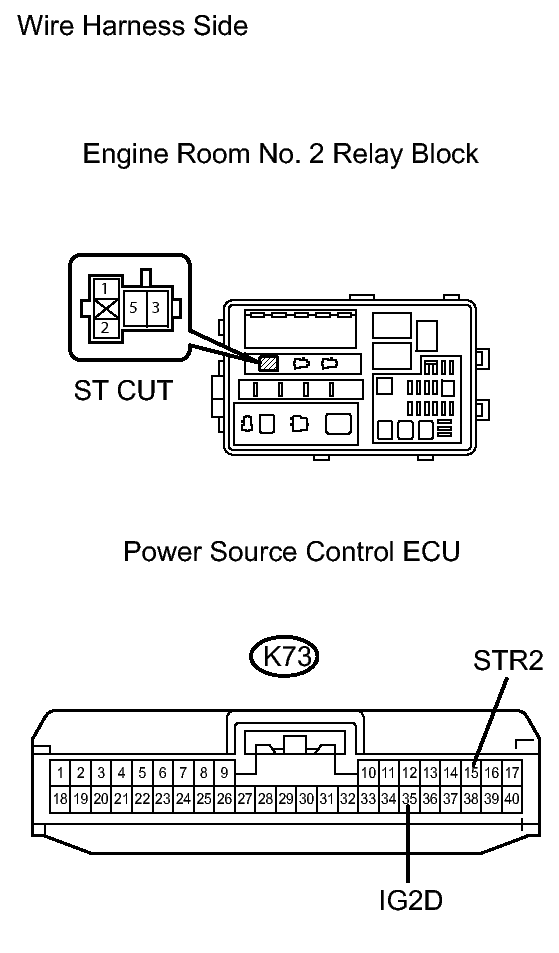

   Fig 2: Identifying Terminals Of K73 Power Source Control ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the K73 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   Tester Connection	Specified Condition
   Engine room No. 2 relay block ST CUT relay terminal 3 - K73-15 (STR2)	Below 1 Ω
   Engine room No. 2 relay block ST CUT relay terminal 3 or K73-15 (STR2) - Body ground	10 kΩ or higher

   Standard resistance

   Tester Connection	Specified Condition
   Engine room No. 2 relay block ST CUT relay terminal 2- K73-35 (IG2D)	Below 1 Ω
   Engine room No. 2 relay block ST CUT relay terminal 2 or K73-35 (IG2D) - Body ground	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

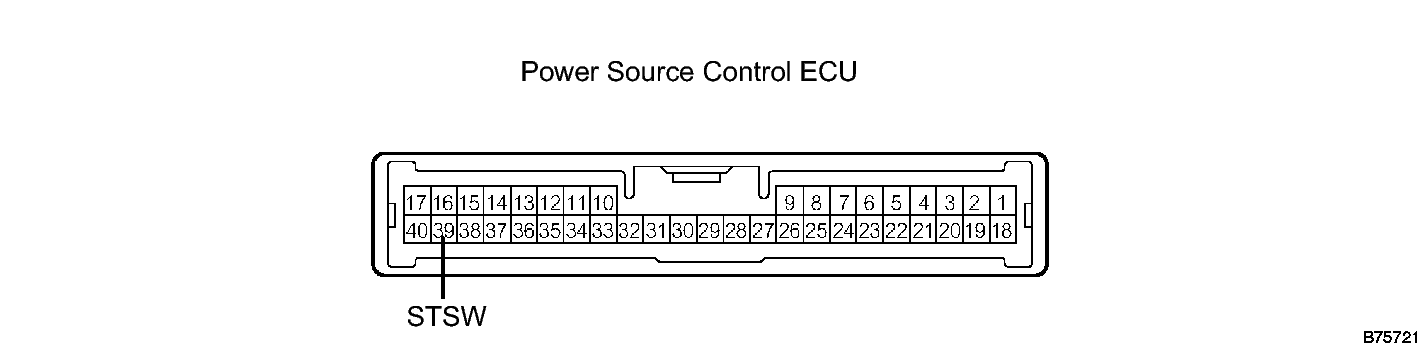

Fig 3: Identifying Power Source Control ECU Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Reconnect the K73 ECU connector.
2. Measure the voltage of the ECU.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   K73-39 (STSW) - Body ground	Engine switch on (IG)	10 to 14 V

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK → GO TO SFI SYSTEM
