Power Tilt and Power Telescopic: Notes

WARNING: This page is about a different car, the 2010 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

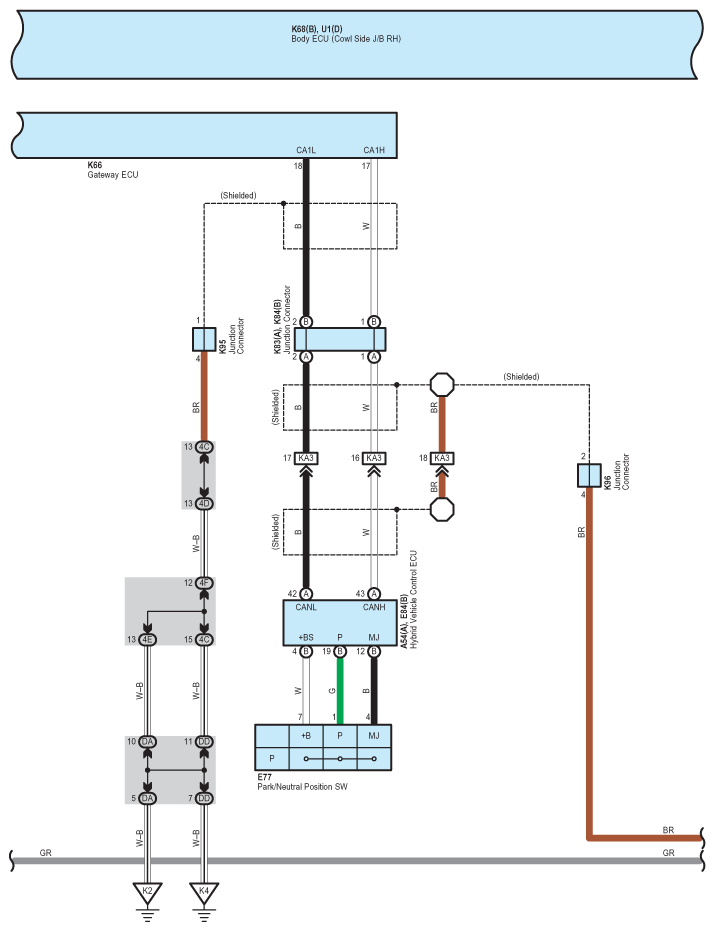

Fig 1: Power Tilt And Power Telescopic - Wiring Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

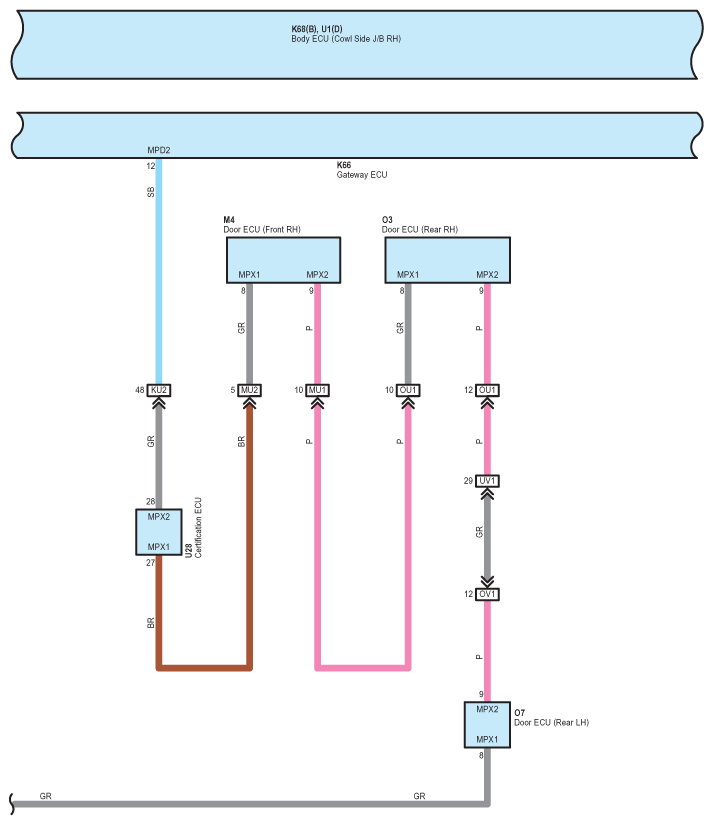

Fig 2: Power Tilt And Power Telescopic - Wiring Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

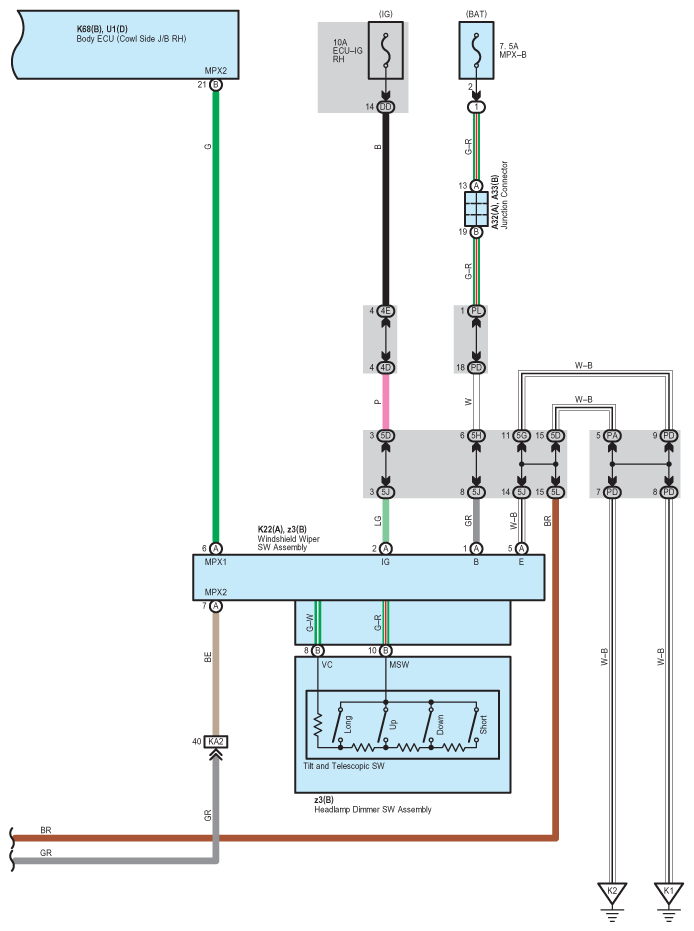

Fig 3: Power Tilt And Power Telescopic - Wiring Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

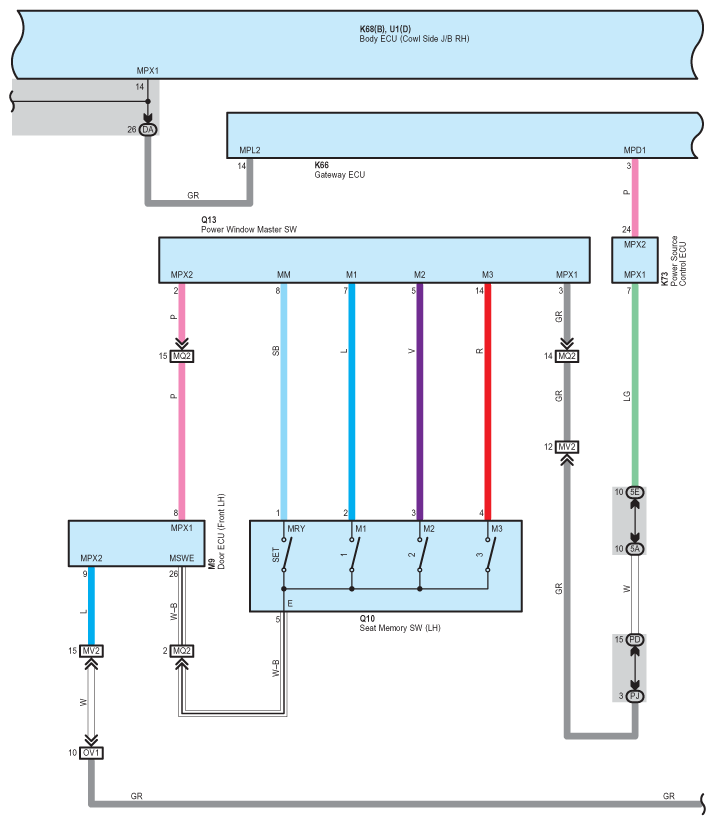

Fig 4: Power Tilt And Power Telescopic - Wiring Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

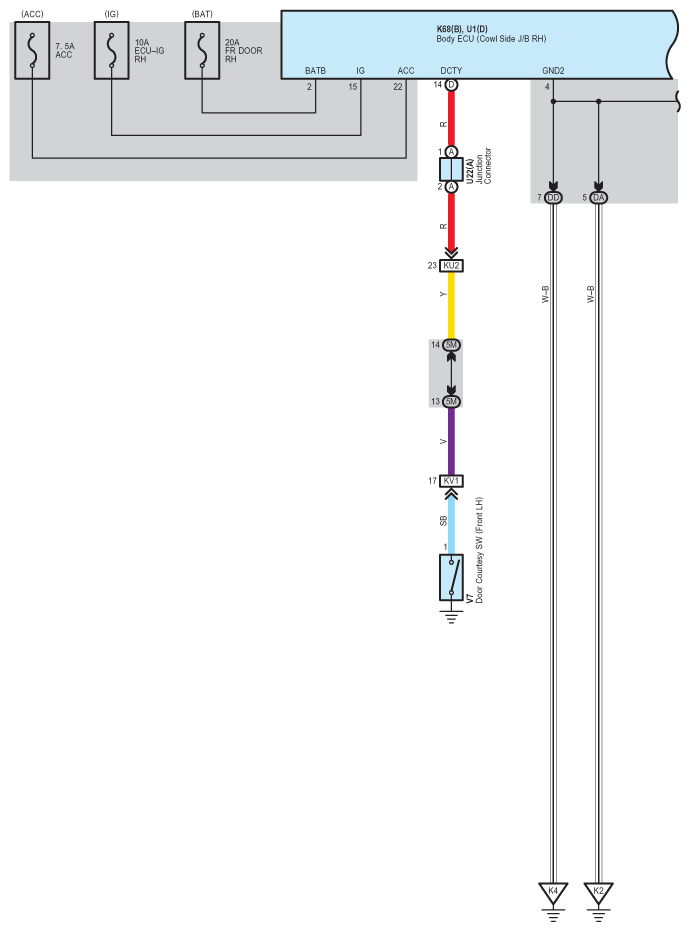

Fig 5: Power Tilt And Power Telescopic - Wiring Diagram (5 Of 7)

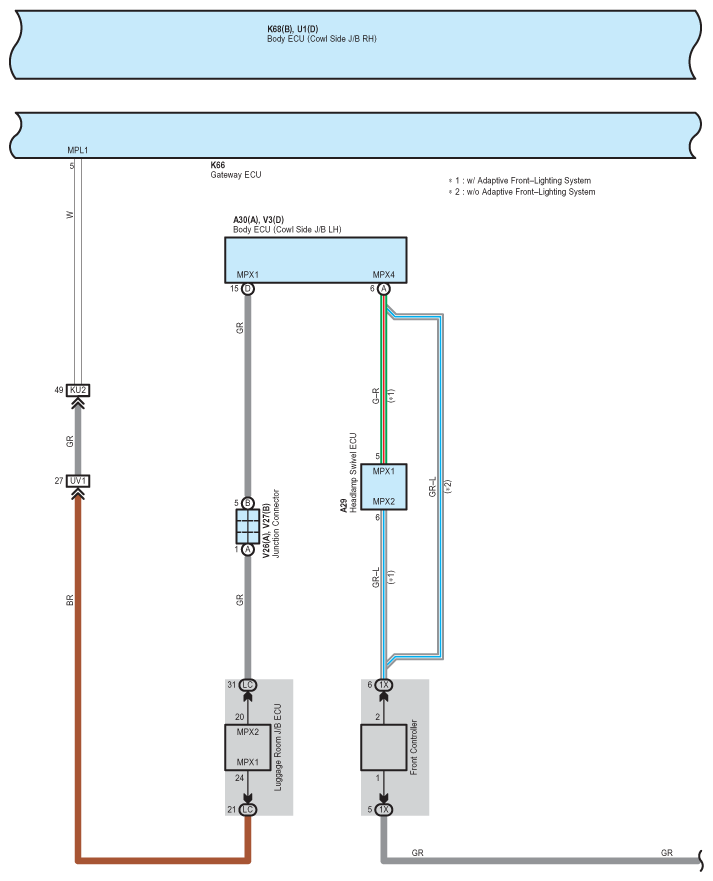

Fig 6: Power Tilt And Power Telescopic - Wiring Diagram (6 Of 7)

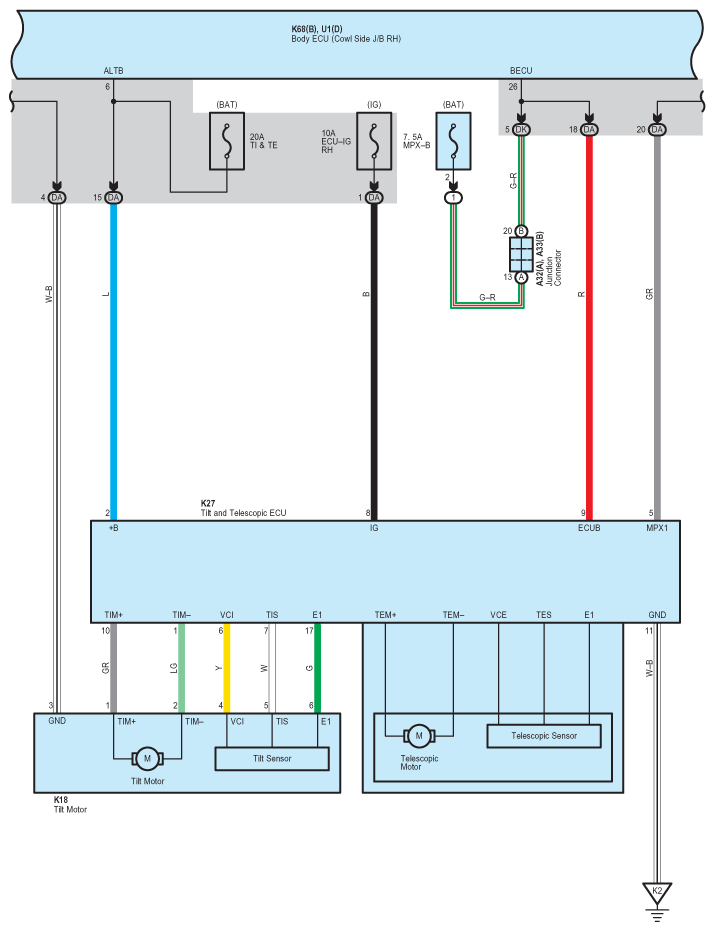

Fig 7: Power Tilt And Power Telescopic - Wiring Diagram (7 Of 7)
