Smart Access System (Keyless Start) (Diagnostics - Introduction)
>>
Smart Access System With Push-Button Start
>>
Parts Location
>>
Illustration
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Parts Location: Illustration

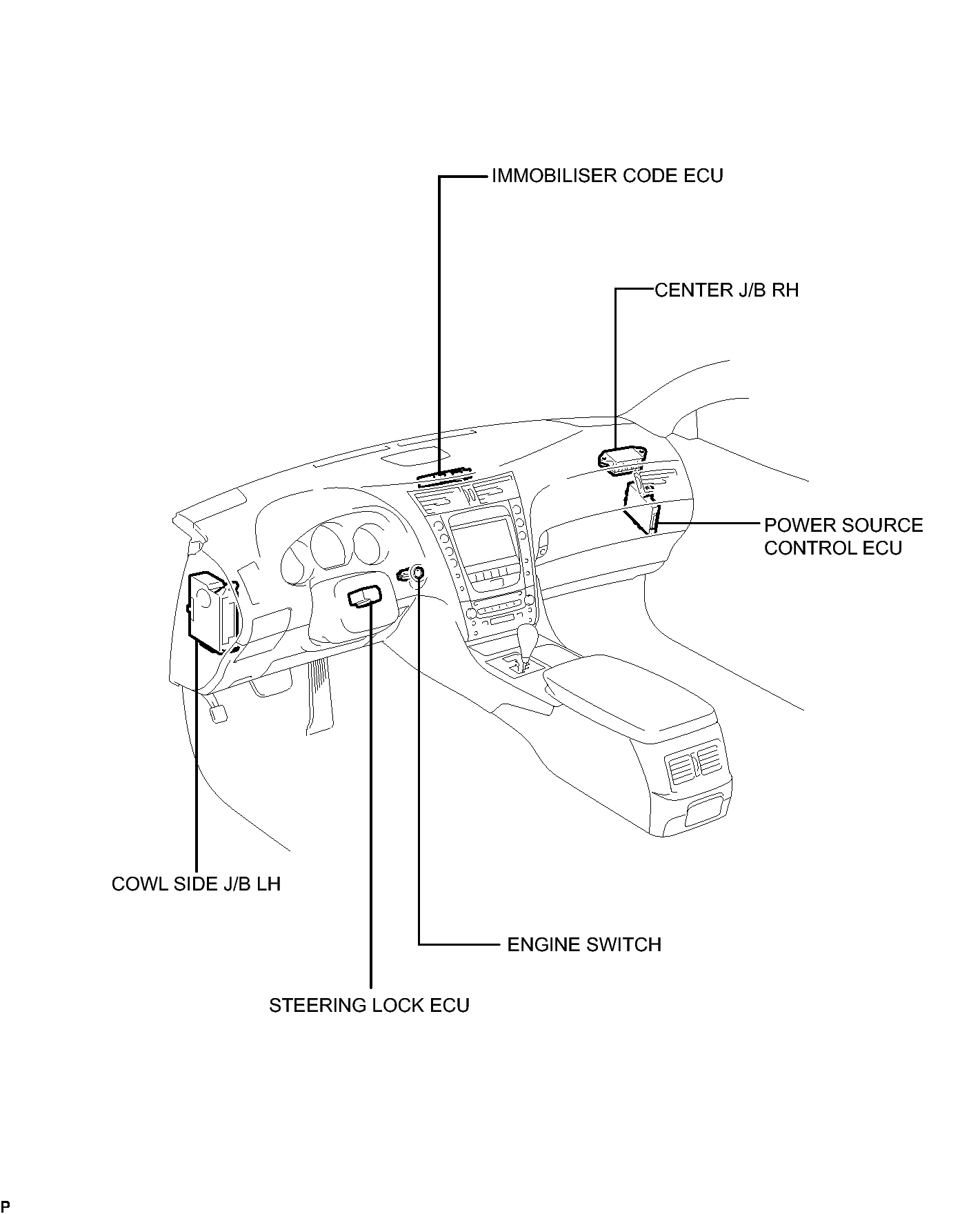

Fig 1: Identifying Smart Access System With Push-Button Start Component Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

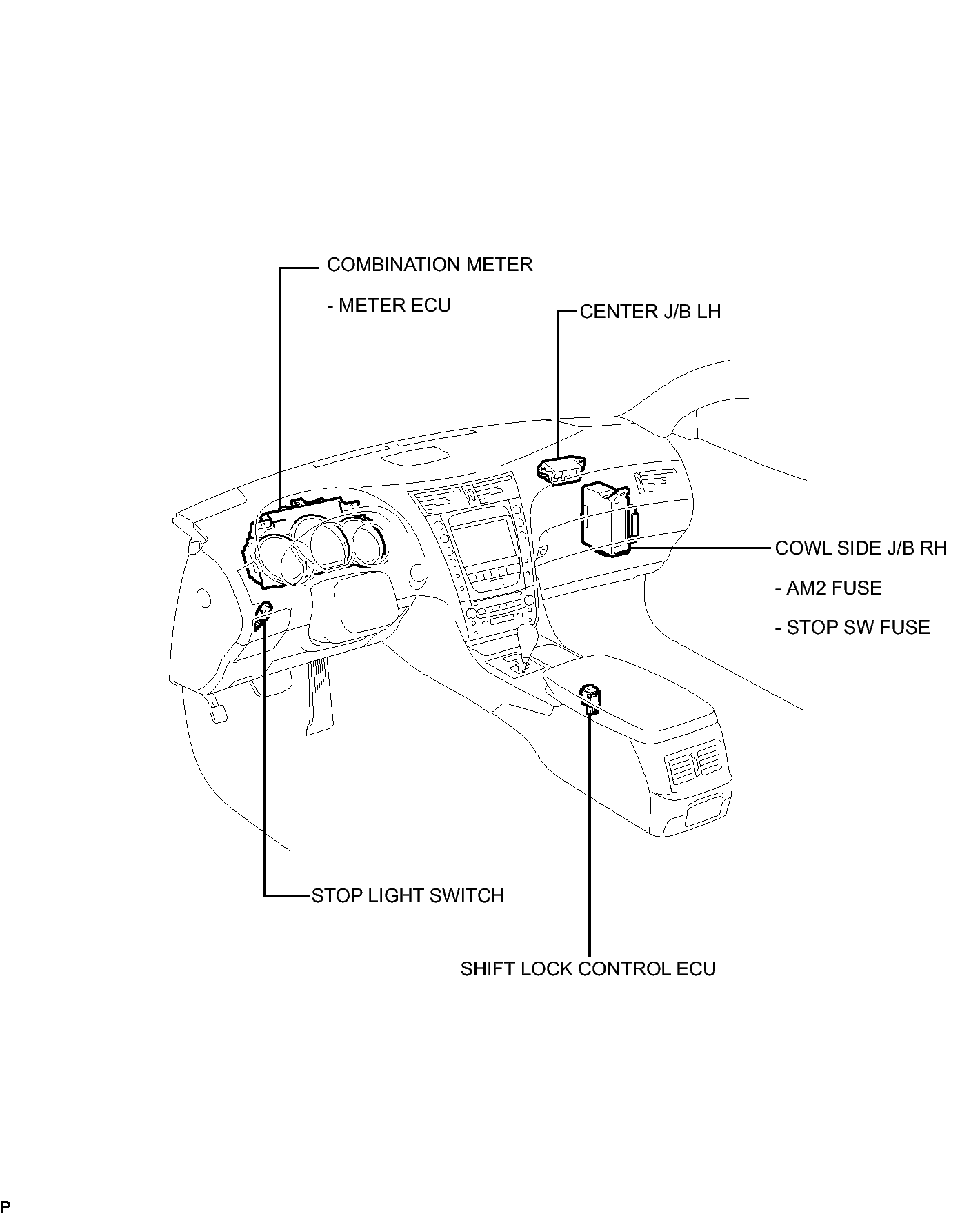

Fig 1: Identifying Smart Access System With Push-Button Component Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

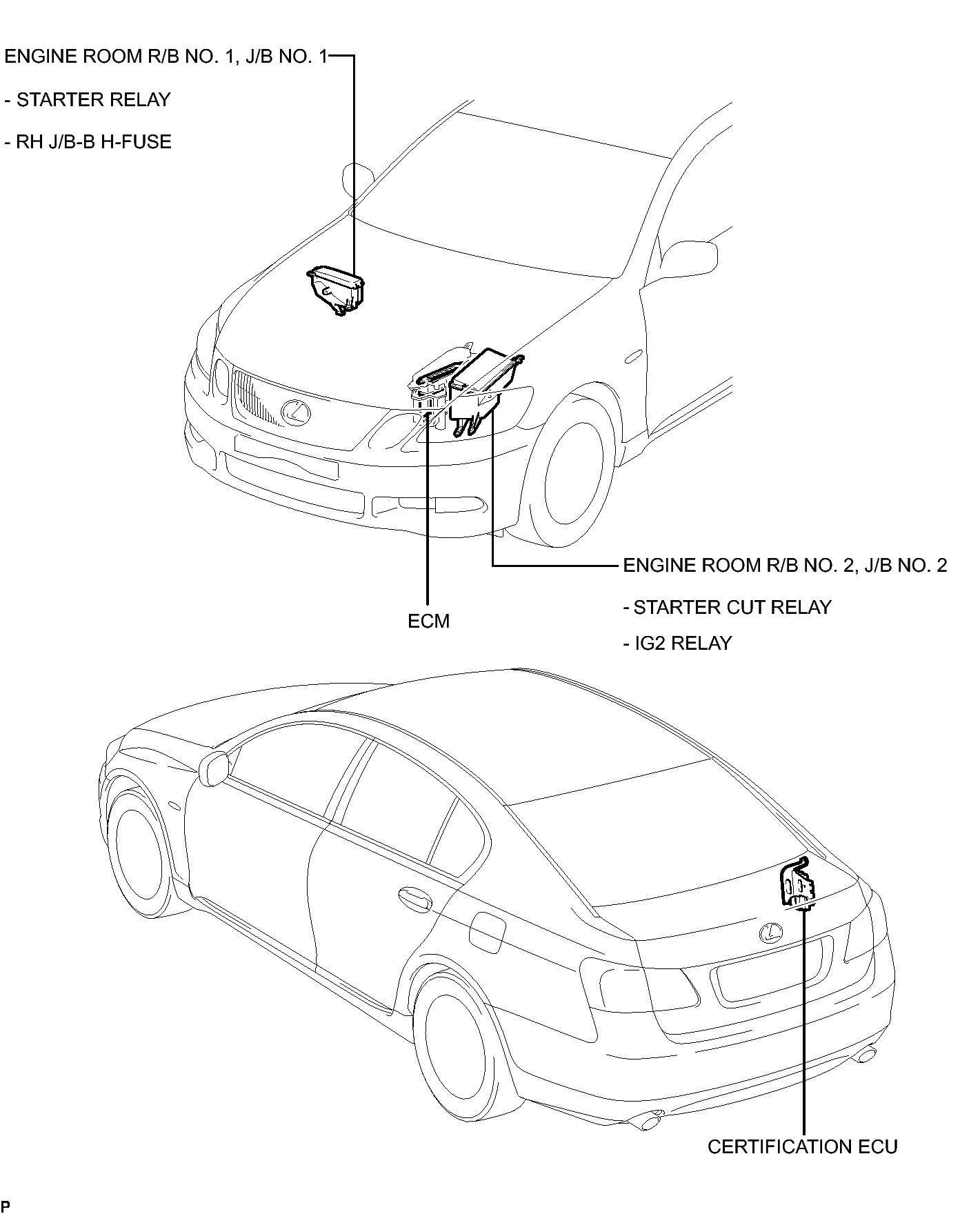

Fig 1: Identifying Smart Access System With Push-Button Start Component Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
