Vehicle Dynamics Integrated Management (2GR-FSE): Notes

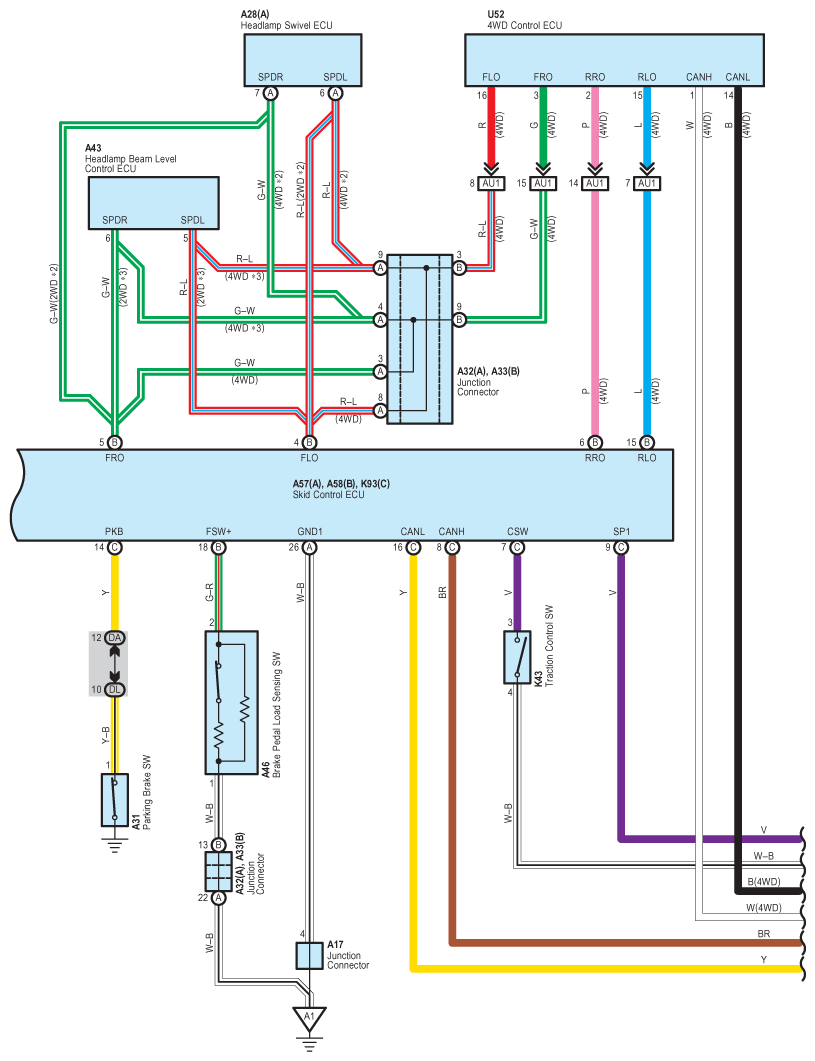

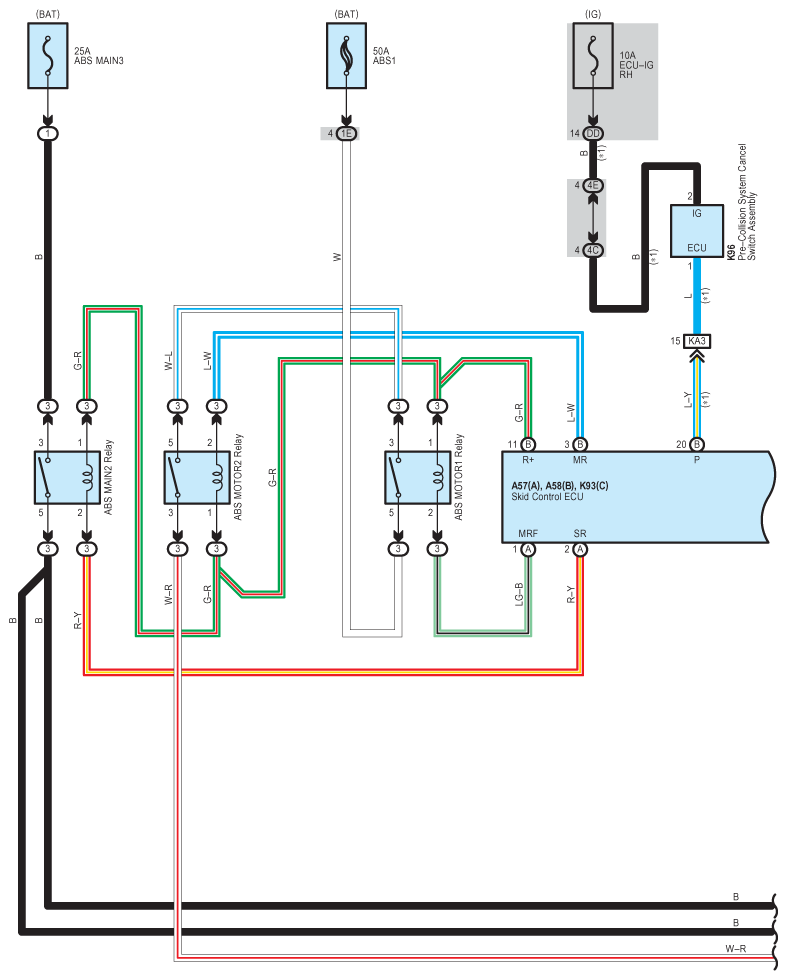

Fig 1: Vehicle Dynamics Integrated Management (2GR-FSE) - Circuit Diagram (1 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

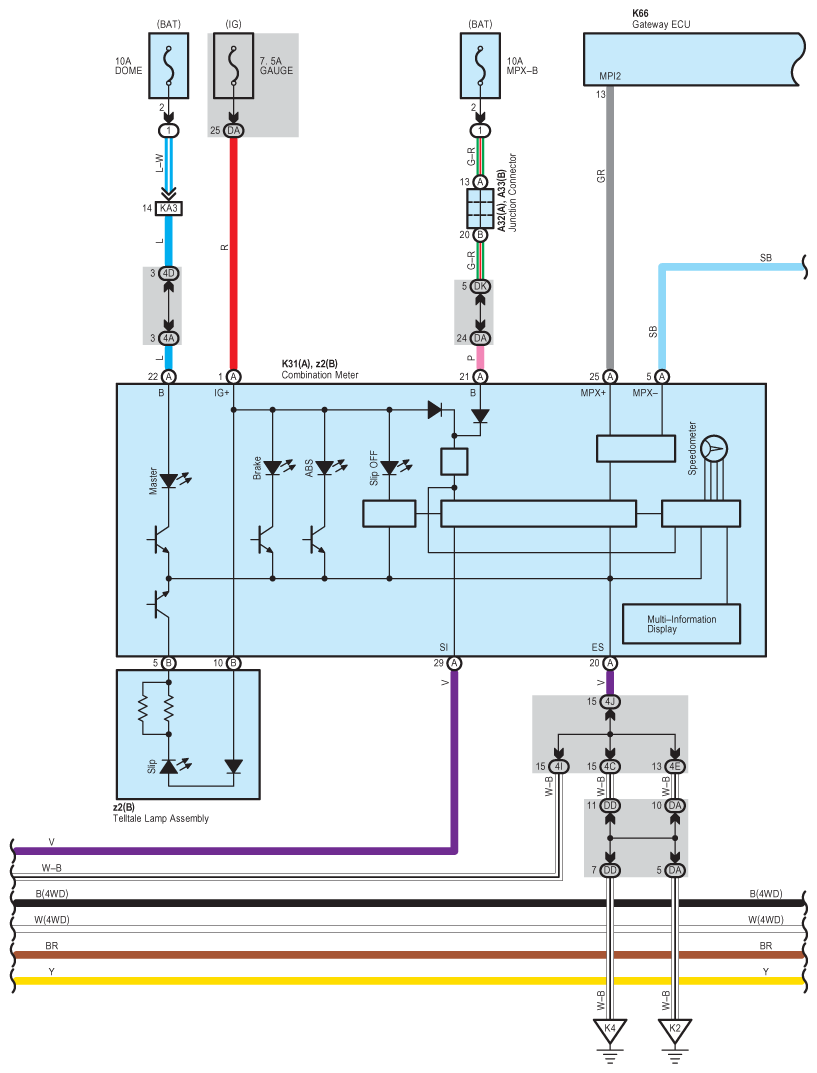

Fig 2: Vehicle Dynamics Integrated Management (2GR-FSE) - Circuit Diagram (2 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

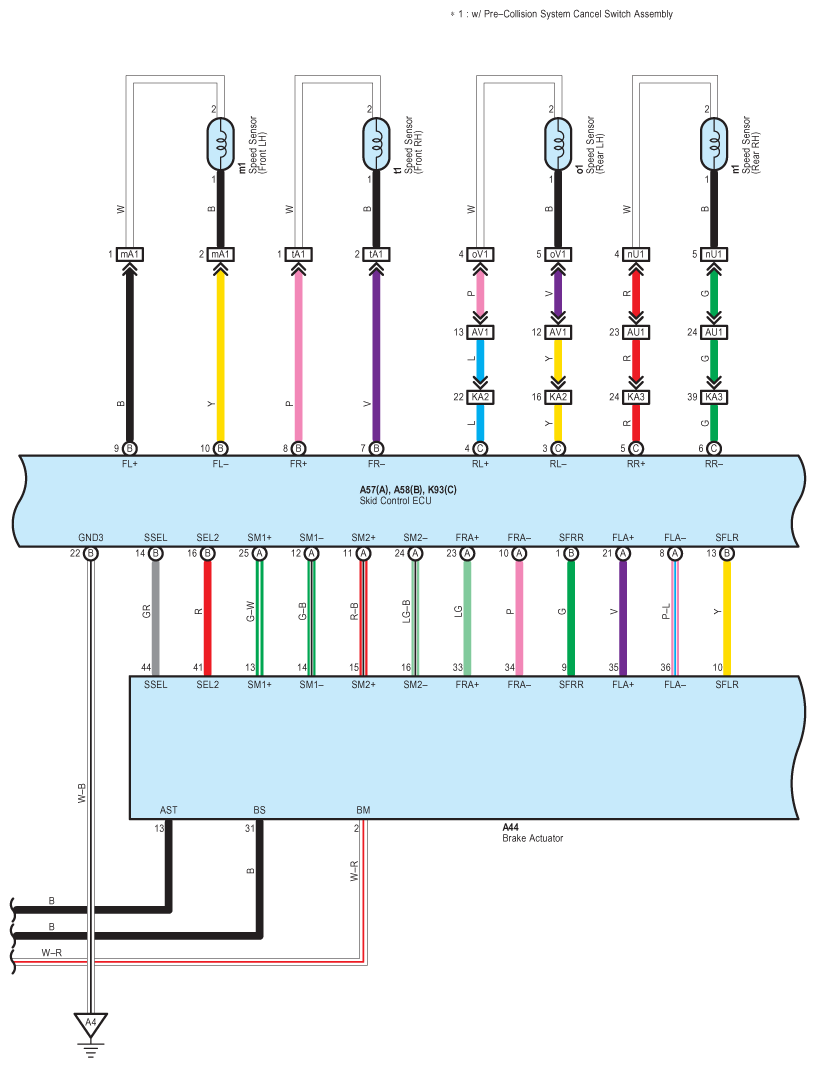

Fig 3: Vehicle Dynamics Integrated Management (2GR-FSE) - Circuit Diagram (3 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

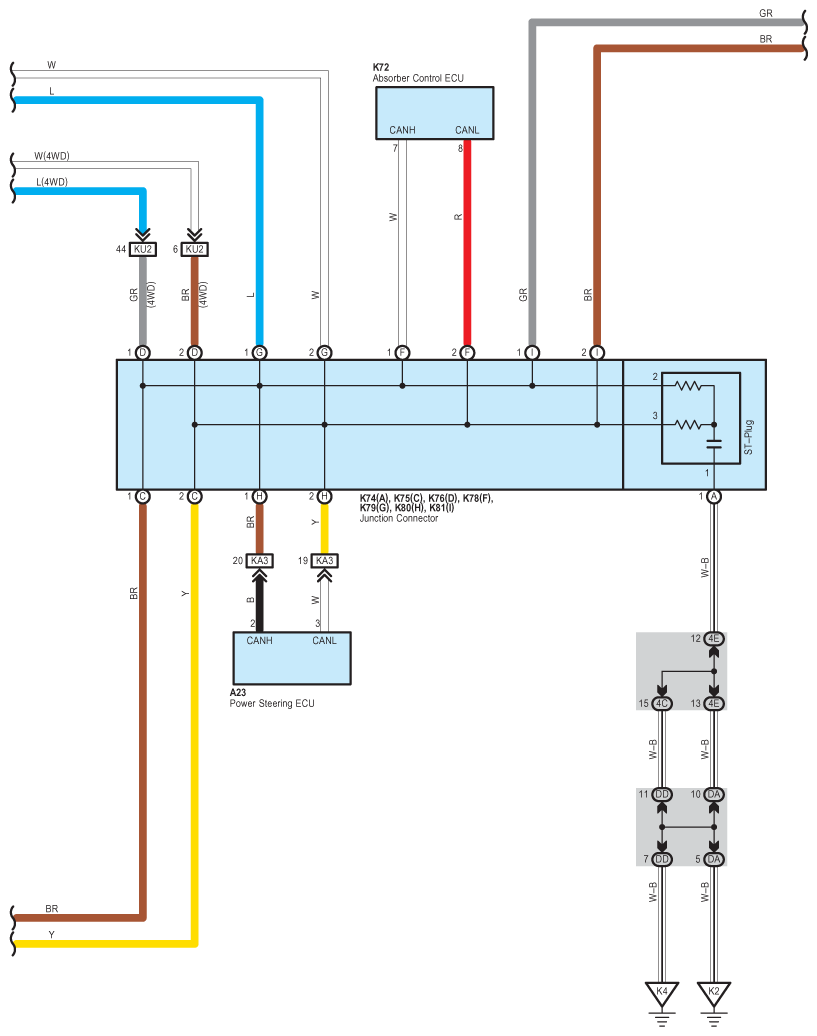

Fig 4: Vehicle Dynamics Integrated Management (2GR-FSE) - Circuit Diagram (4 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

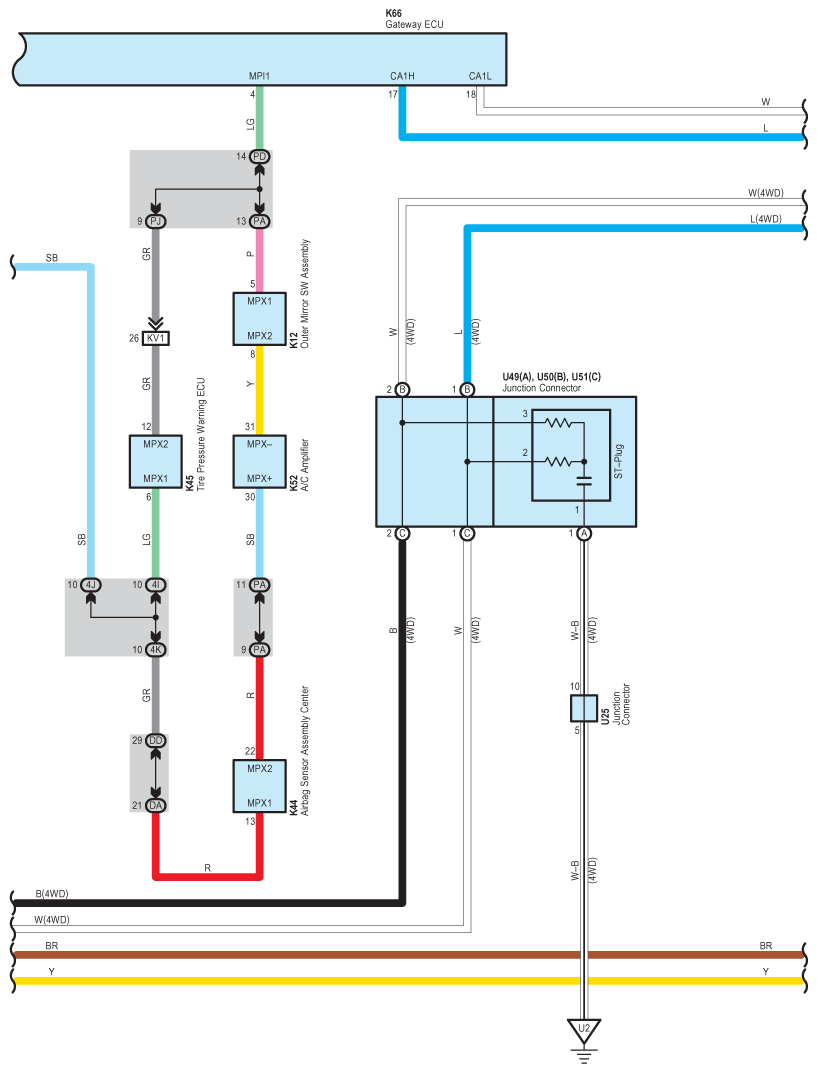

Fig 5: Vehicle Dynamics Integrated Management (2GR-FSE) - Circuit Diagram (5 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

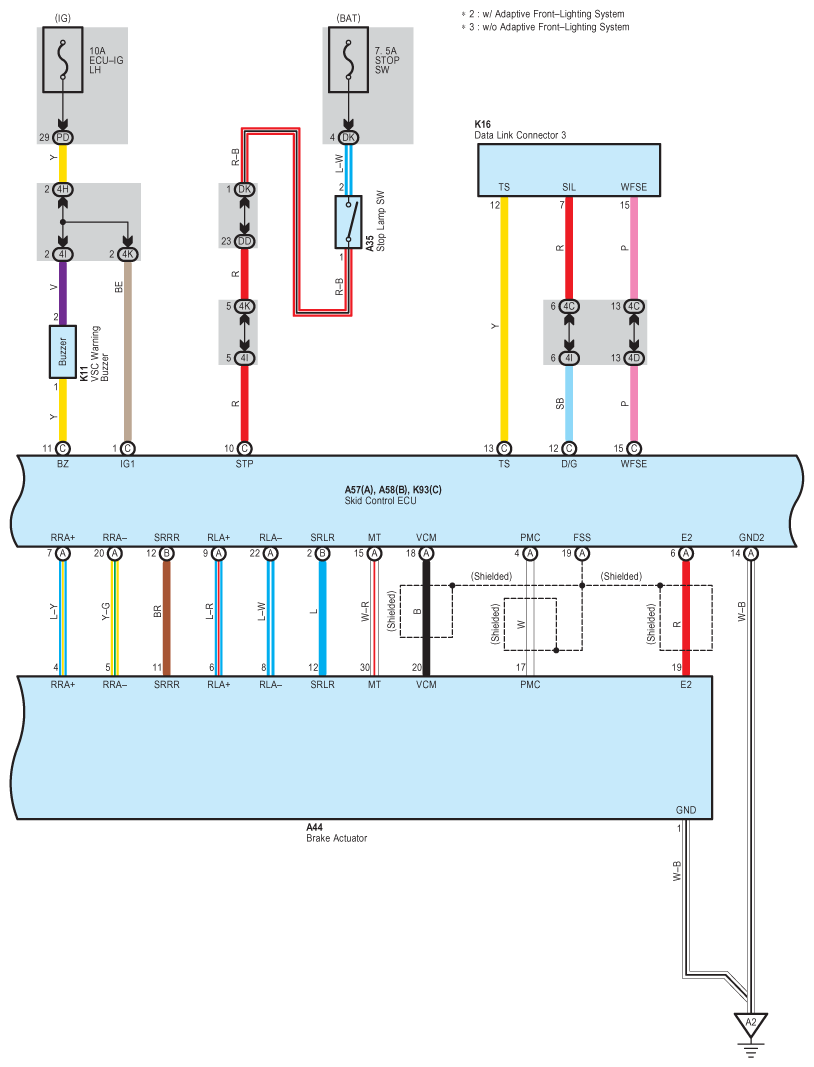

Fig 6: Vehicle Dynamics Integrated Management (2GR-FSE) - Circuit Diagram (6 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

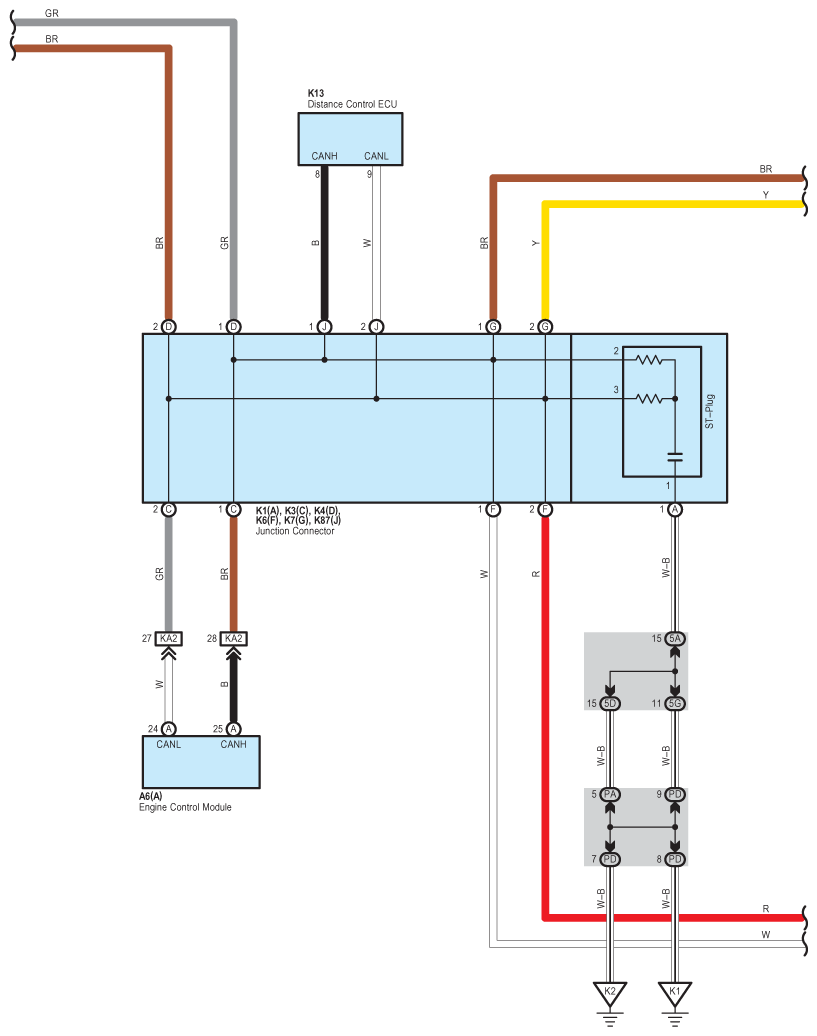

Fig 7: Vehicle Dynamics Integrated Management (2GR-FSE) - Circuit Diagram (7 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

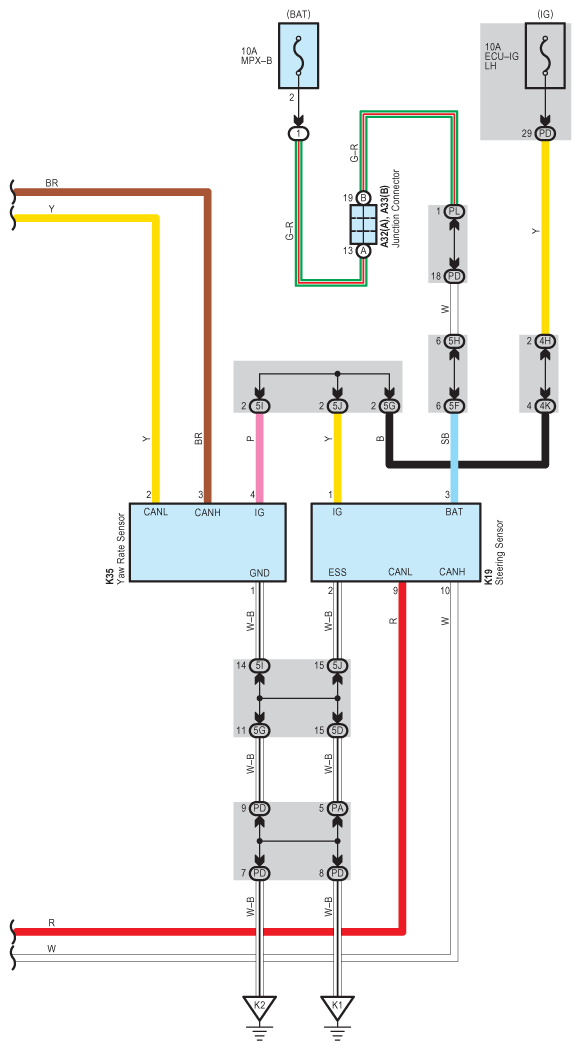

Fig 8: Vehicle Dynamics Integrated Management (2GR-FSE) - Circuit Diagram (8 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Vehicle Dynamics Integrated Management (2GR-FSE) - Circuit Diagram (9 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
