Connector Views

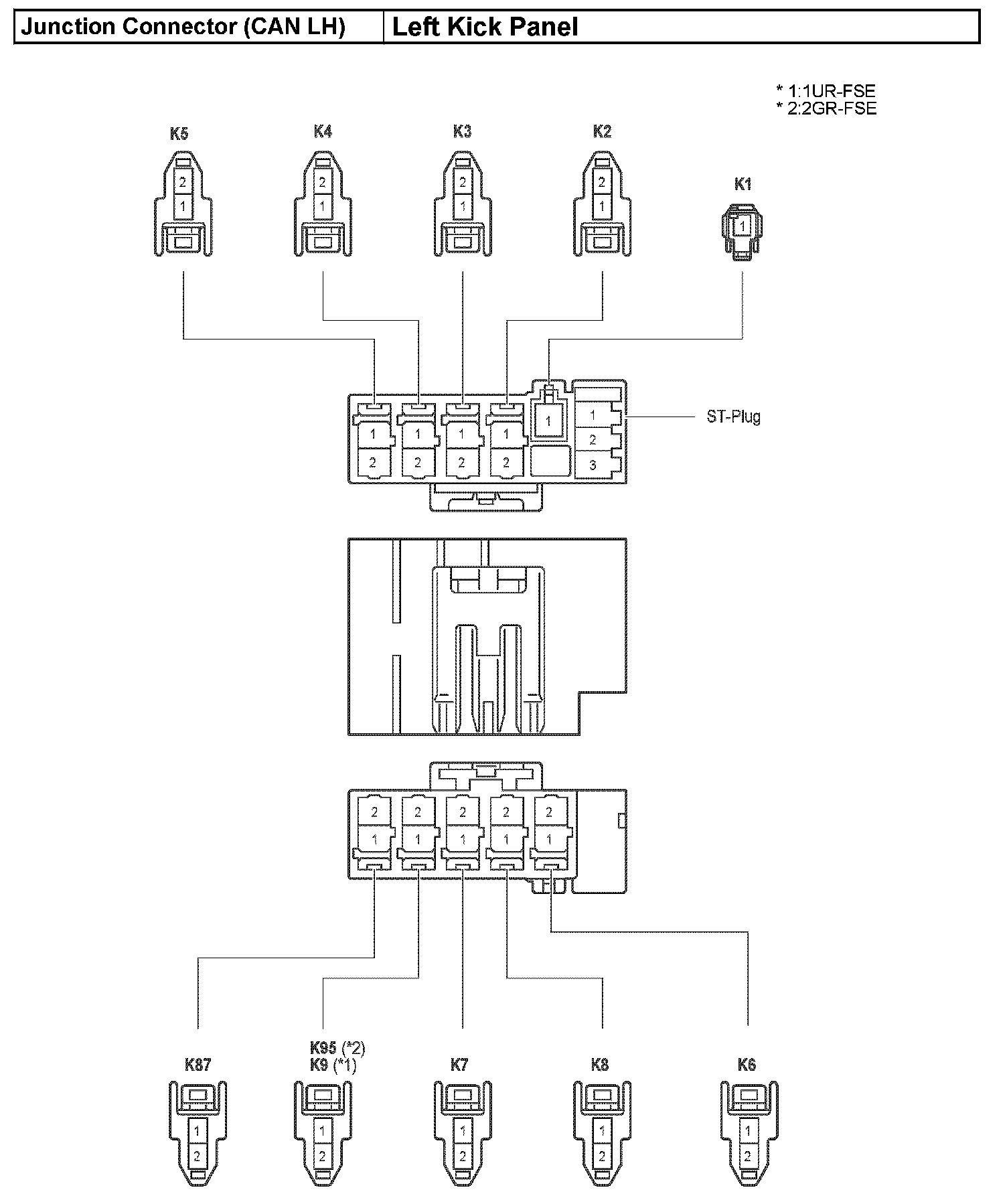

Junction Connector (CAN LH) - Left Kick Panel:

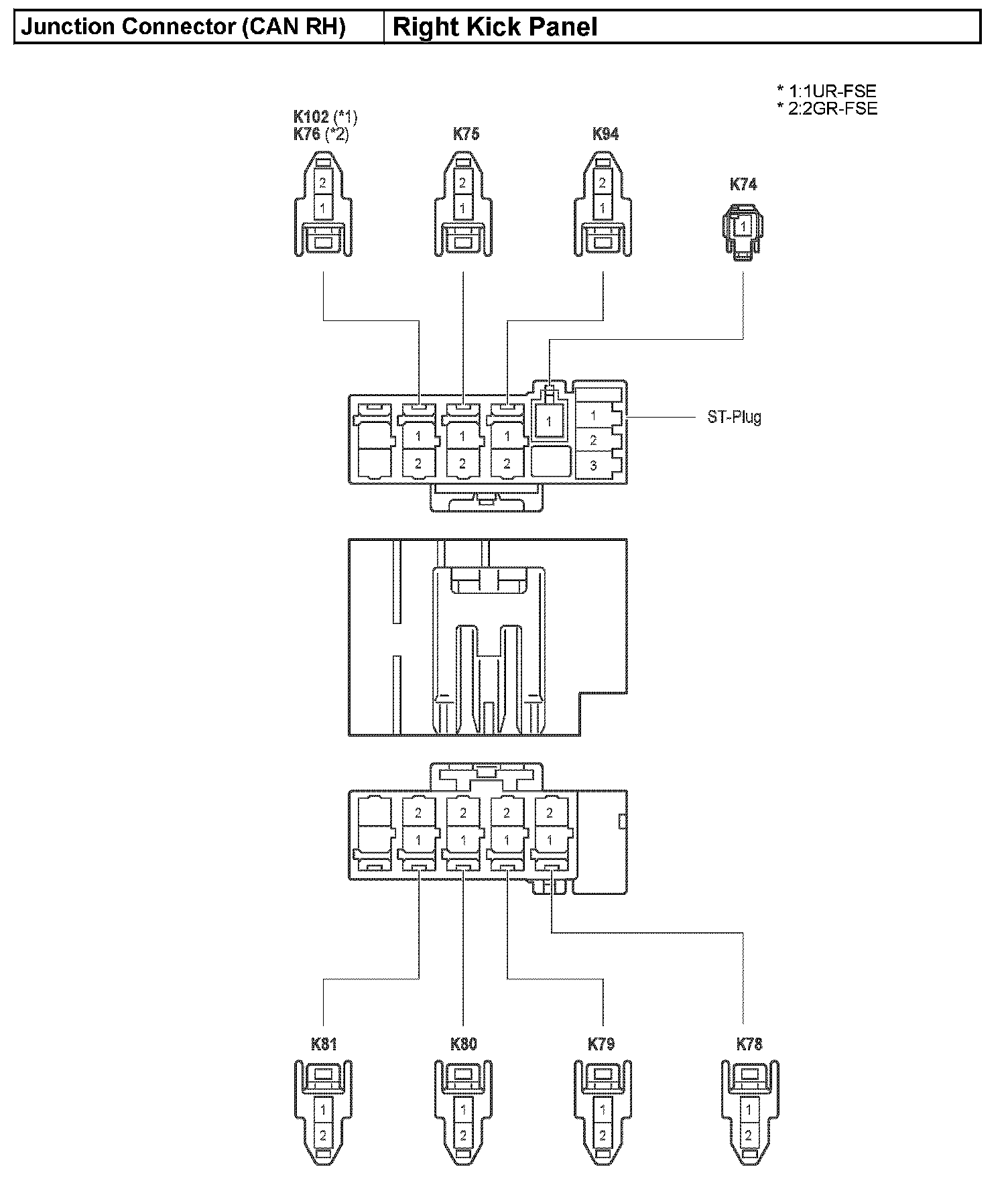

Junction Connector (CAN RH) - Right Kick Panel:

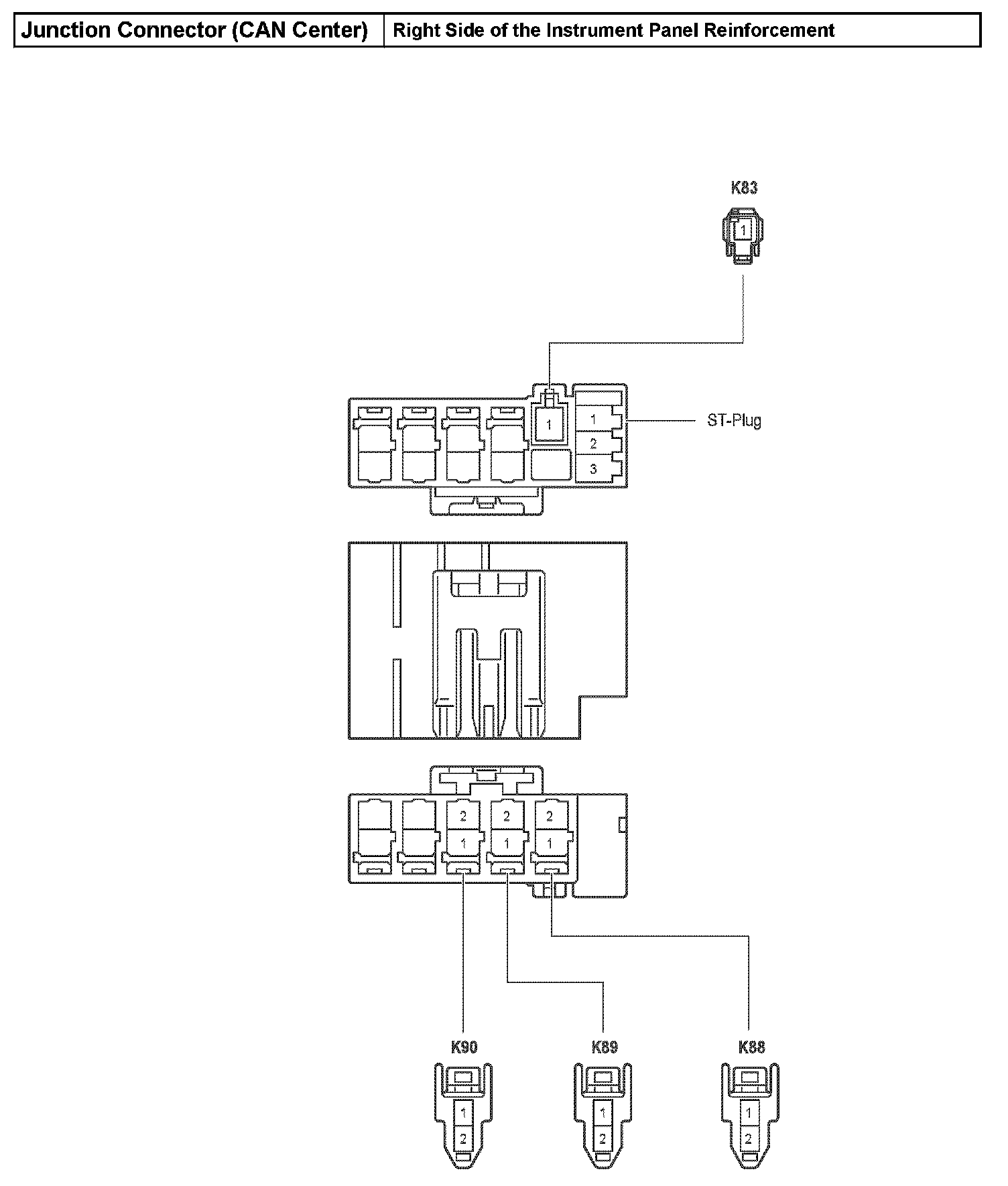

Junction Connector (CAN Center) - Right Side Of The Instrument Panel Reinforcement:

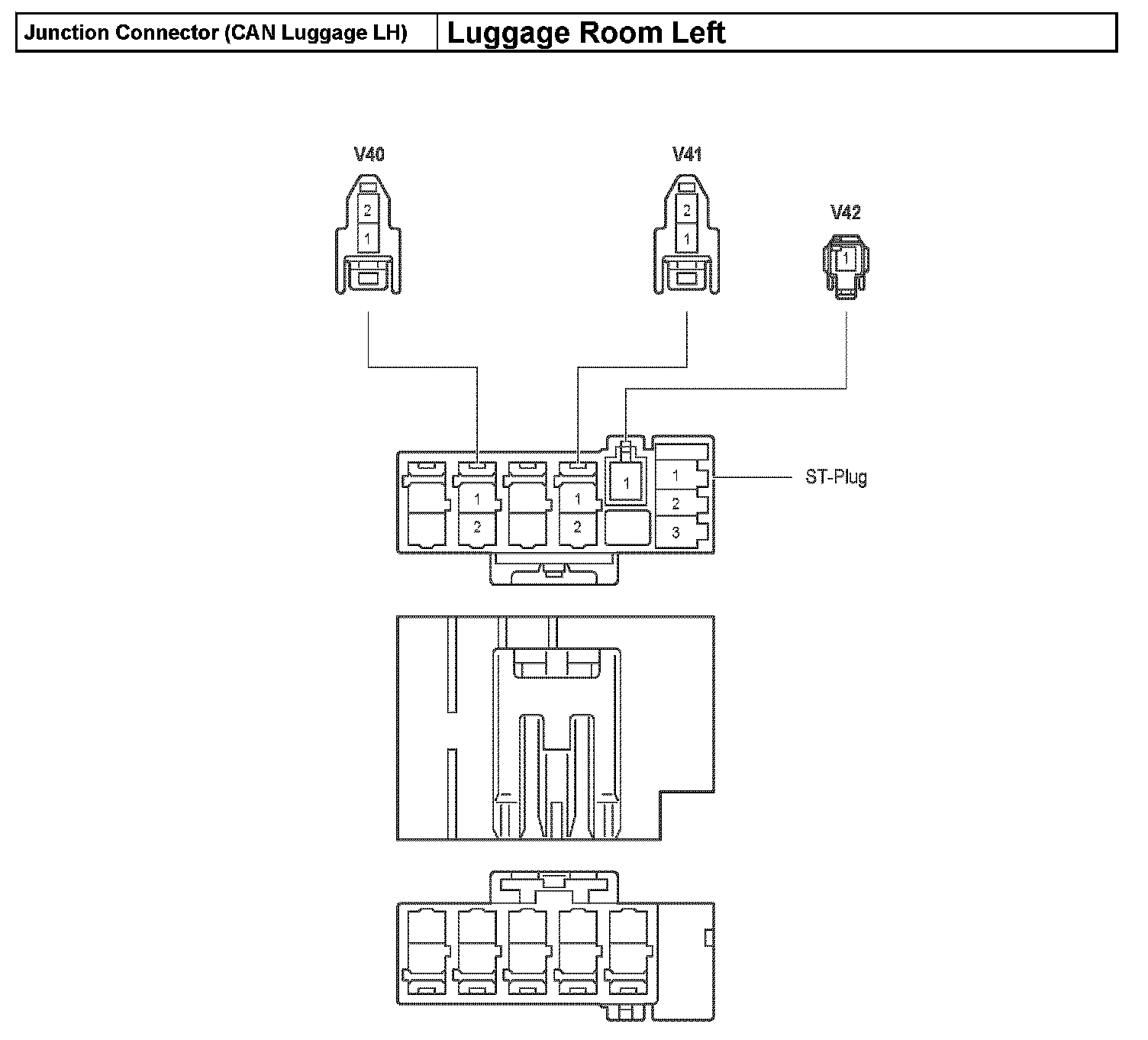

Junction Connector (CAN Luggage LH) - Luggage Room Left:

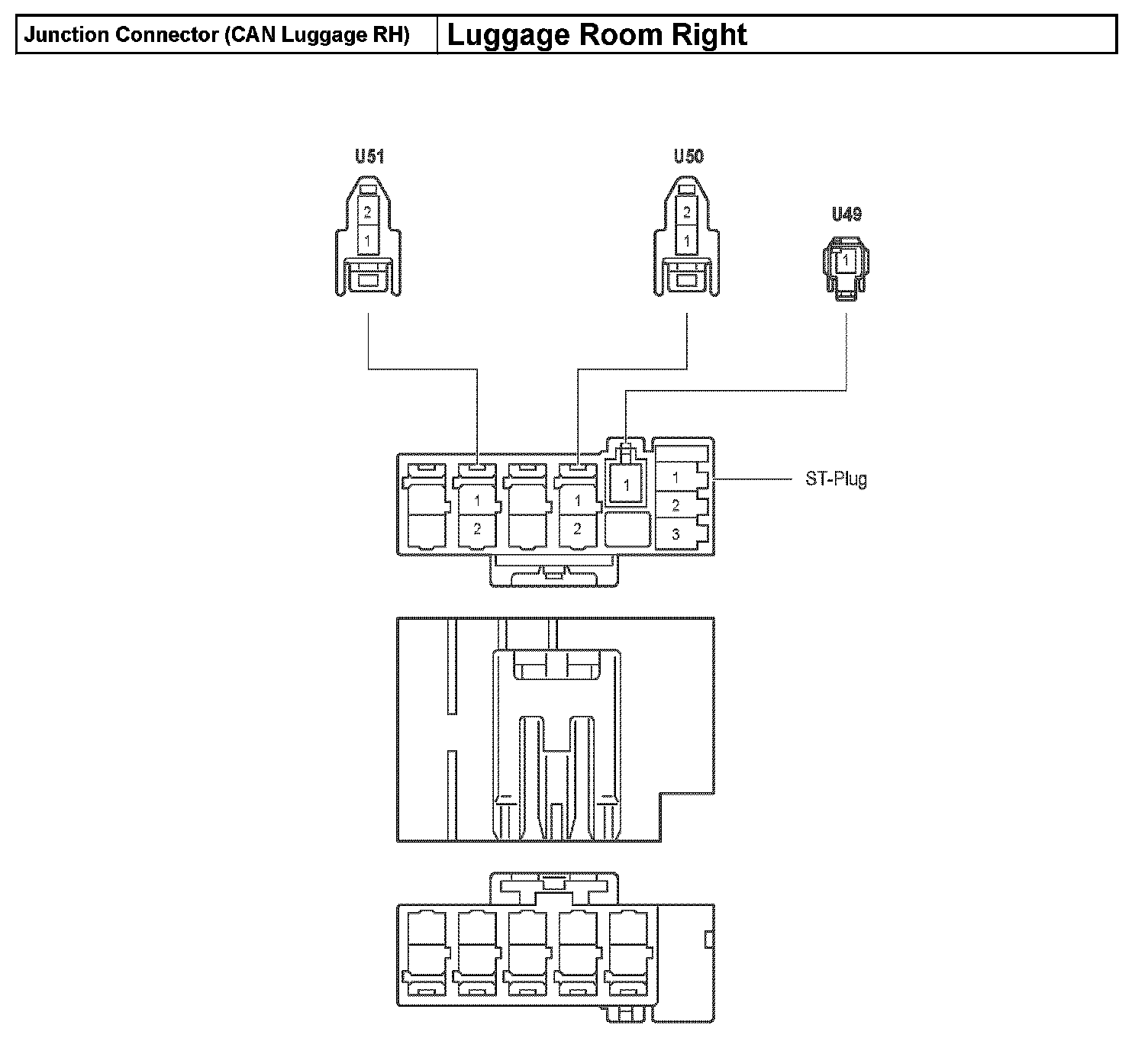

Junction Connector (CAN Luggage RH) - Luggage Room Right:
