Removal





CRUISE CONTROL: MILLIMETER WAVE RADAR SENSOR: REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal

2. REMOVE FRONT BUMPER ASSEMBLY Removal

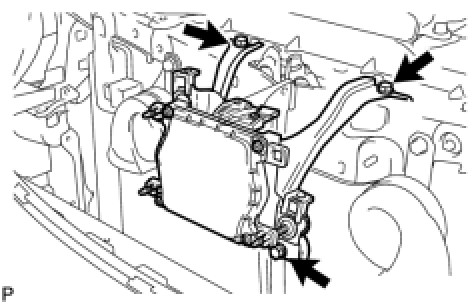

3. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

(a) Disconnect the sensor connector.

(b) Remove the 3 bolts and millimeter radar sensor assembly.
