Programming and Relearning





LIGHTING: LIGHTING SYSTEM: CUSTOMIZE PARAMETERS

HINT

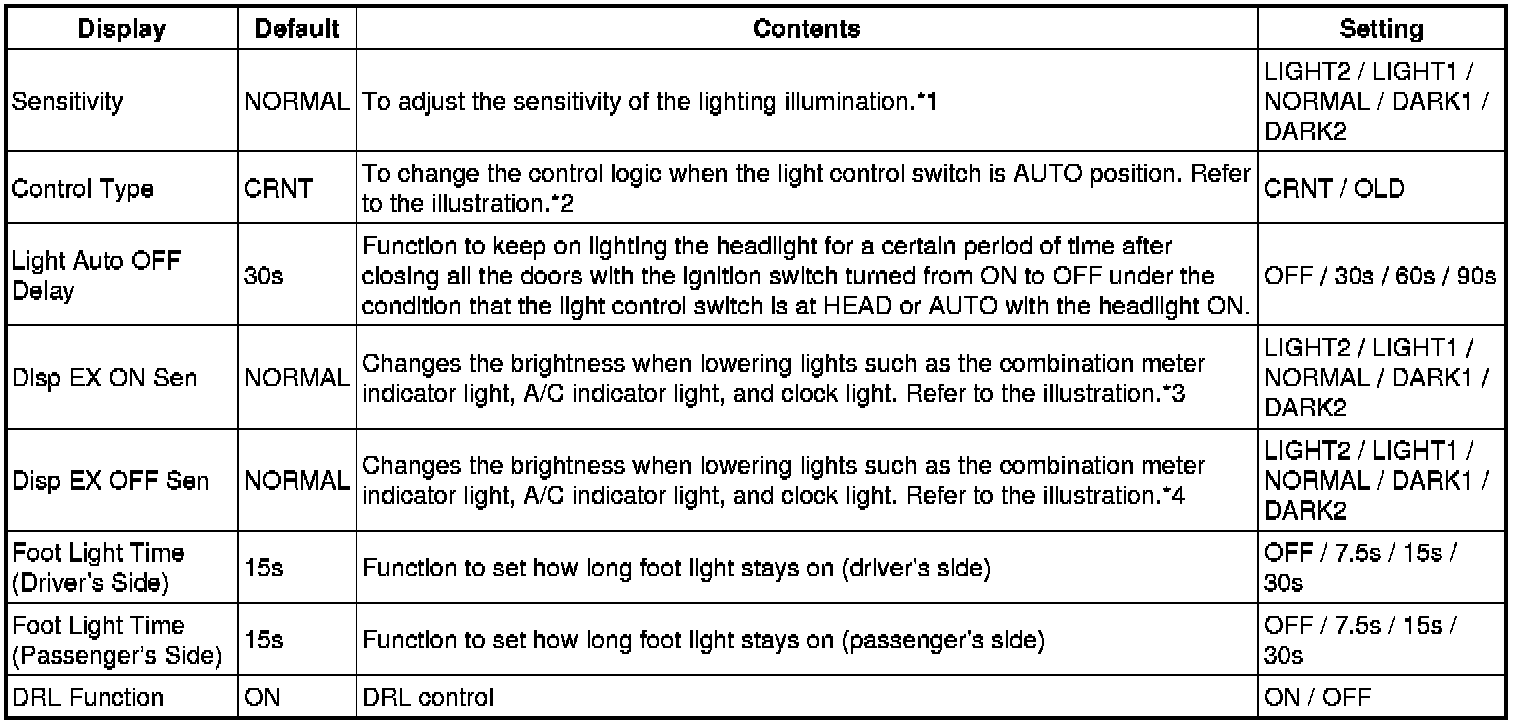

The followings are the possible items to be customized.

NOTICE:
* After confirming whether the items of the customer's request is applicable or not for the customized items, perform the customize operation.
* Be sure to record the current value before customizing.
* In case of performing the troubleshooting, pay attention as there is a possibility that the function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)






HINT
Sensitivity adjustment can hardly be confirmed. Check by driving the customer's vehicle.













HINT

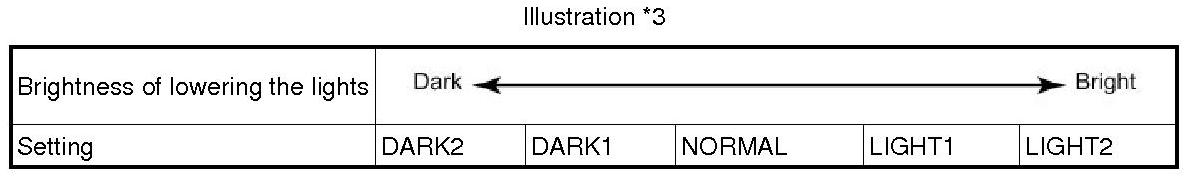

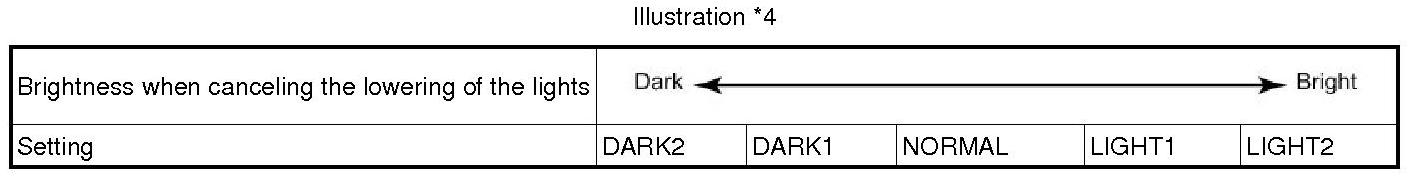

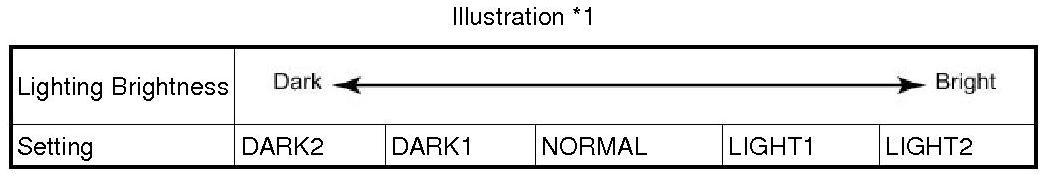

**1: The new one has the logic to light up two times brighter than the old logic.

**2: Delay time until the headlight is turned on when it suddenly gets dark.
