Fuse Block

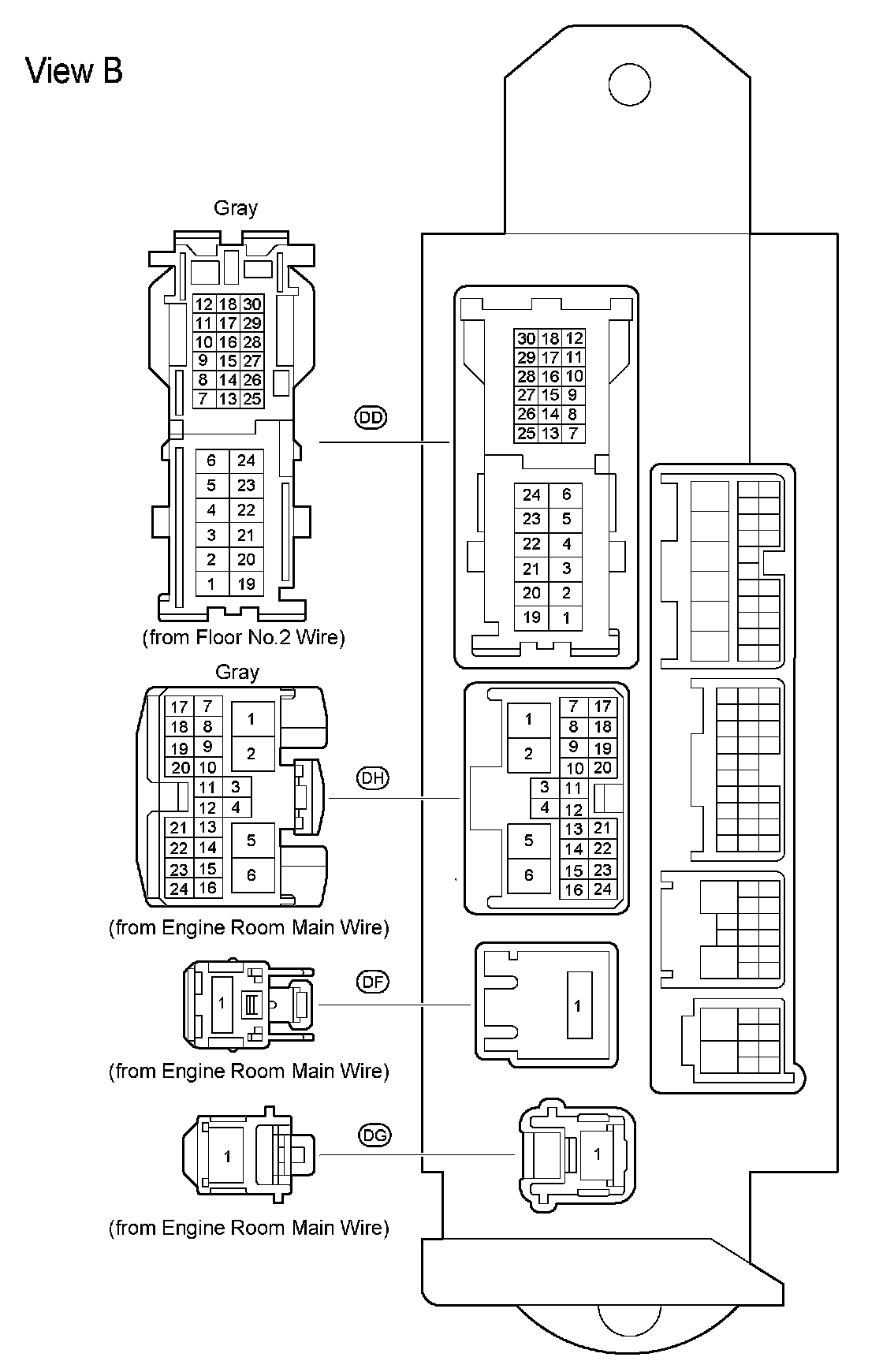

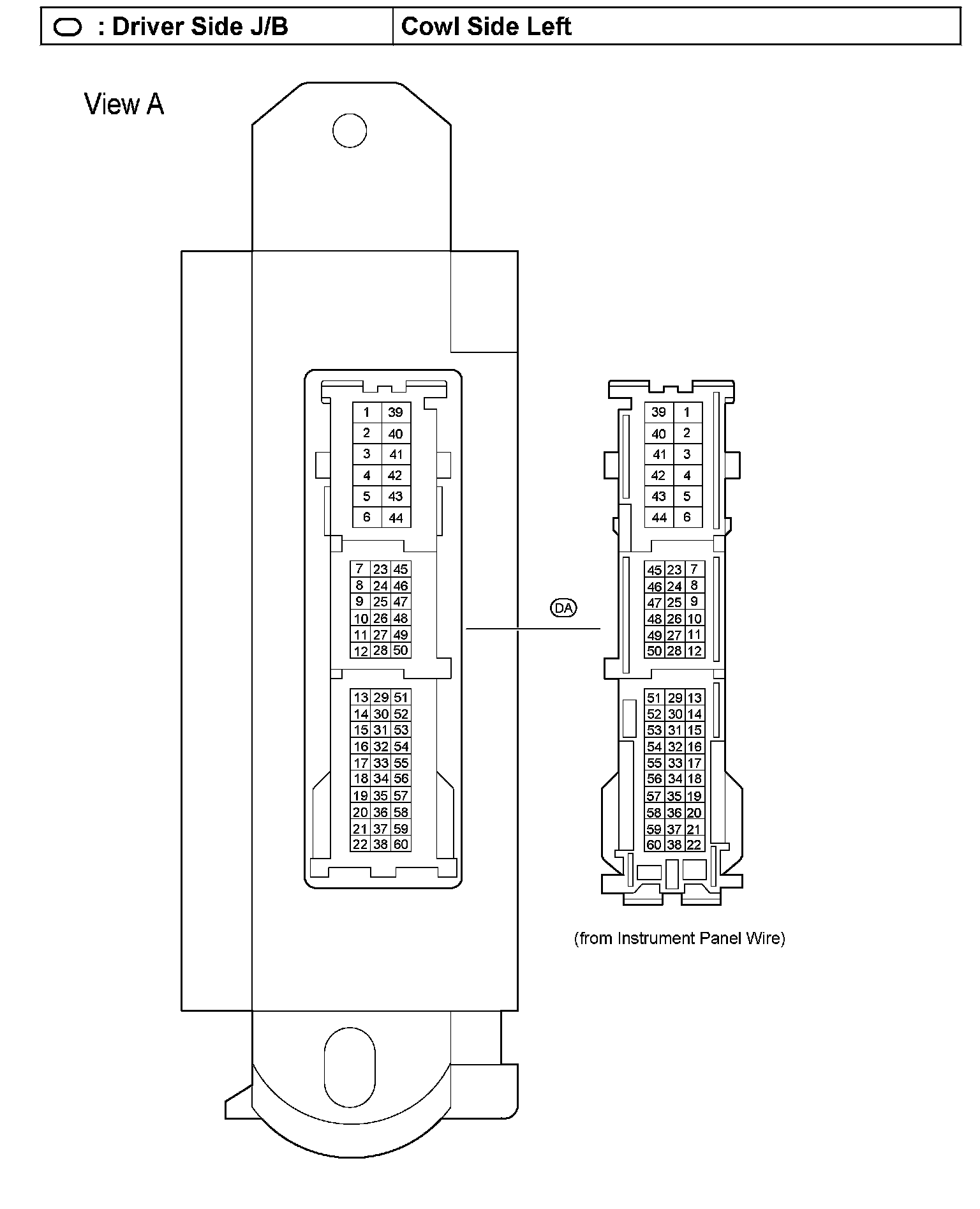

Driver Side J/B - Cowl Side Left:

Driver Side J/B - Cowl Side Left:

Driver Side J/B - Cowl Side Left:

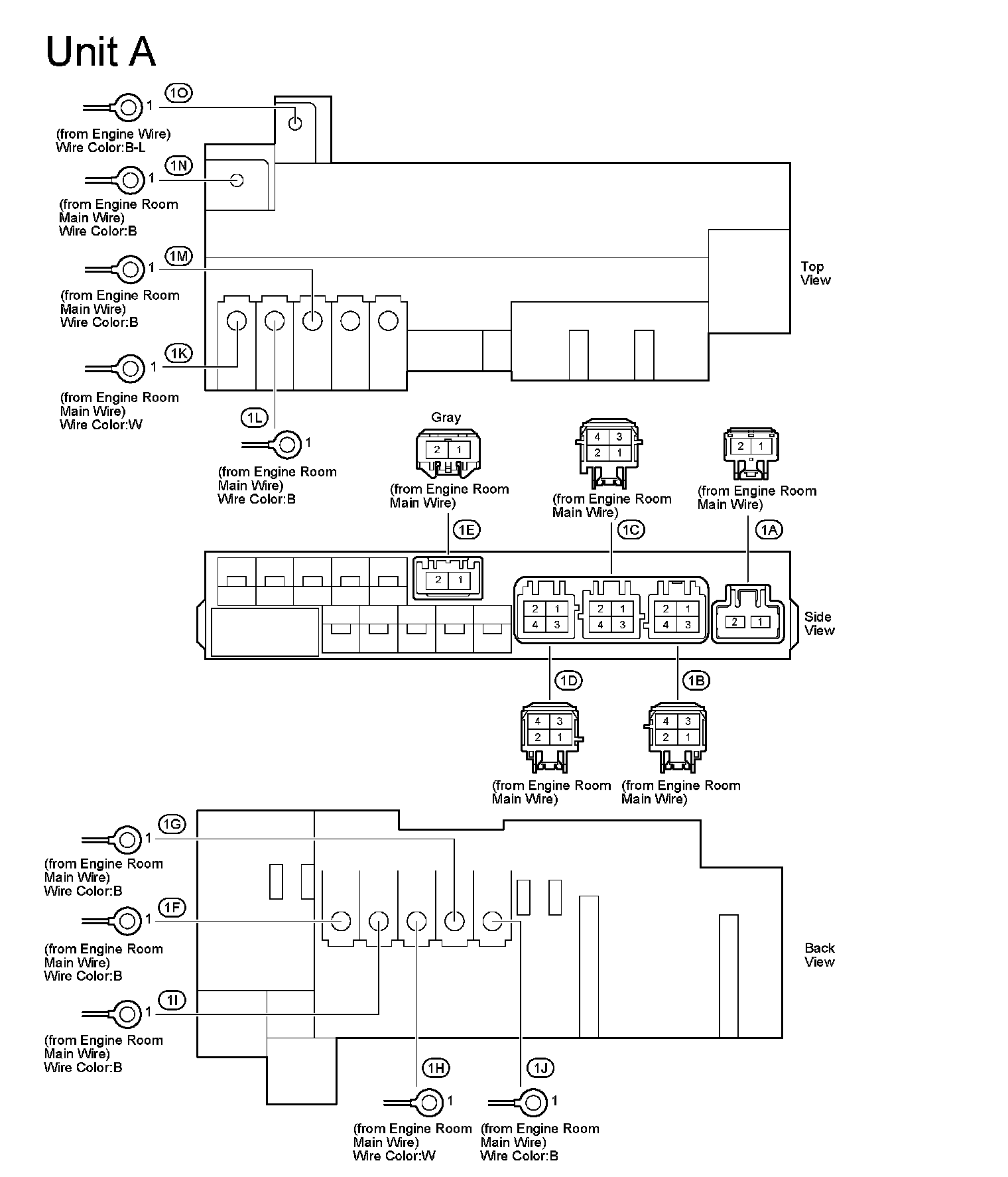

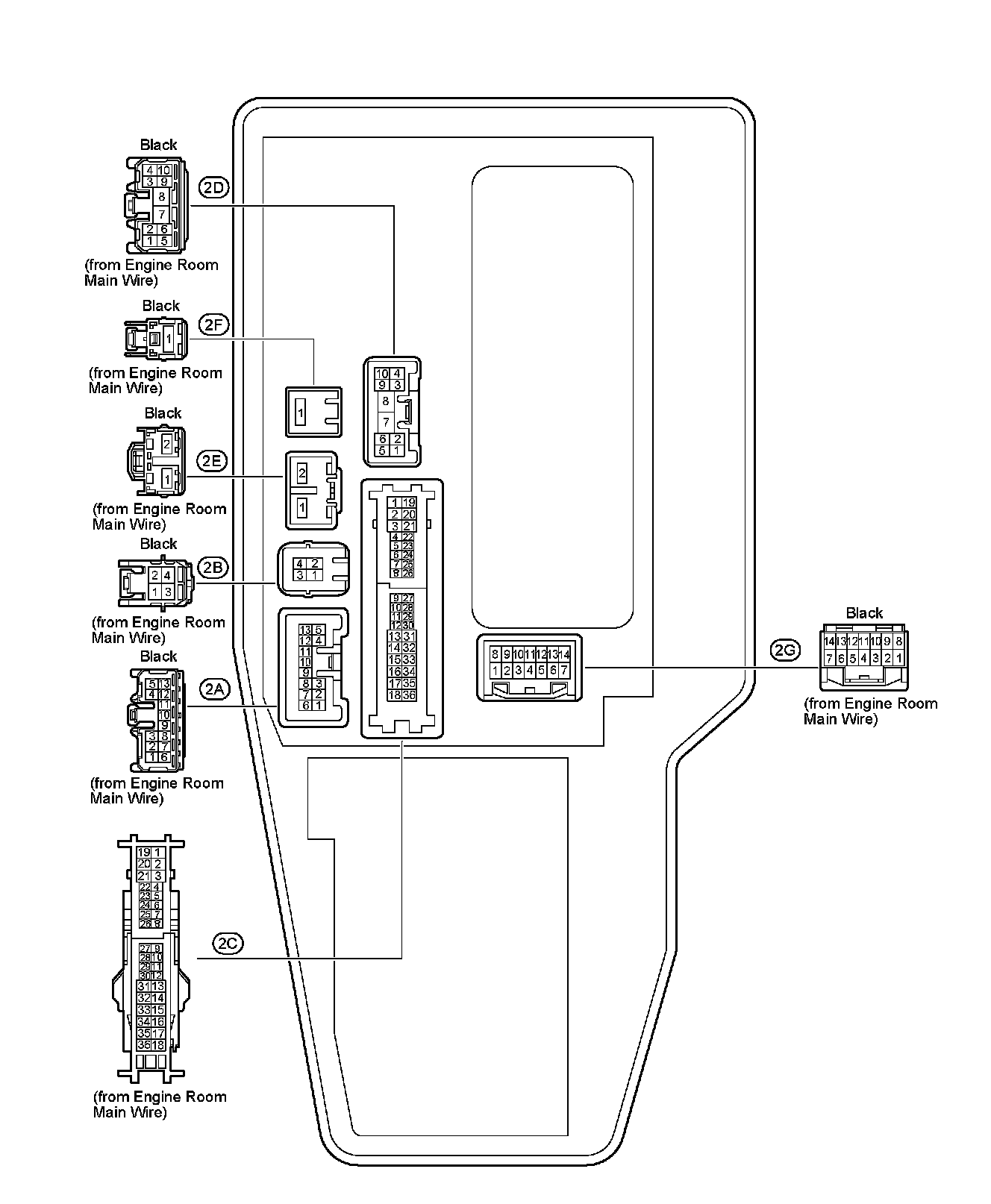

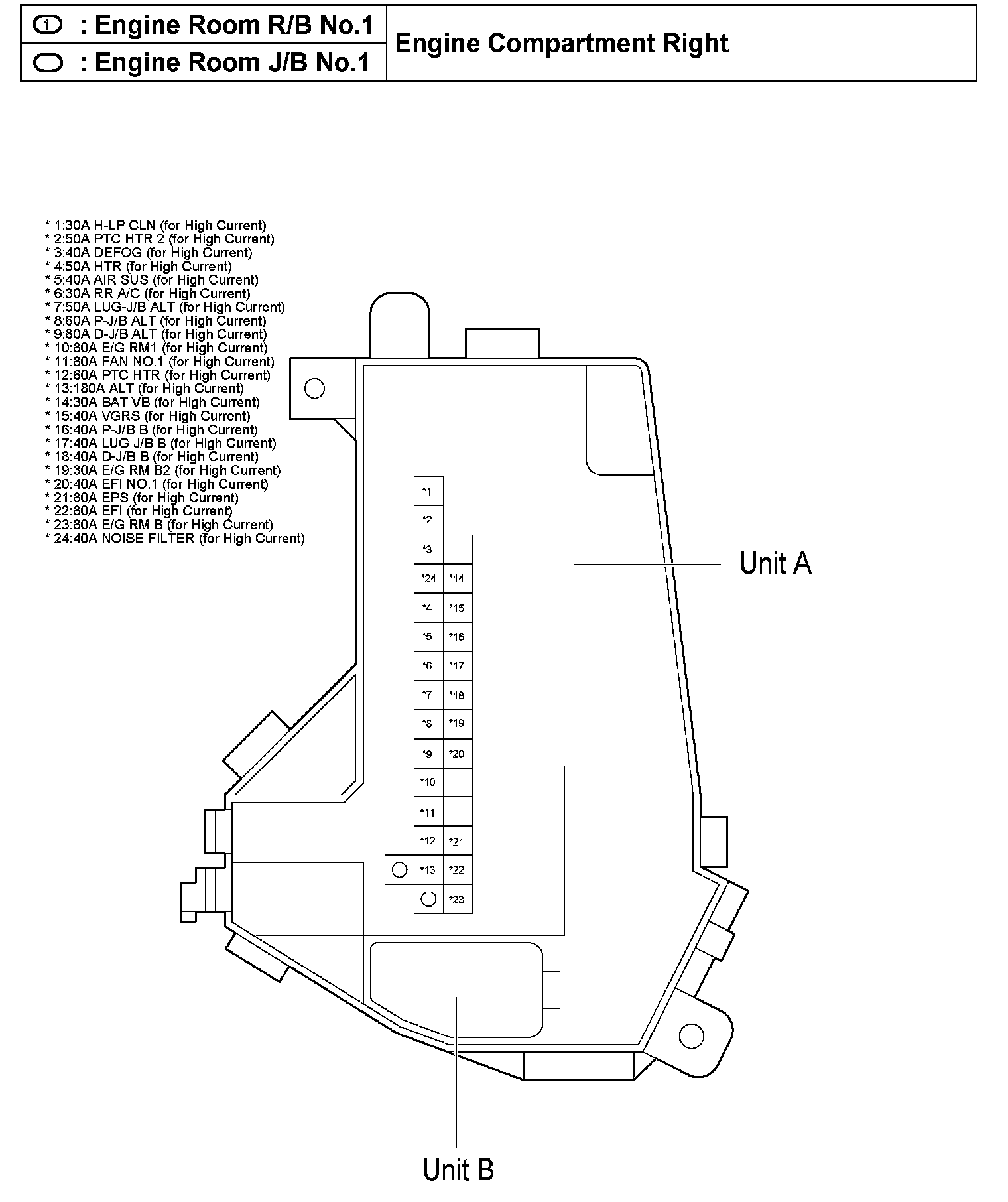

Engine Room R/B No.1/Engine Room J/B No.1 - Engine Compartment Right:

Engine Room R/B No.1/Engine Room J/B No.1 - Engine Compartment Right:

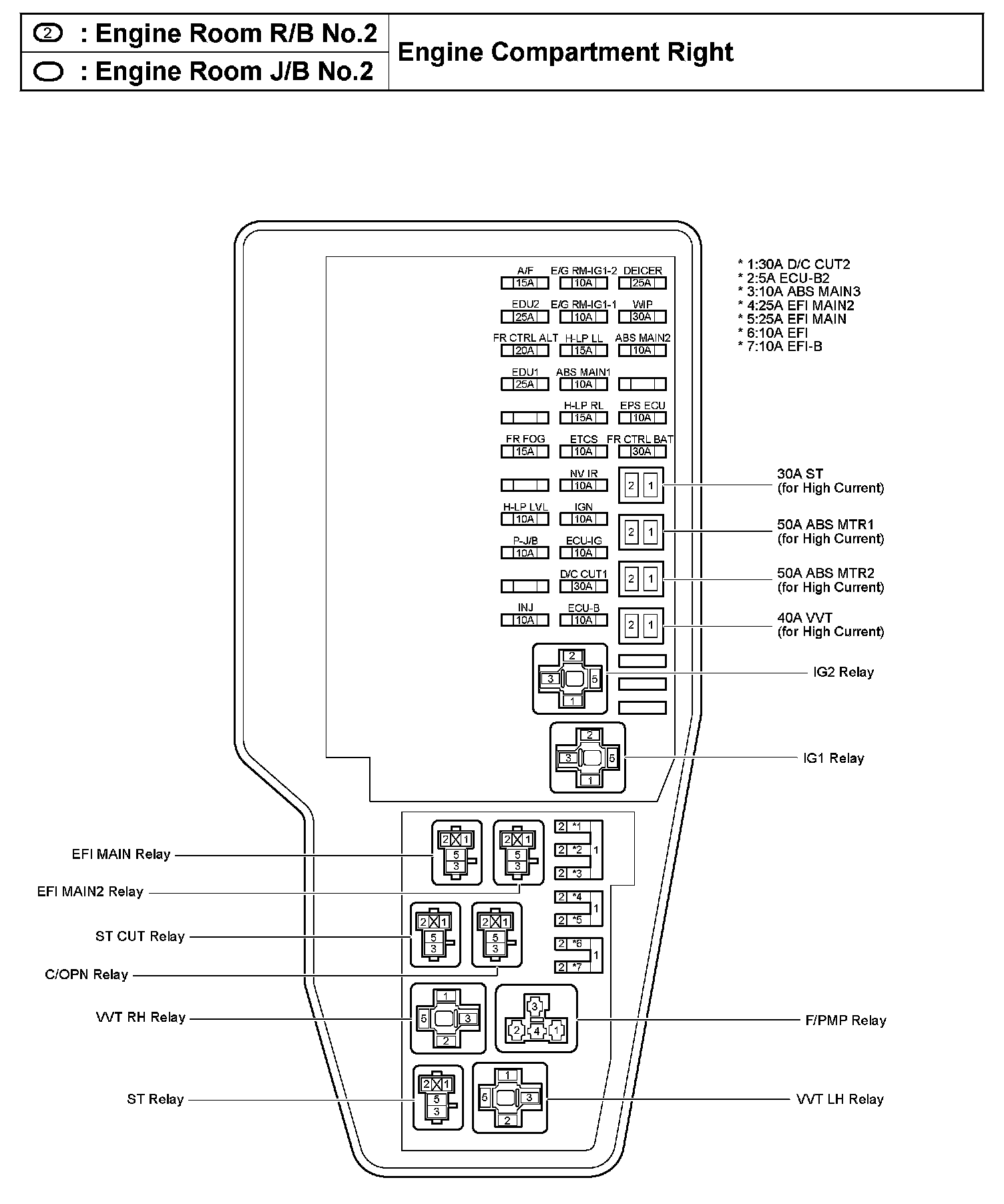

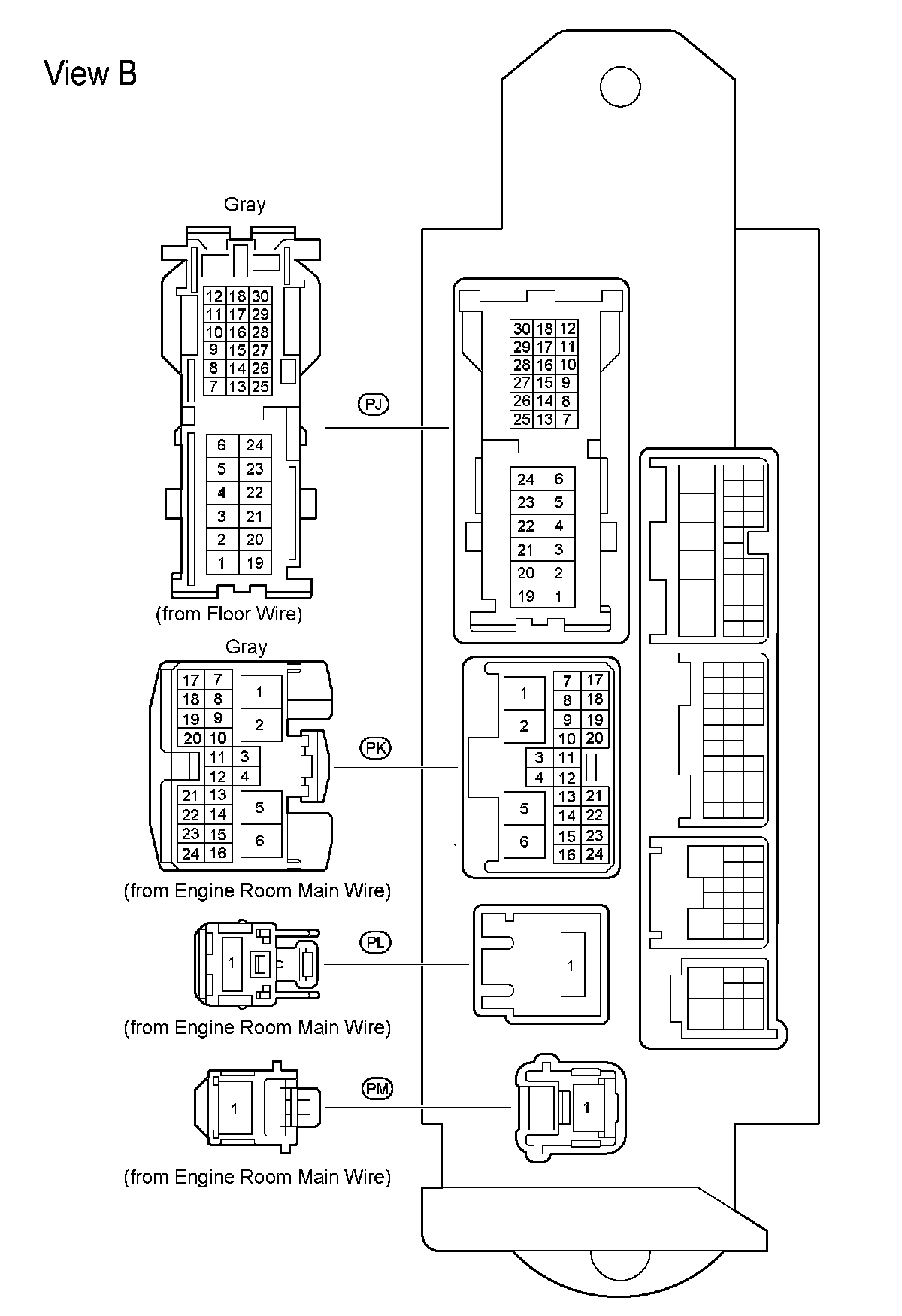

Engine Room R/B No.2/Engine Room J/B No.2 - Engine Compartment Right:

Engine Room R/B No.2/Engine Room J/B No.2 - Engine Compartment Right:

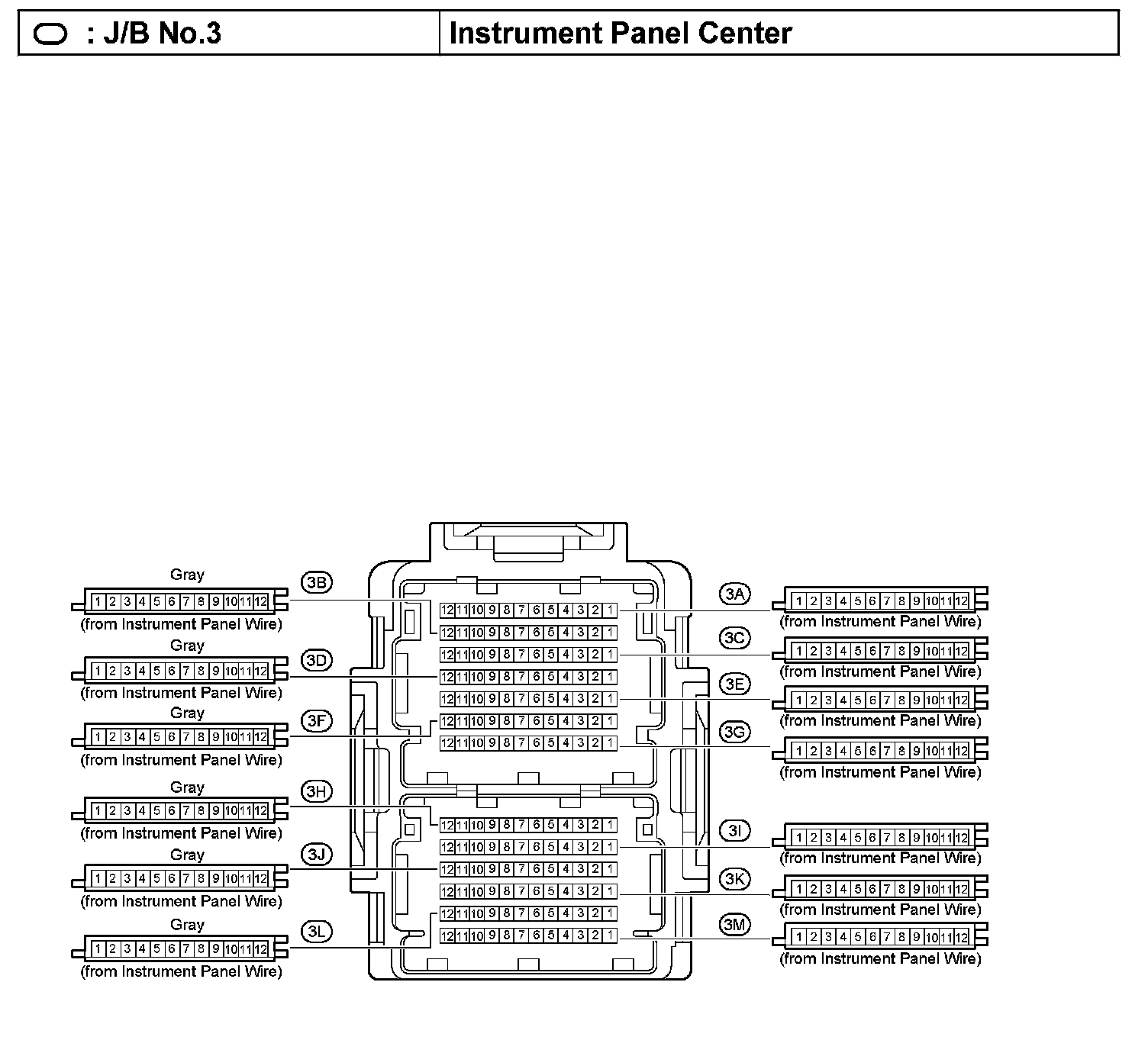

J/B No.3 - Instrument Panel Center:

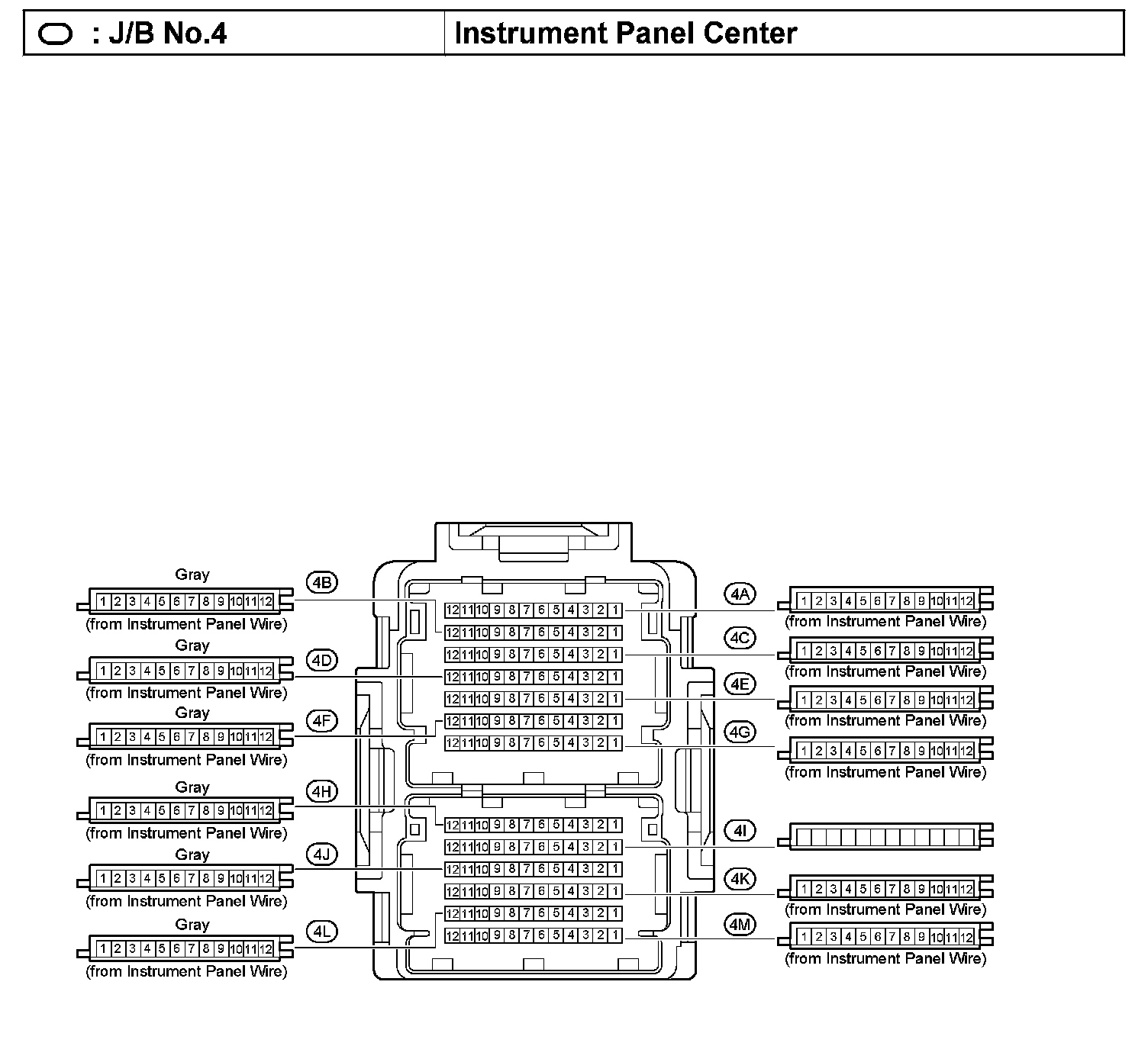

J/B No.4 - Instrument Panel Center:

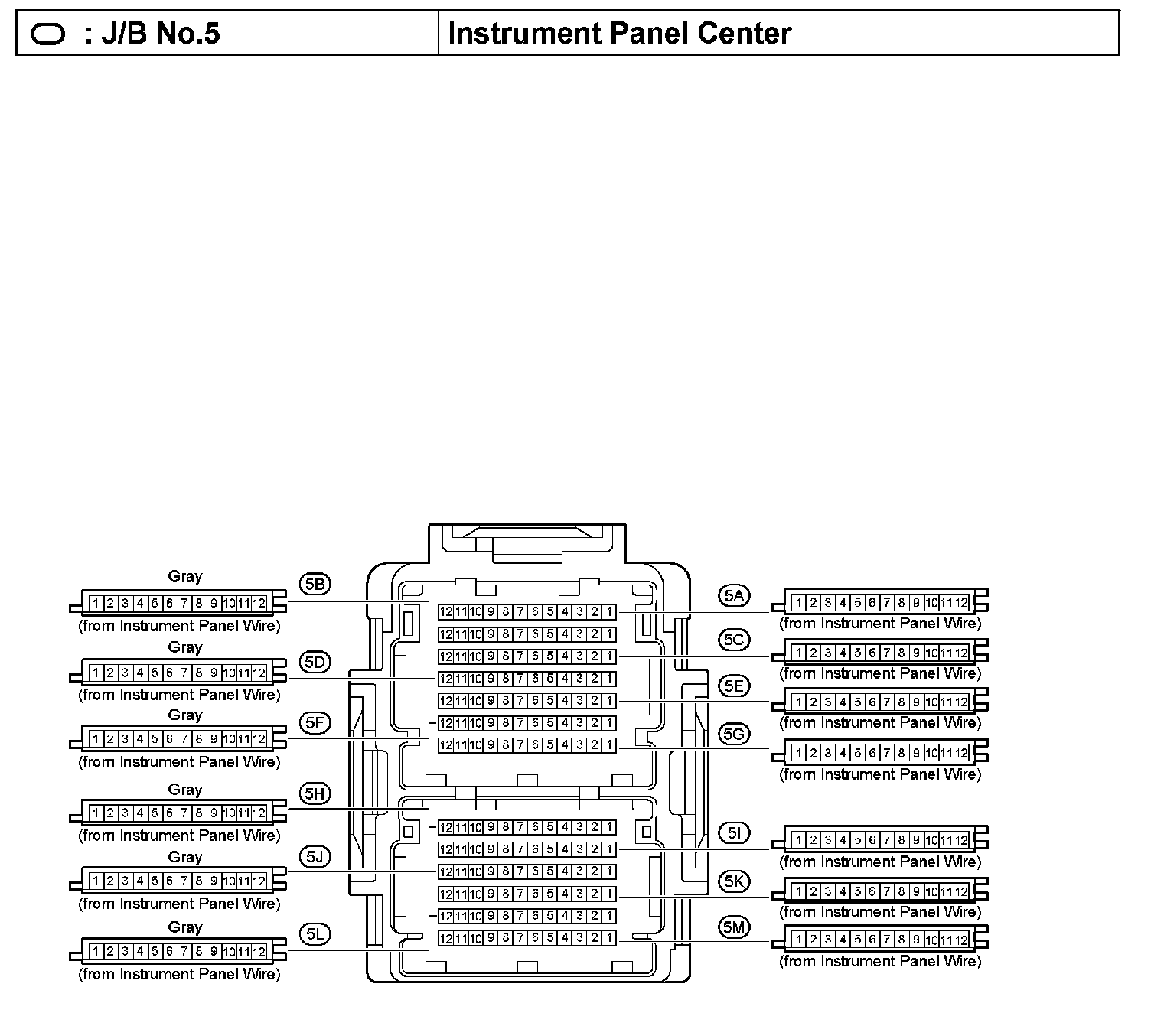

J/B No.5 - Instrument Panel Center:

Junction Connector (CAN) - Luggage Room Right:

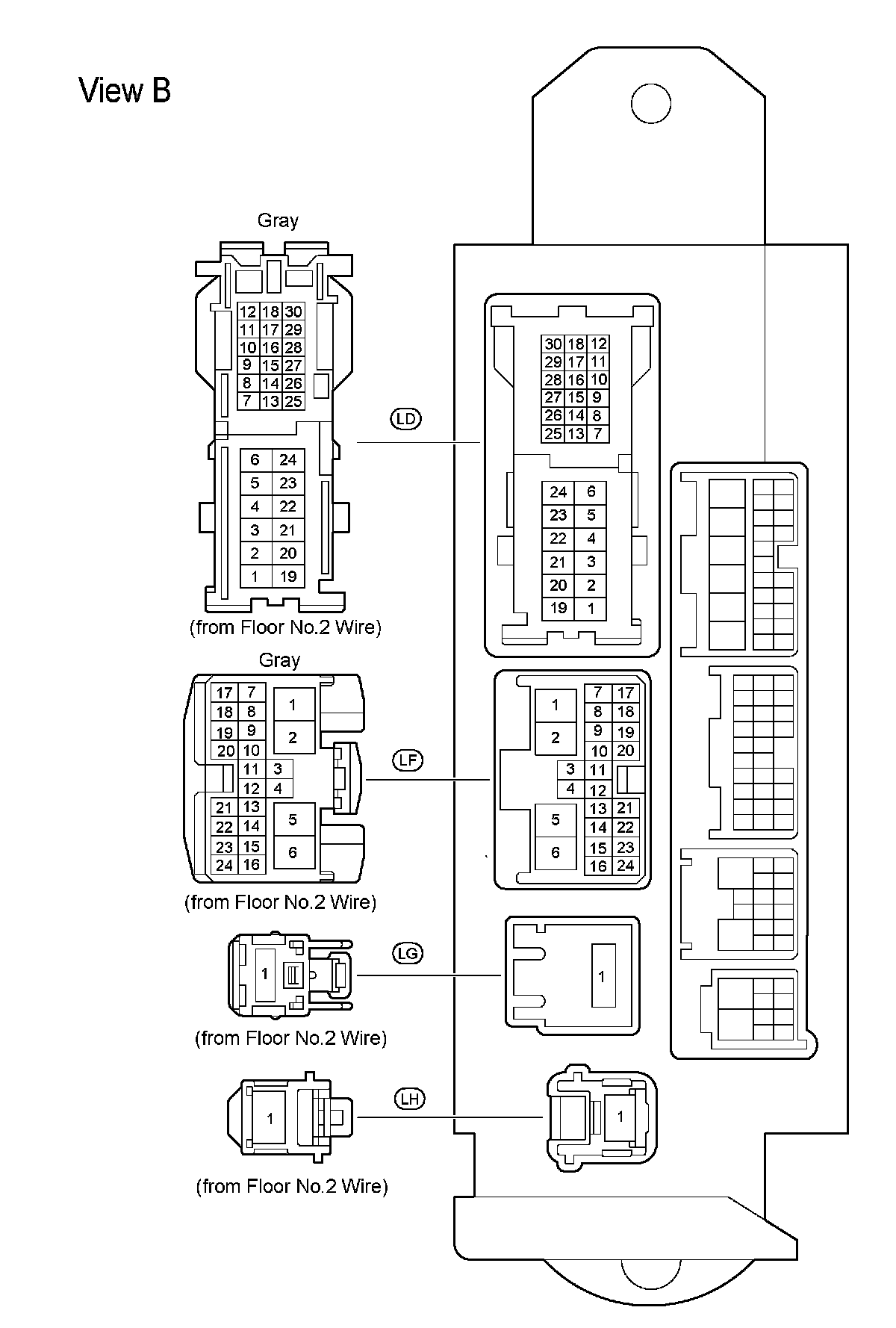

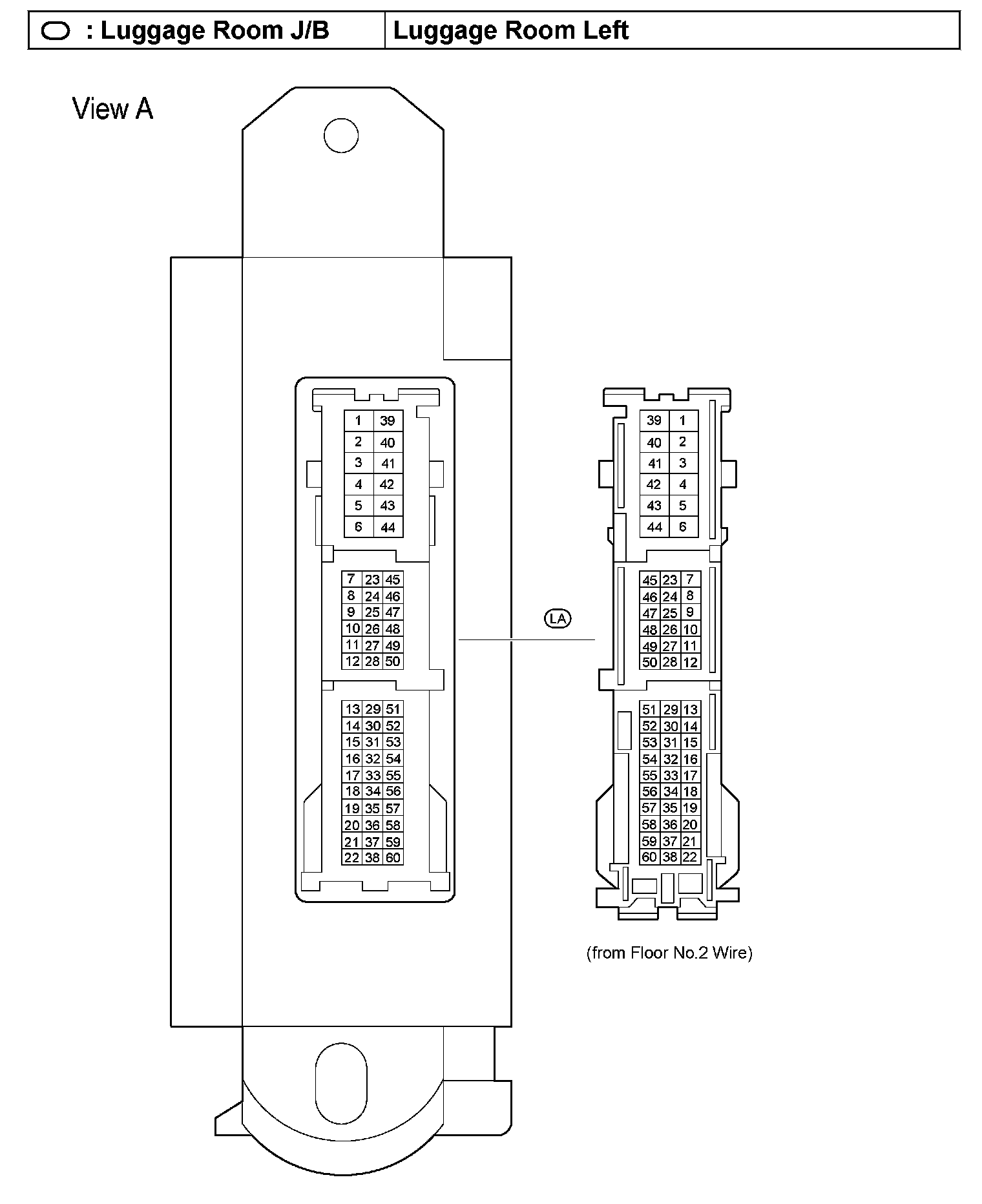

Luggage Room J/B - Luggage Room Left:

Luggage Room J/B - Luggage Room Left:

Luggage Room J/B - Luggage Room Left:

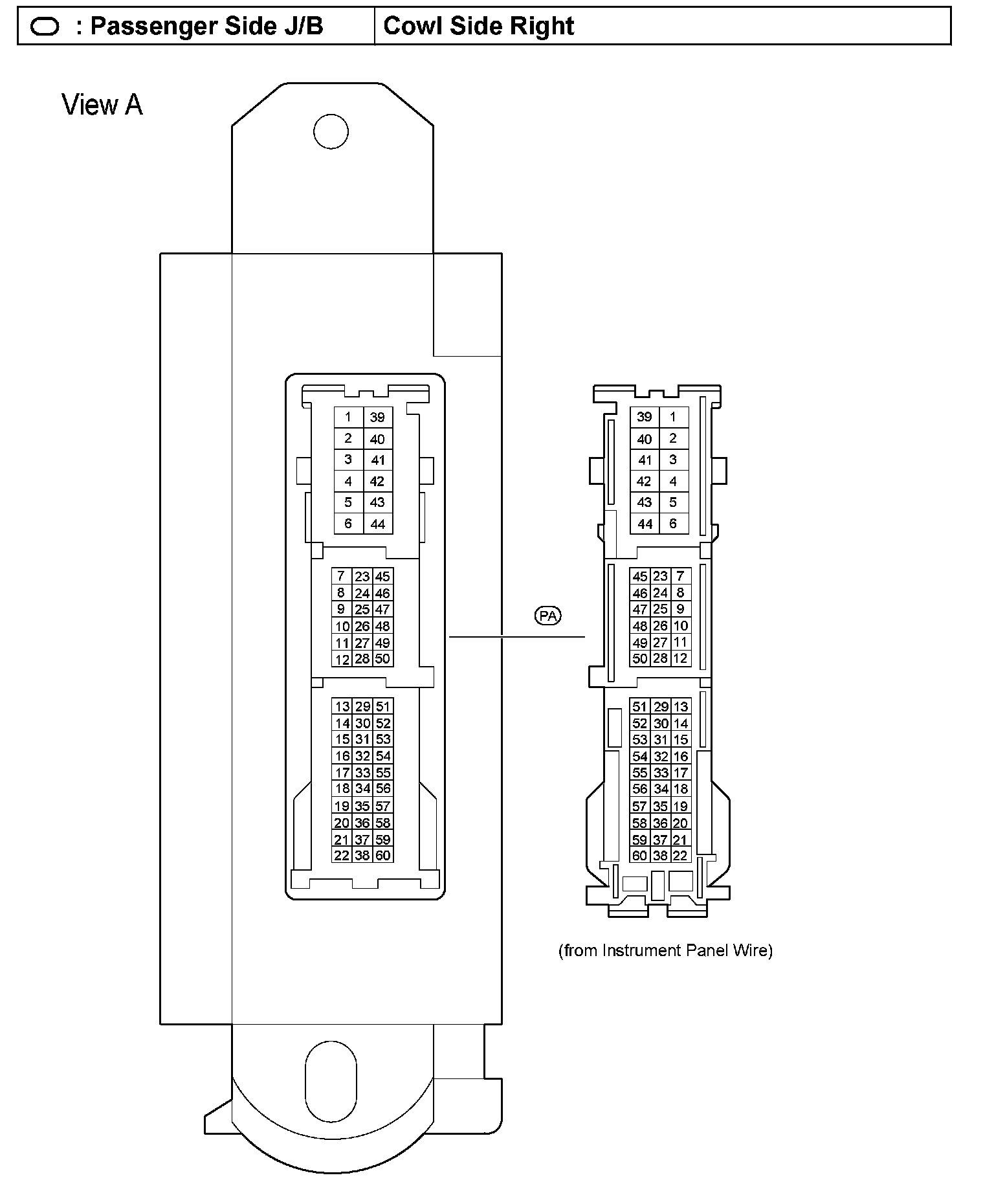

Passenger Side J/B - Cowl Side Right:

Passenger Side J/B - Cowl Side Right:

Passenger Side J/B - Cowl Side Right:
