Installation

2GR-FSE STARTING: ENGINE SWITCH: INSTALLATION

1. INSTALL ENGINE SWITCH

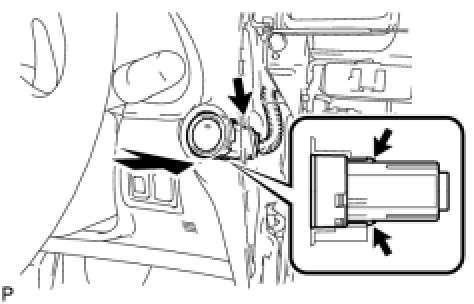

(a) Attach the 2 claws to install the switch.





(b) Connect the switch connector.

2. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) Installation

3. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) Installation

4. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL Installation

5. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Installation

6. INSTALL CONSOLE BOX Installation

7. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation

8. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY Installation

9. INSTALL CONSOLE PANEL SUB-ASSEMBLY Installation

10. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH Installation

11. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH Installation

12. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
