Distance Control ECU Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2009 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

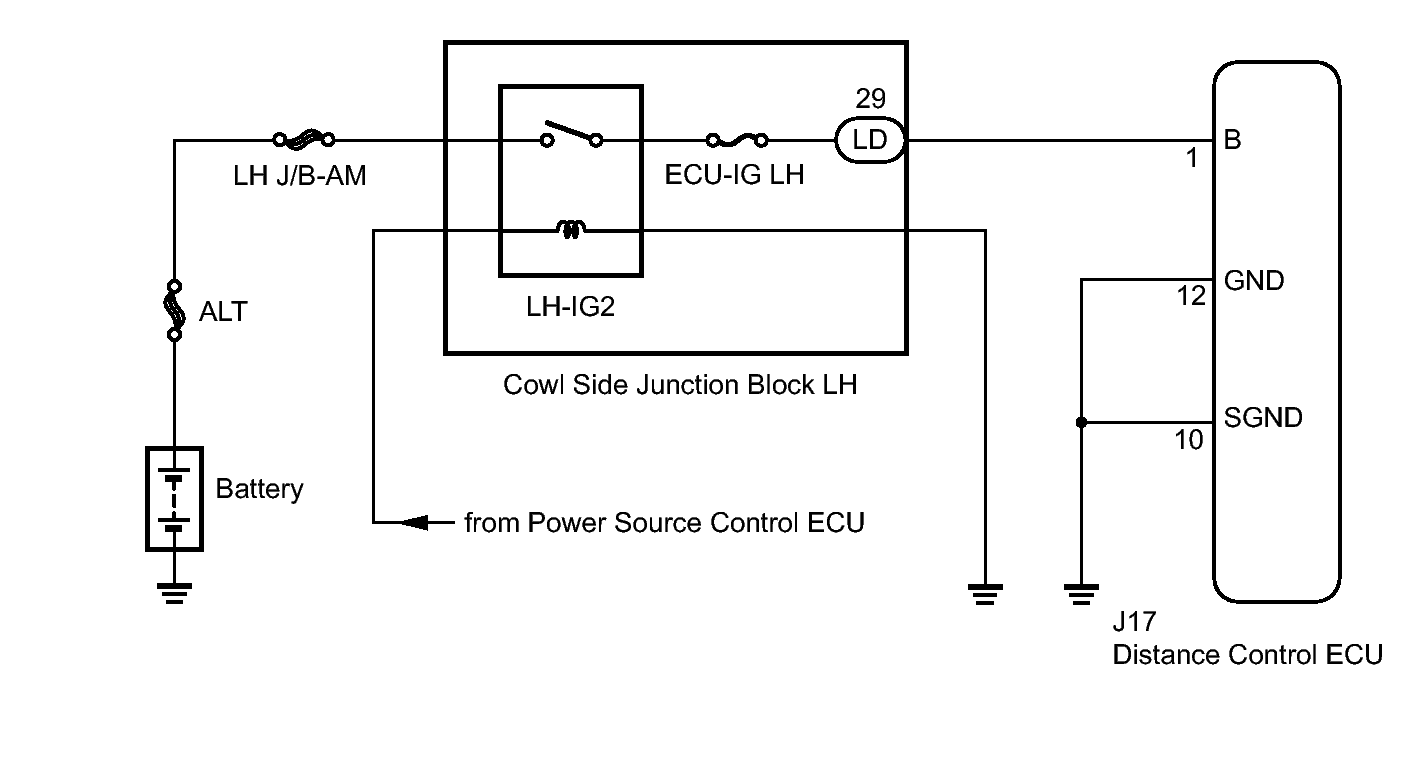

Fig 1: Distance Control ECU Power Source -- Wiring Diagram
GTY154028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
