Push-Button Start, Hybrid Vehicle Immobilizer and Steering Lock: Notes

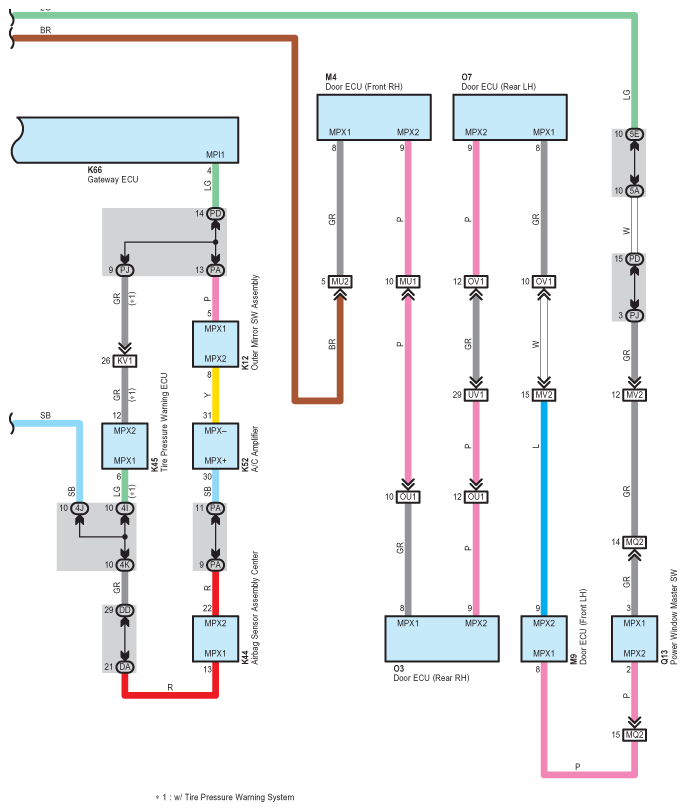

Fig 1: Push-Button Start, Hybrid Vehicle Immobilizer And Steering Lock - Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

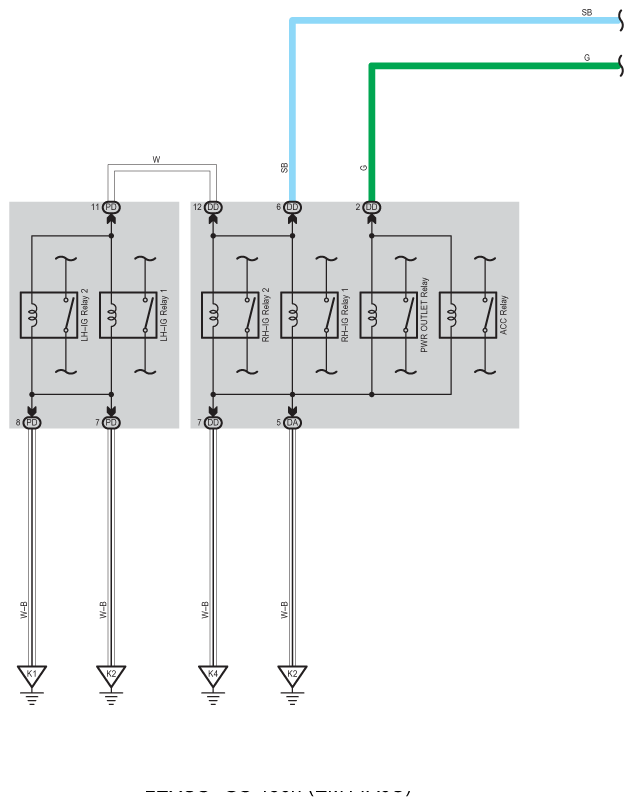

Fig 2: Push-Button Start, Hybrid Vehicle Immobilizer And Steering Lock - Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

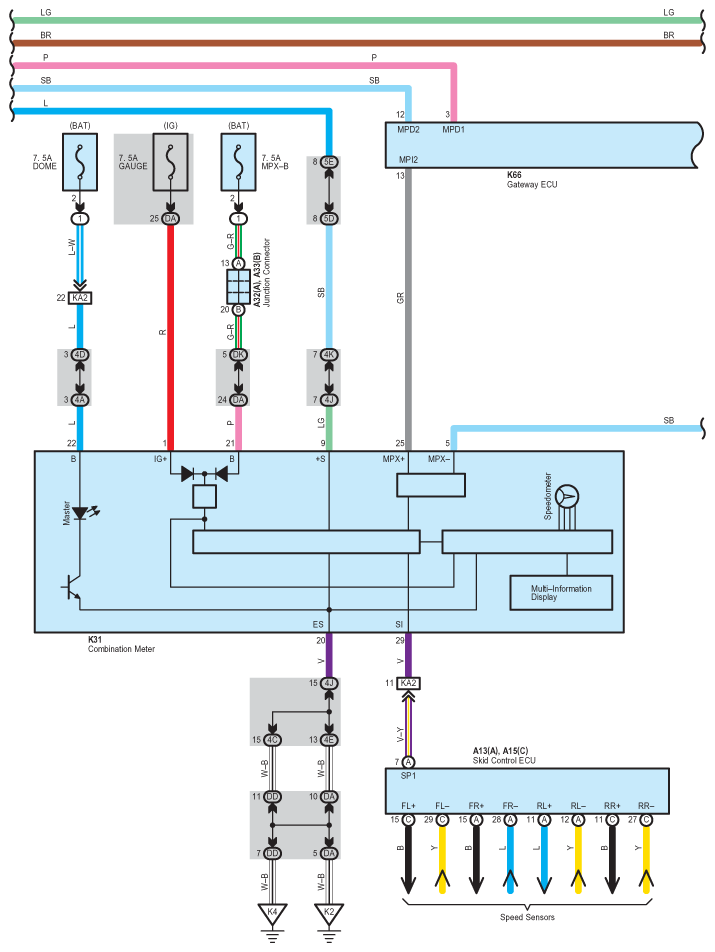

Fig 3: Push-Button Start, Hybrid Vehicle Immobilizer And Steering Lock - Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

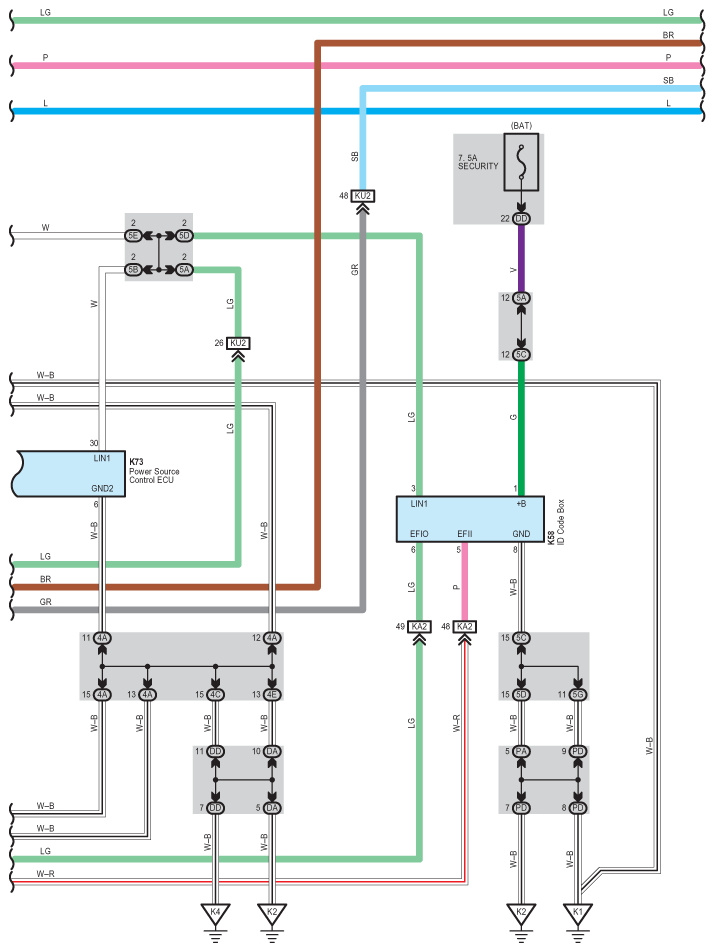

Fig 4: Push-Button Start, Hybrid Vehicle Immobilizer And Steering Lock - Wiring Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

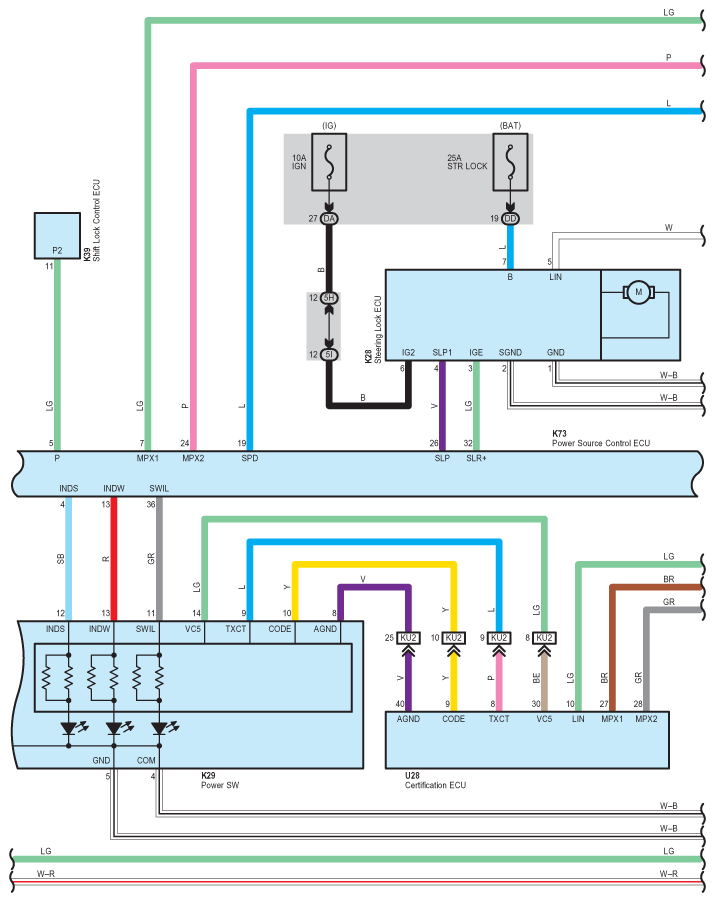

Fig 5: Push-Button Start, Hybrid Vehicle Immobilizer And Steering Lock - Wiring Diagram (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

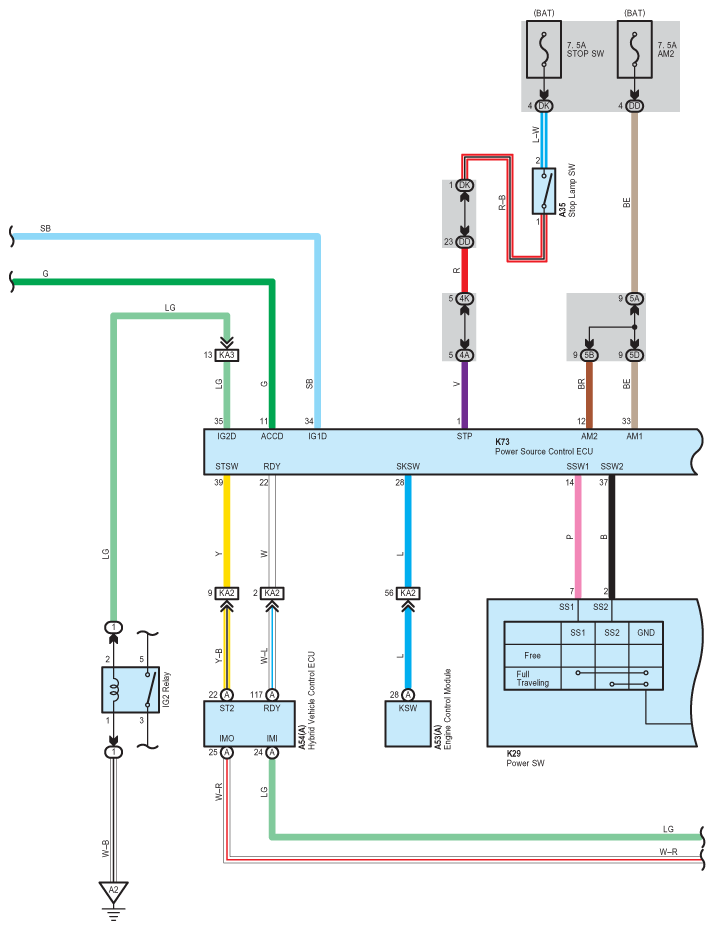

Fig 6: Push-Button Start, Hybrid Vehicle Immobilizer And Steering Lock - Wiring Diagram (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
