Engine Assembly: Components: Illustration

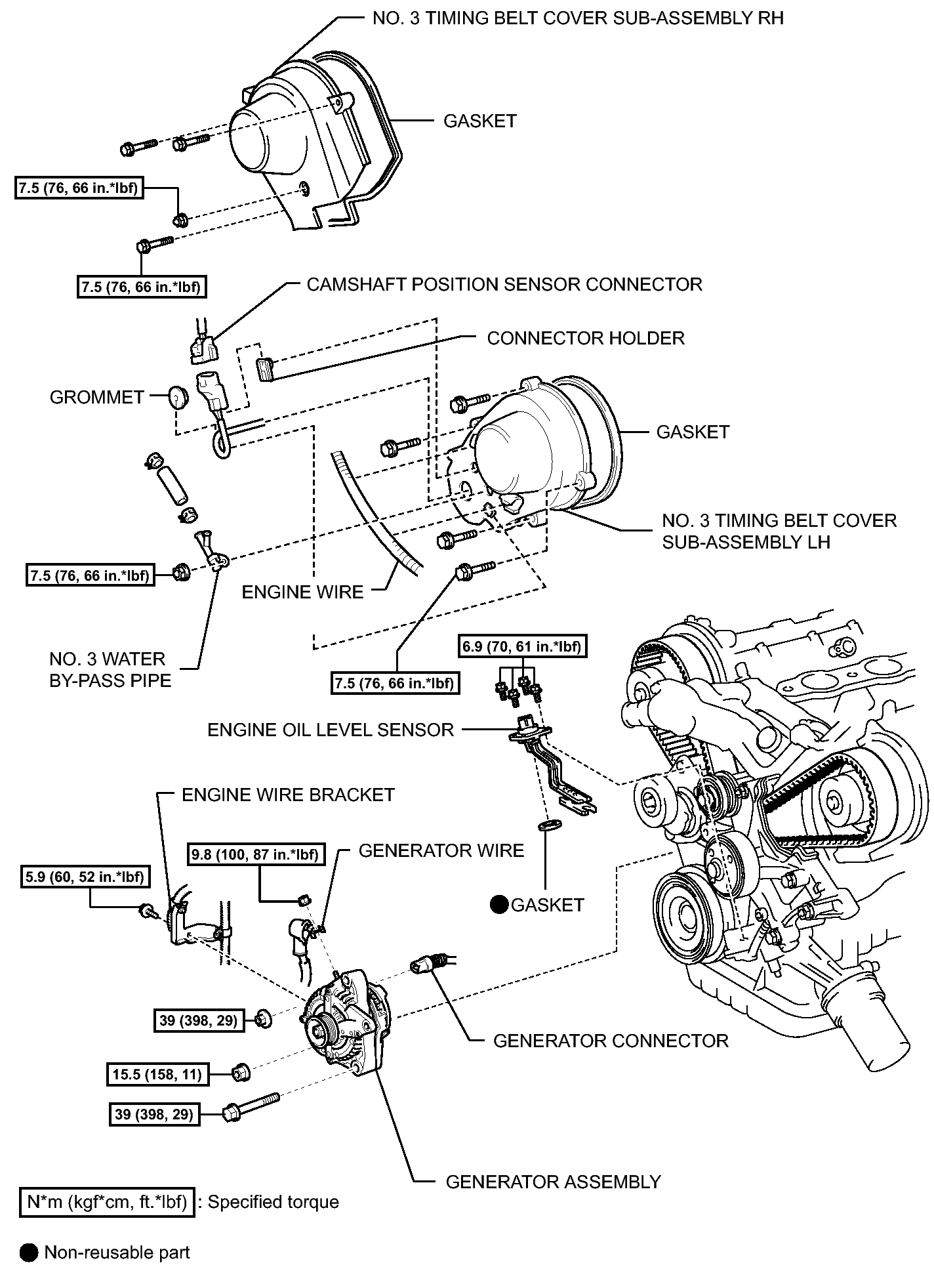

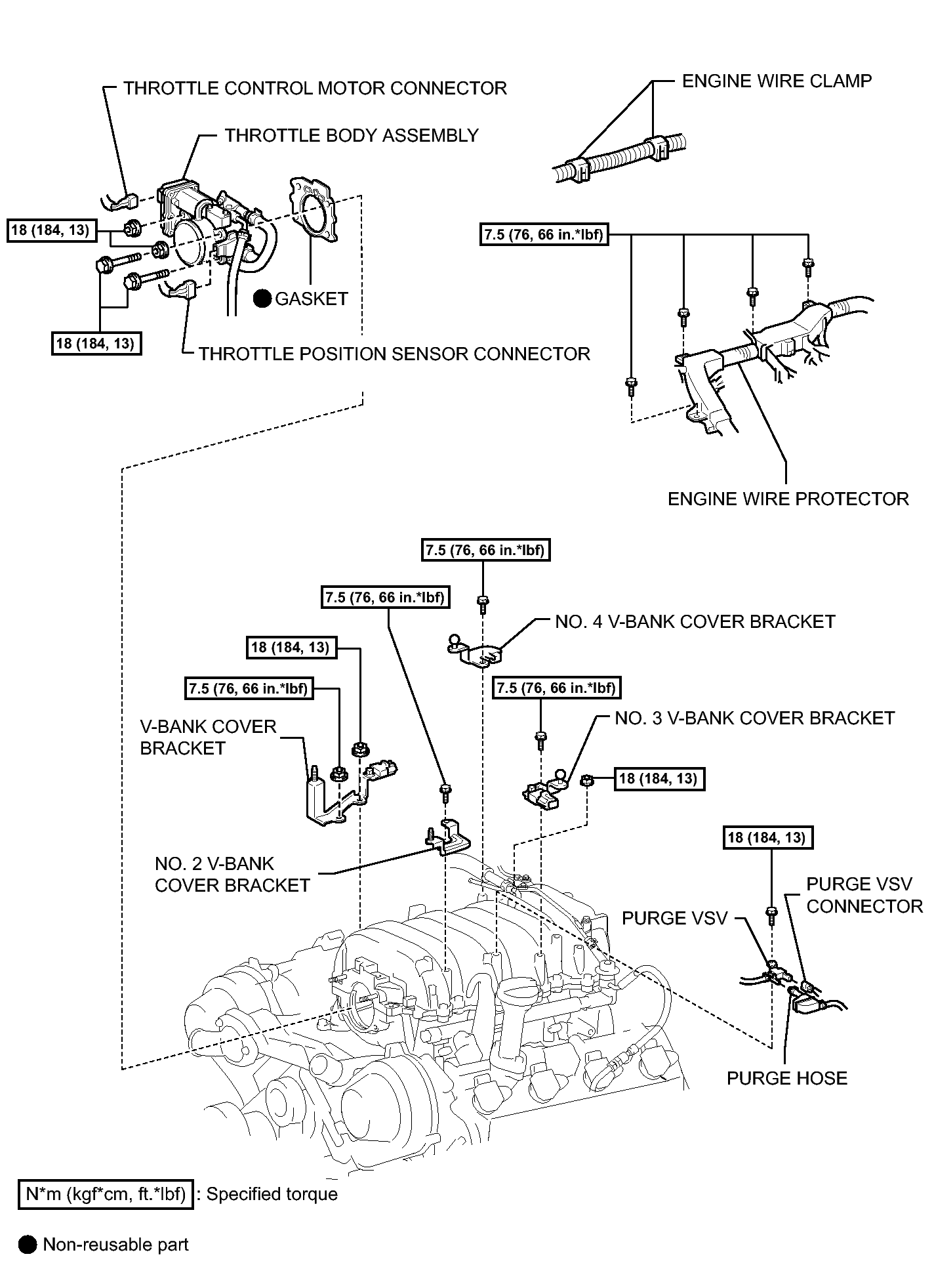

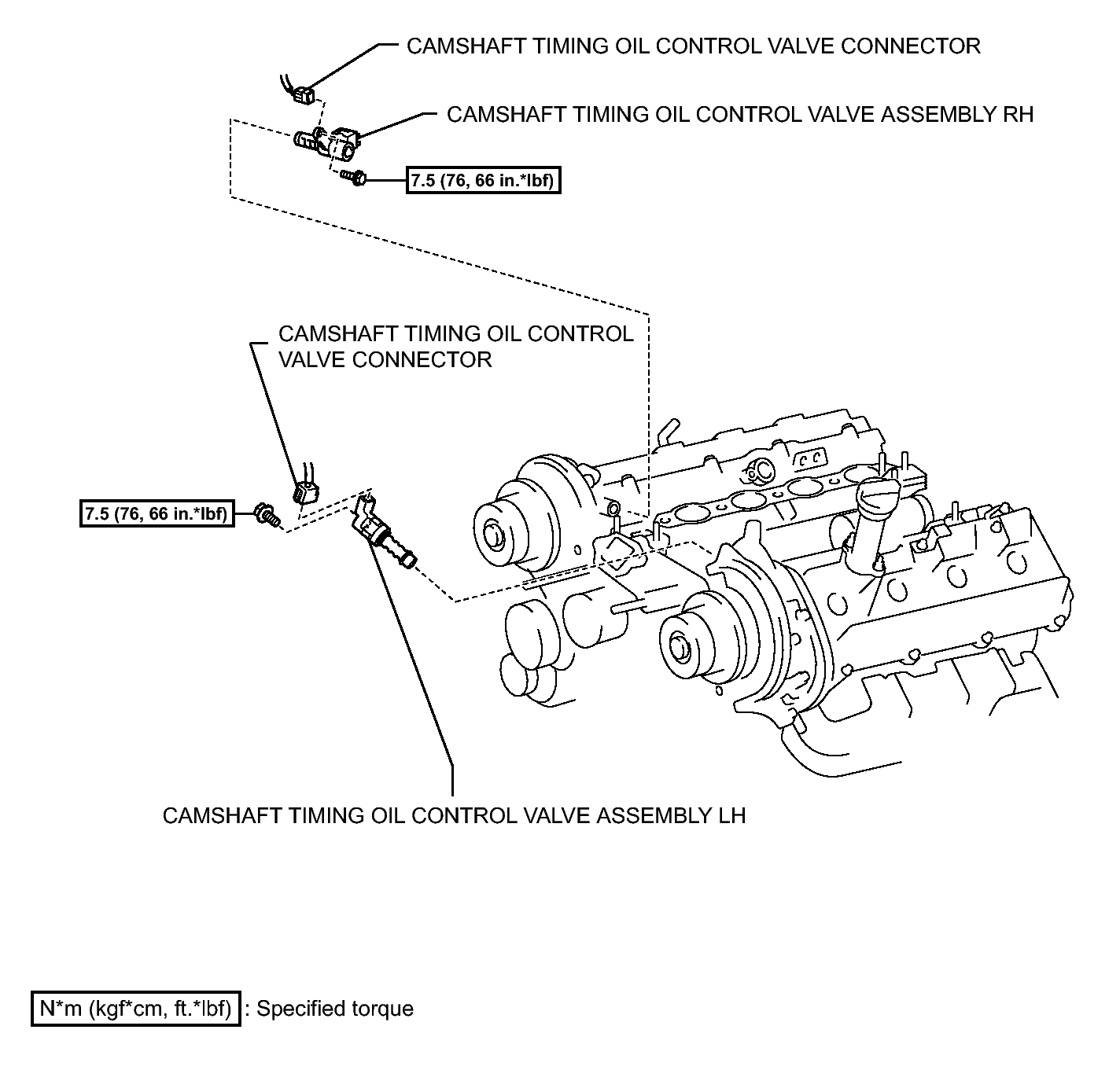

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (1 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

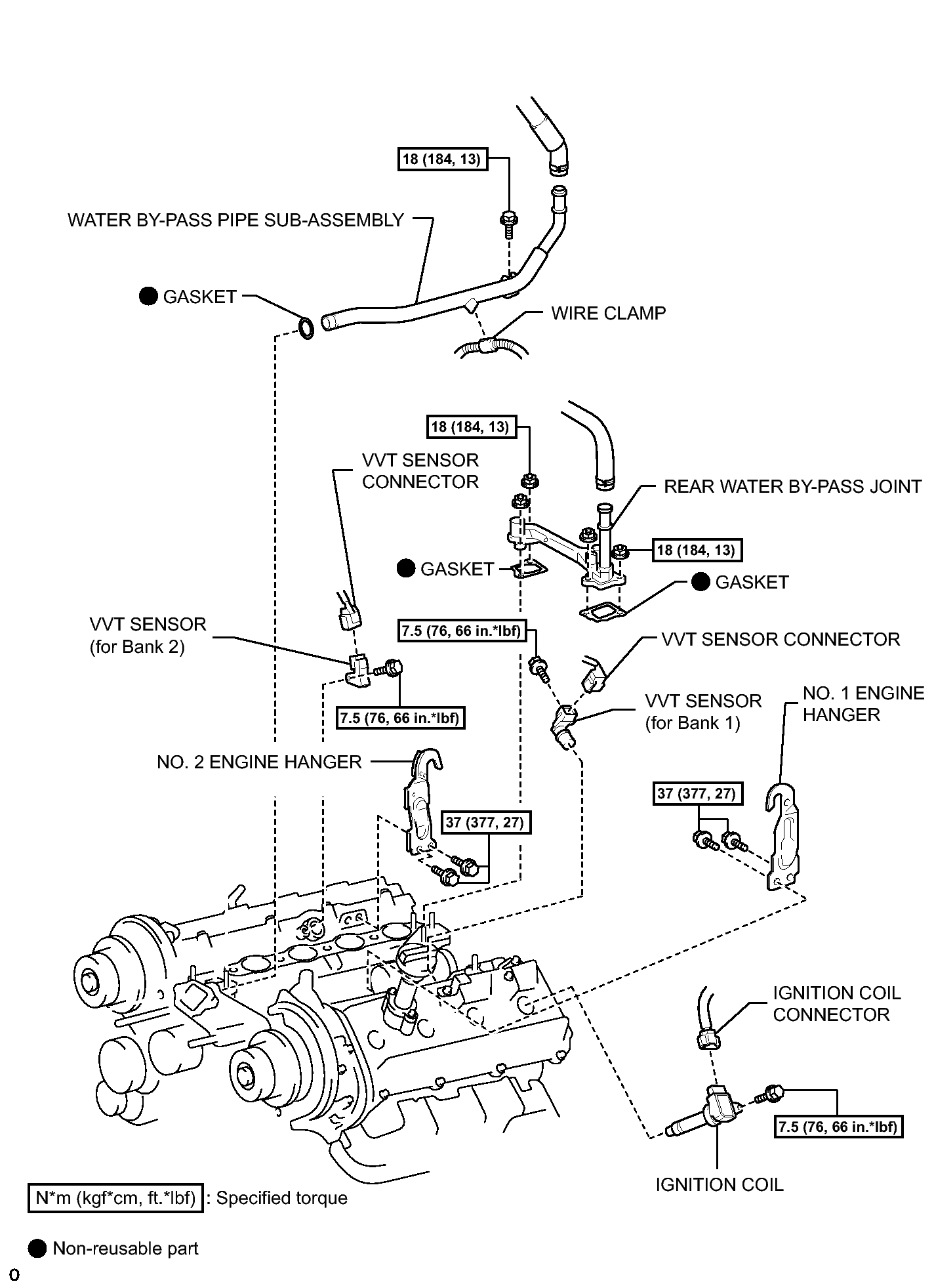

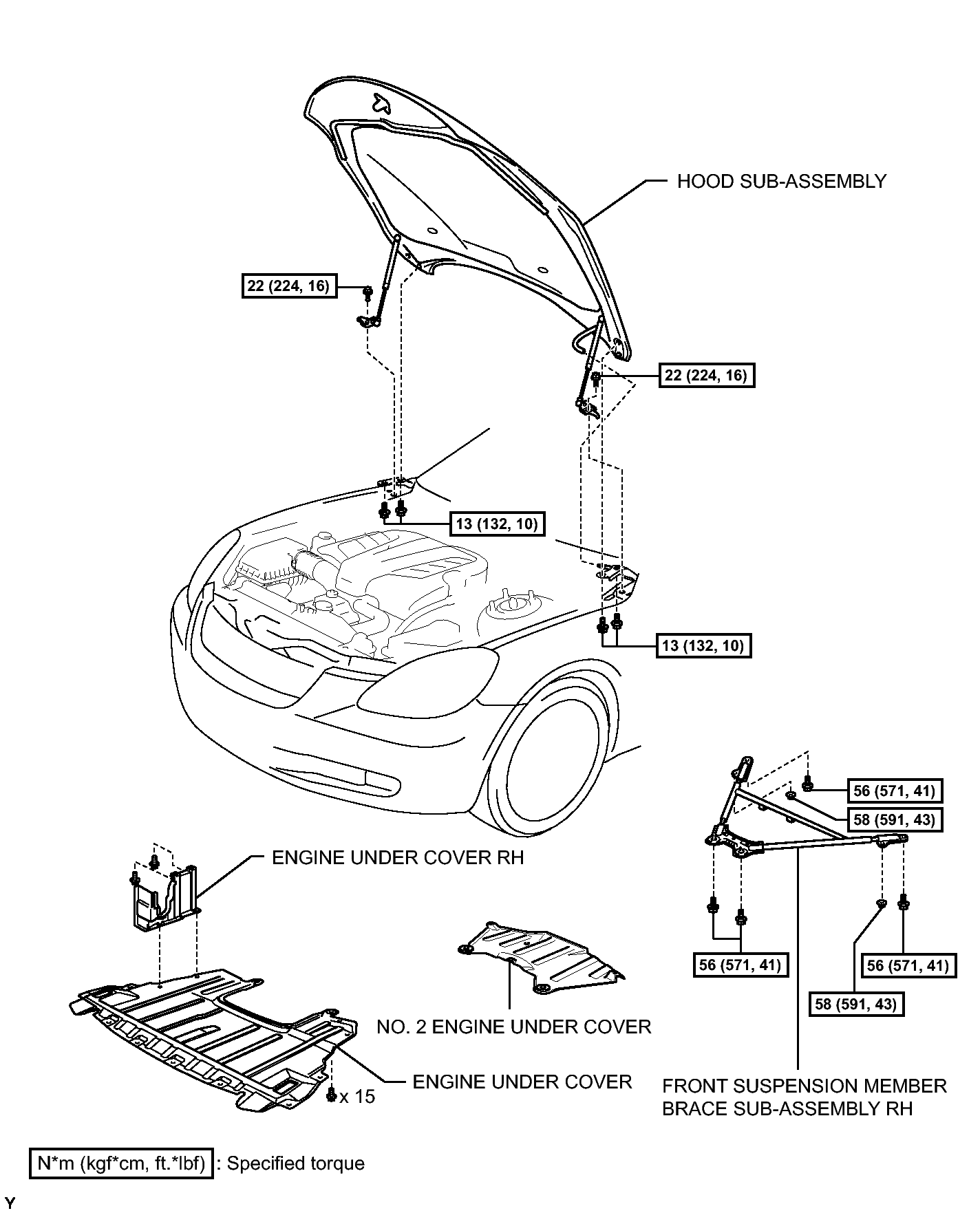

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (2 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

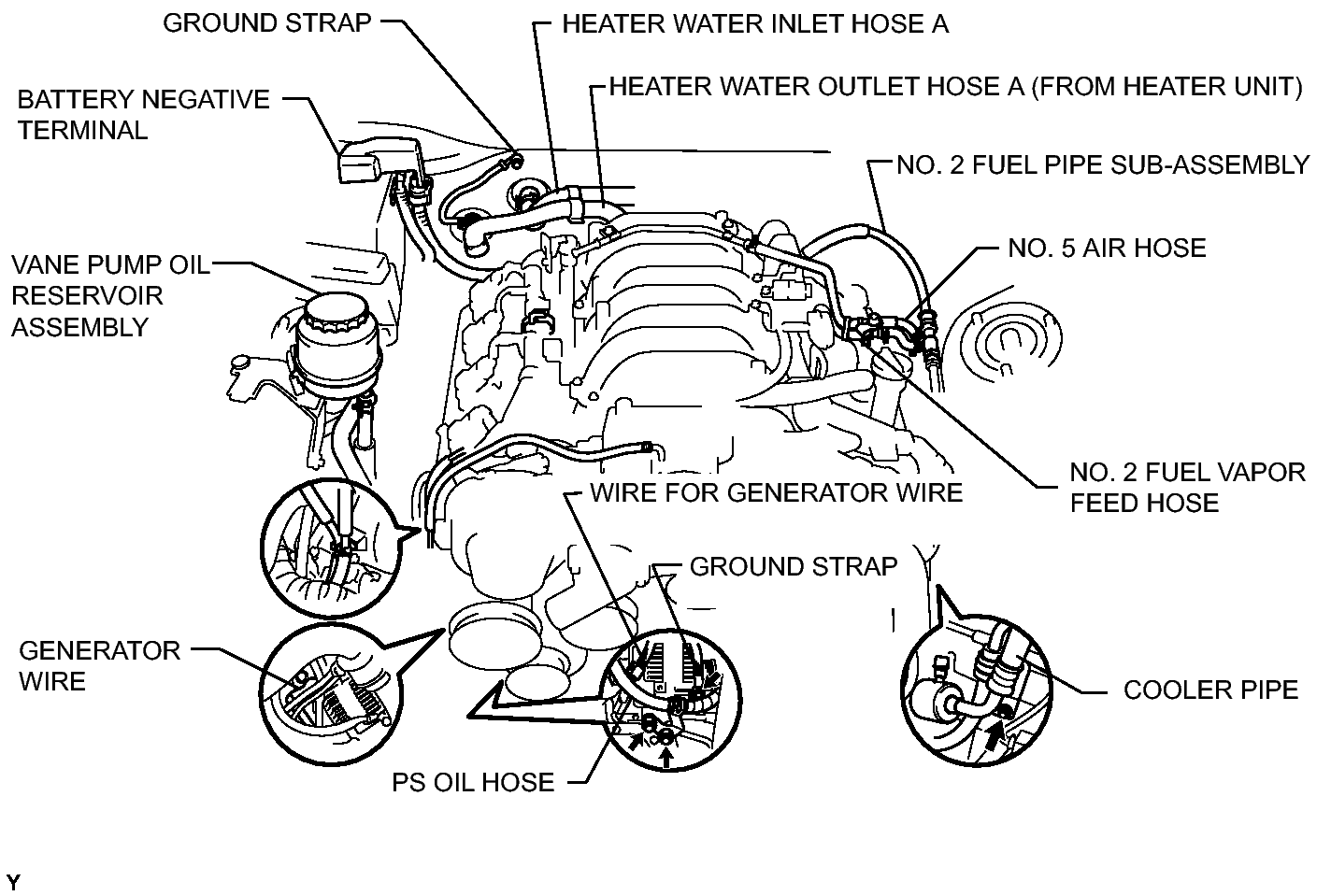

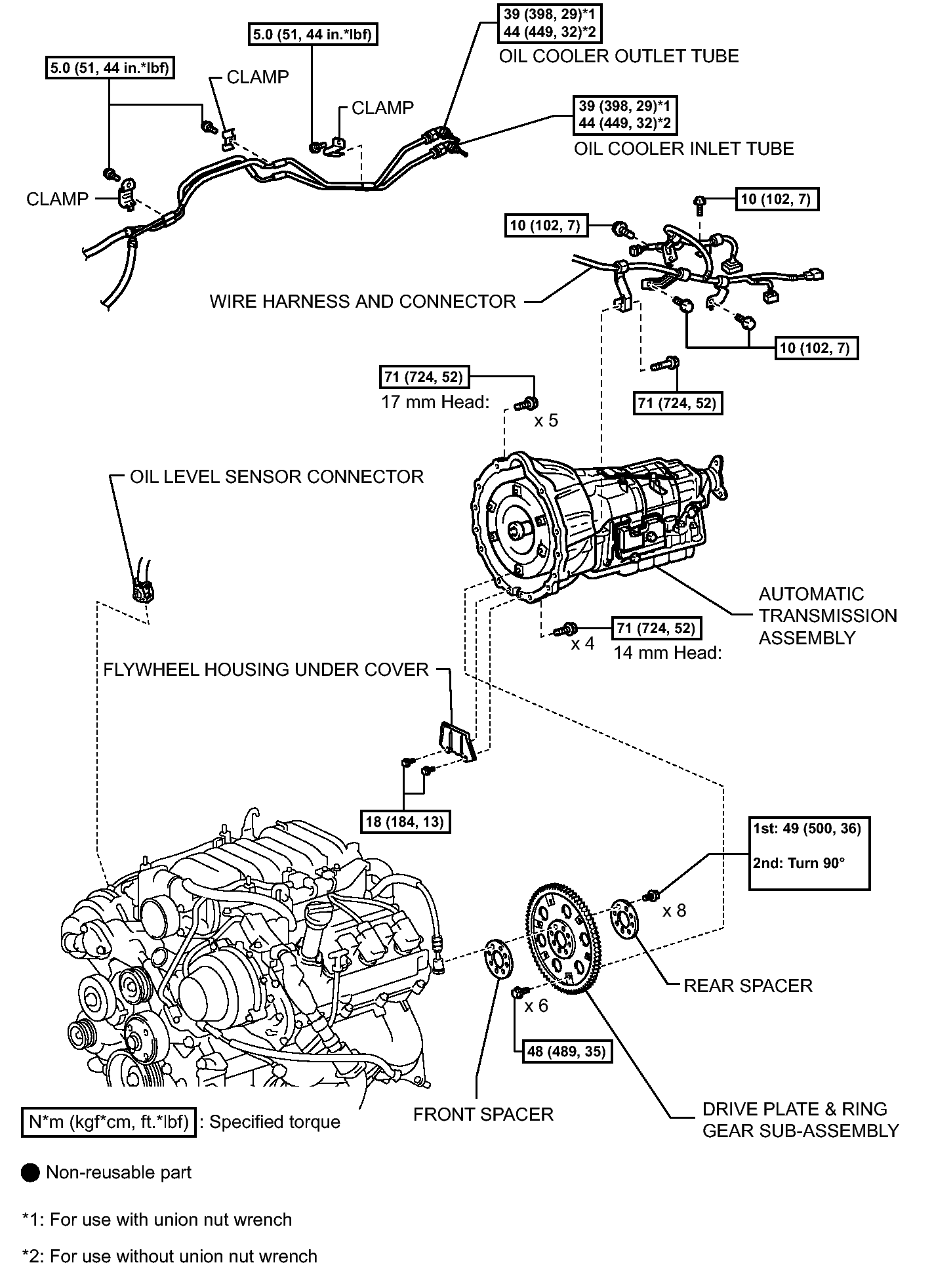

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (3 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

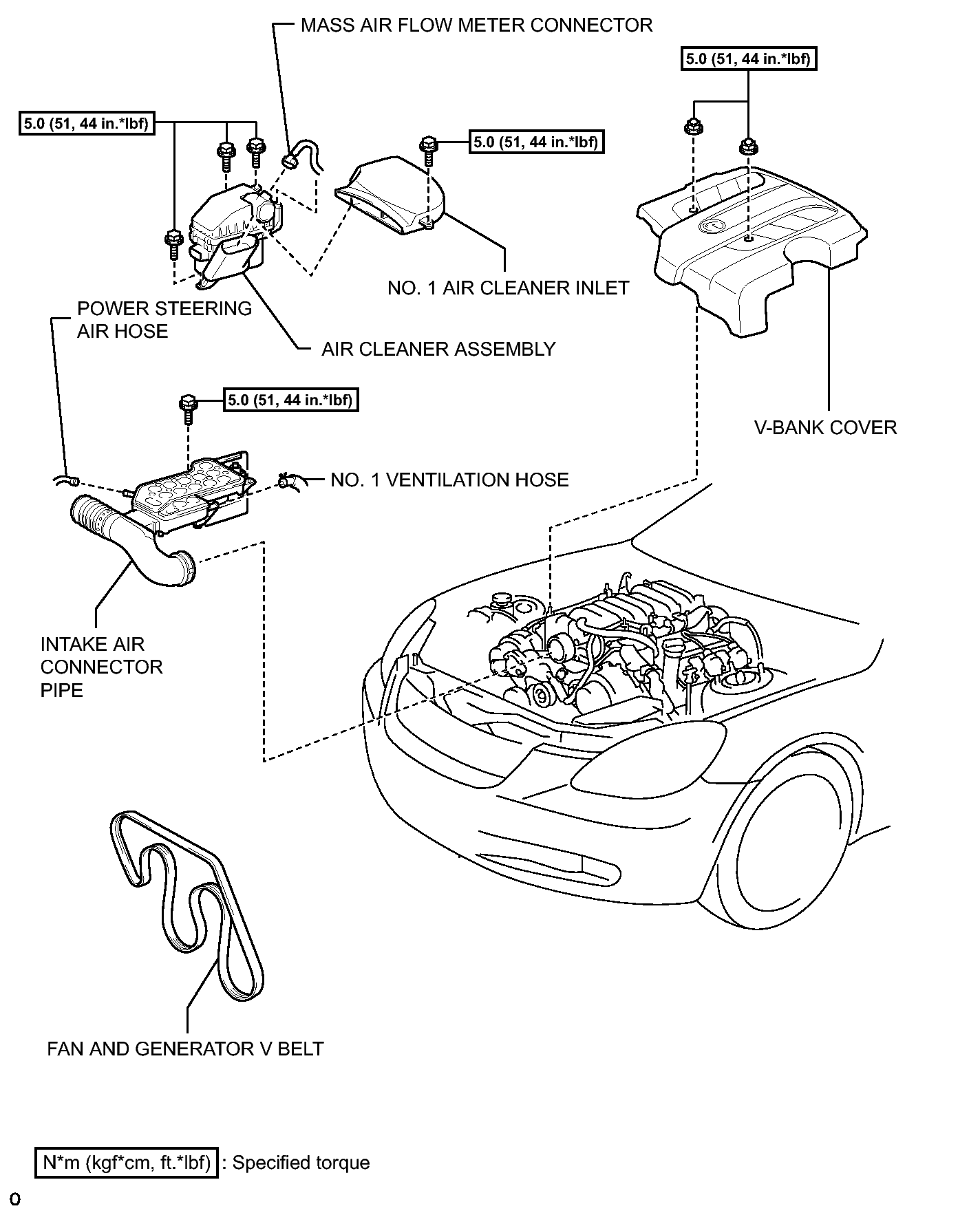

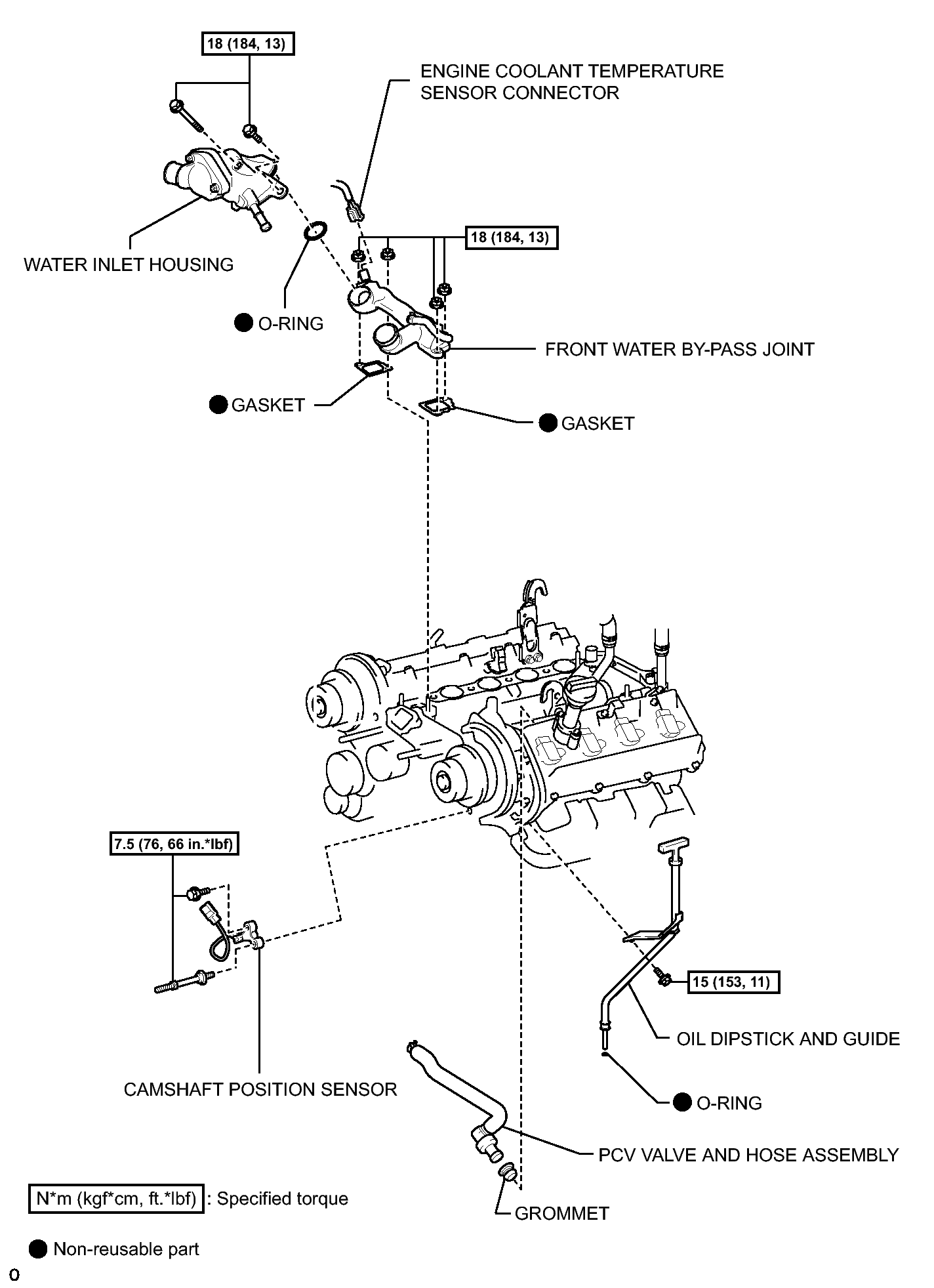

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (4 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

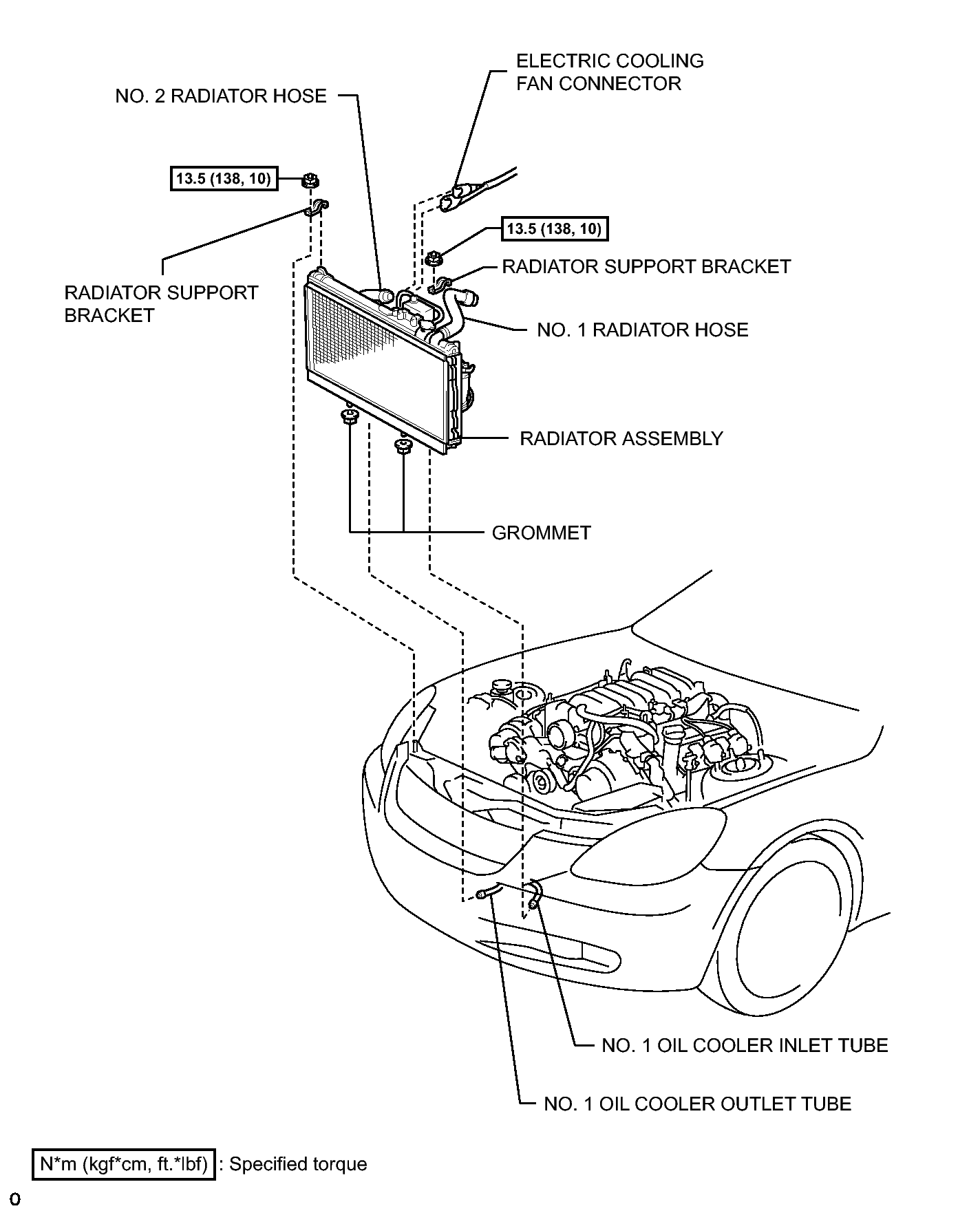

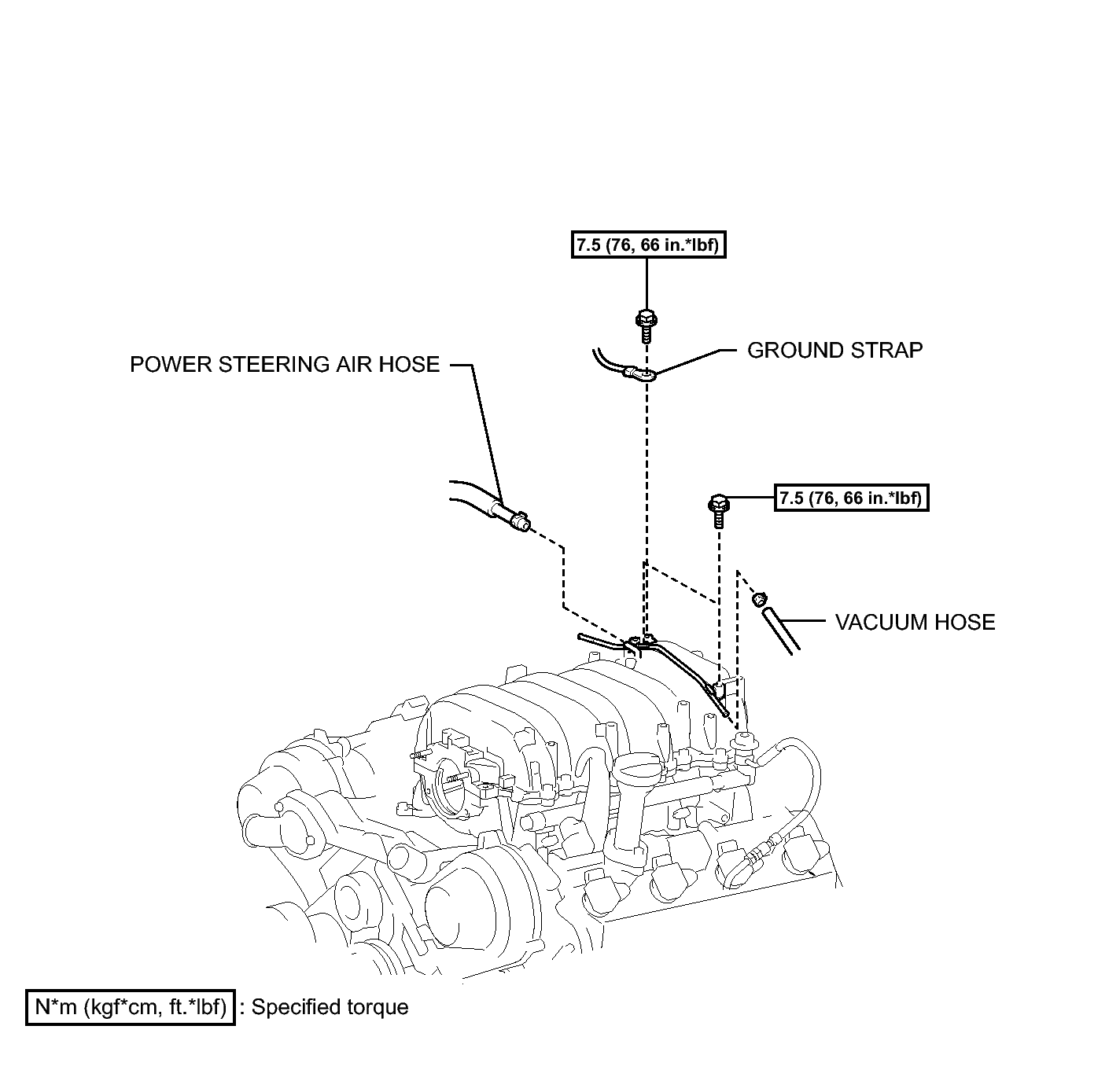

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (5 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

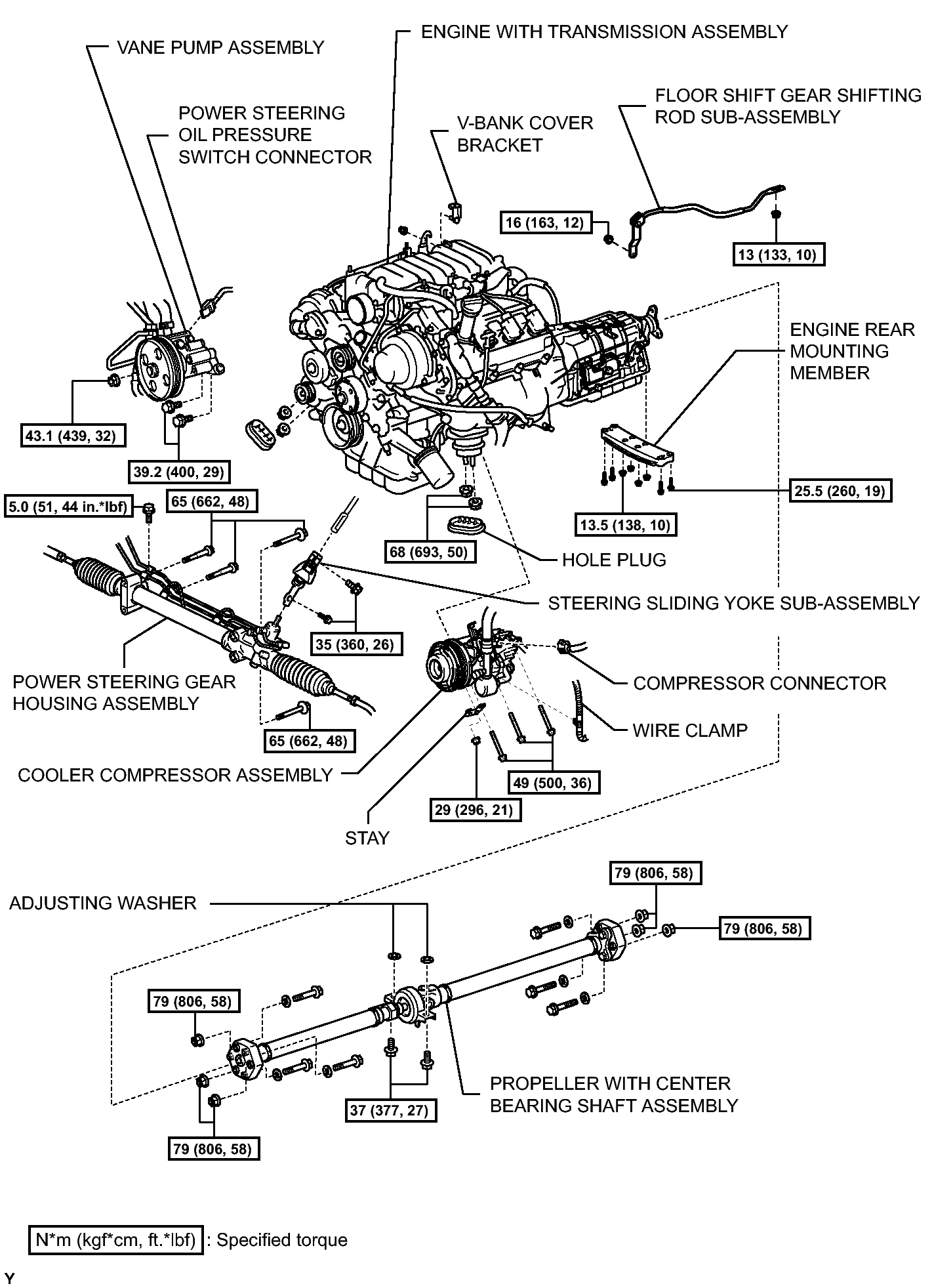

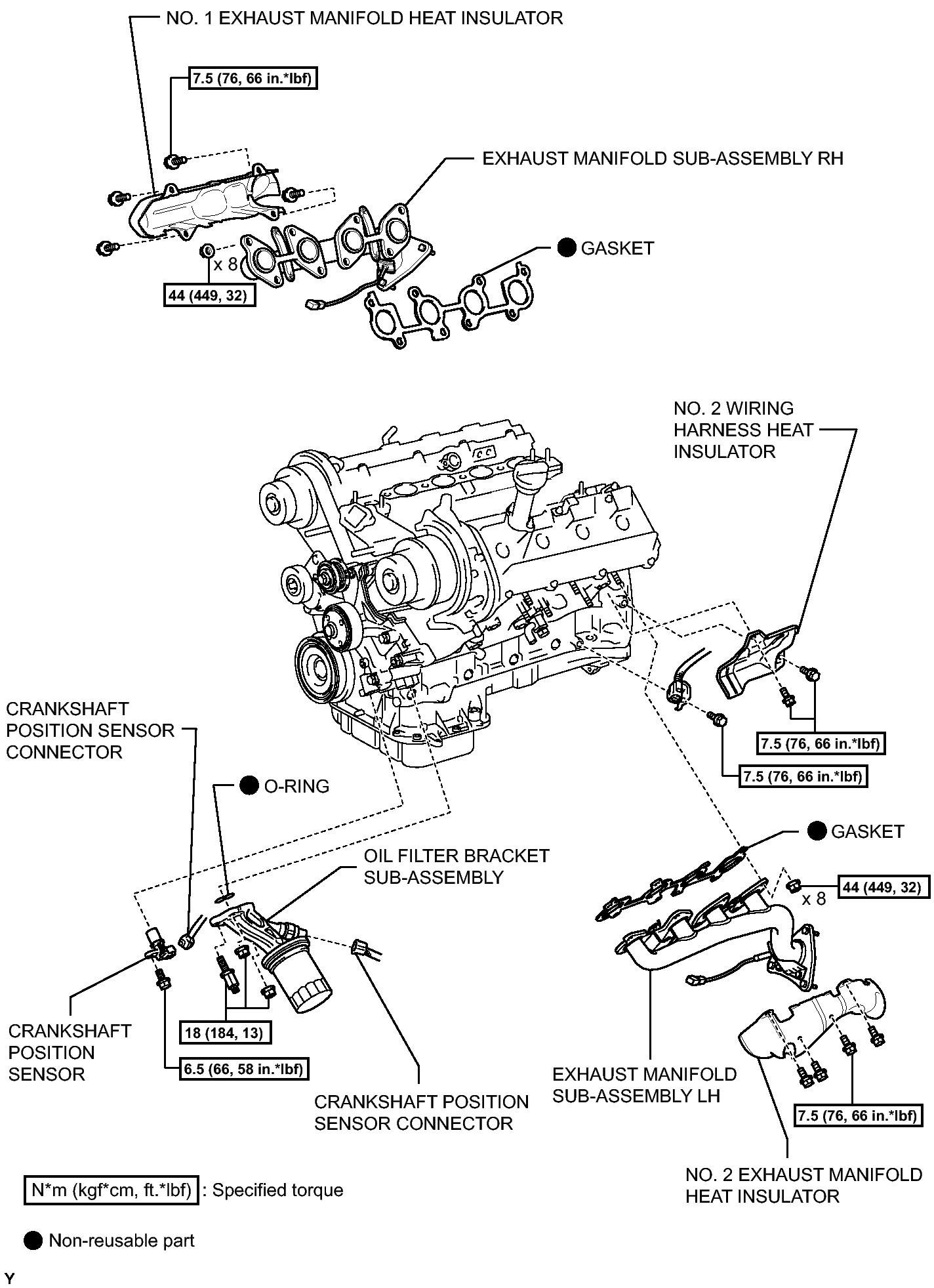

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (6 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

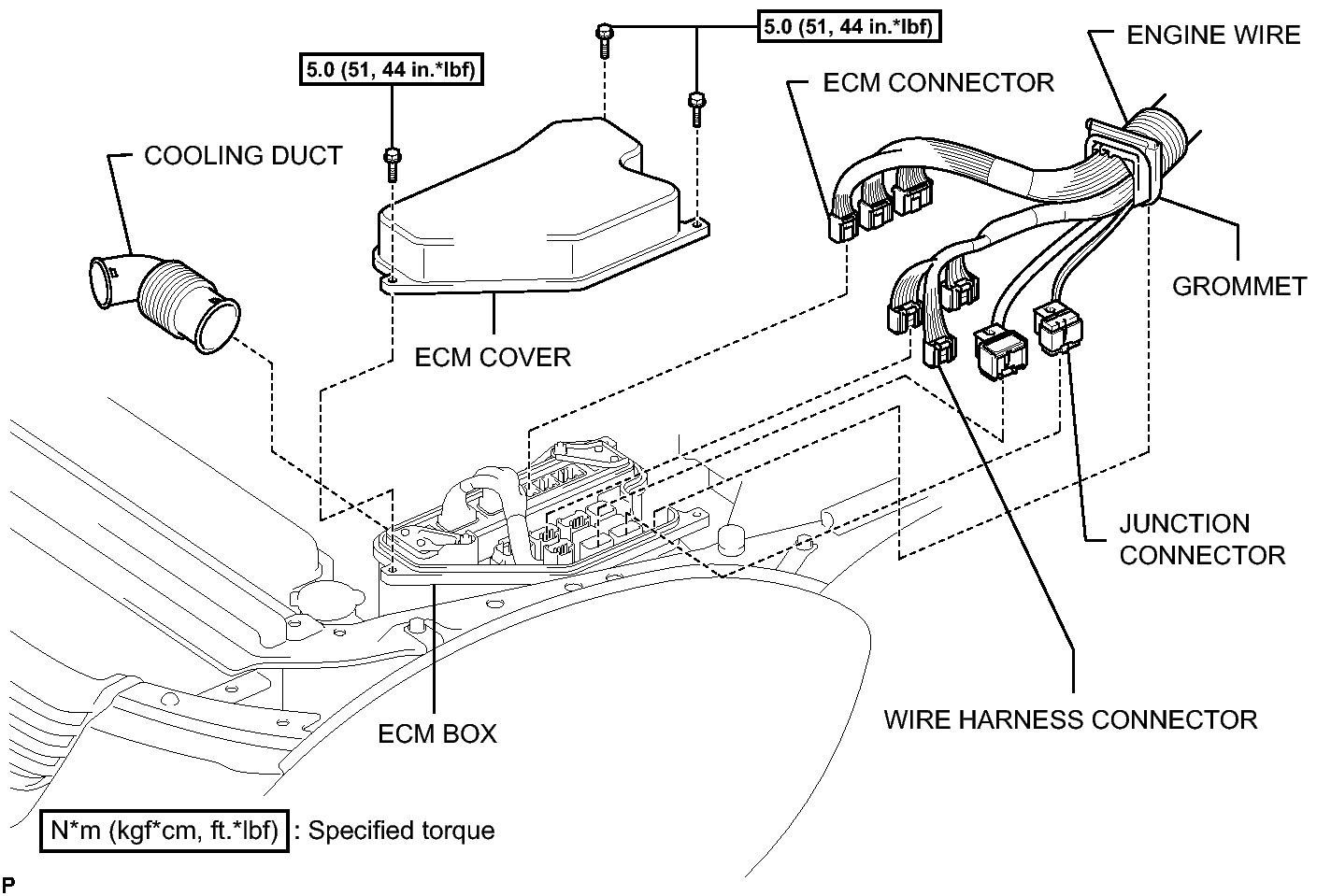

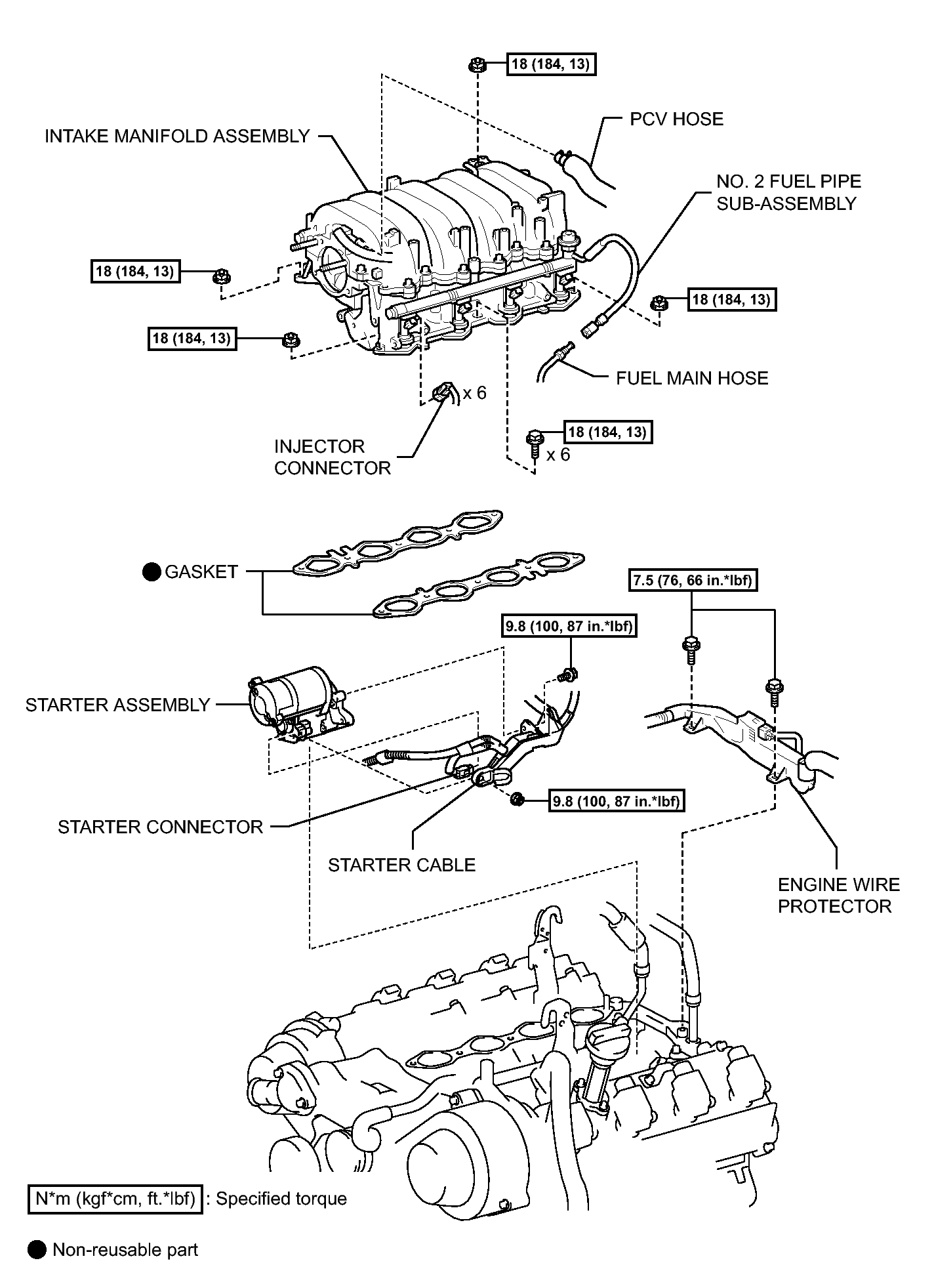

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (7 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

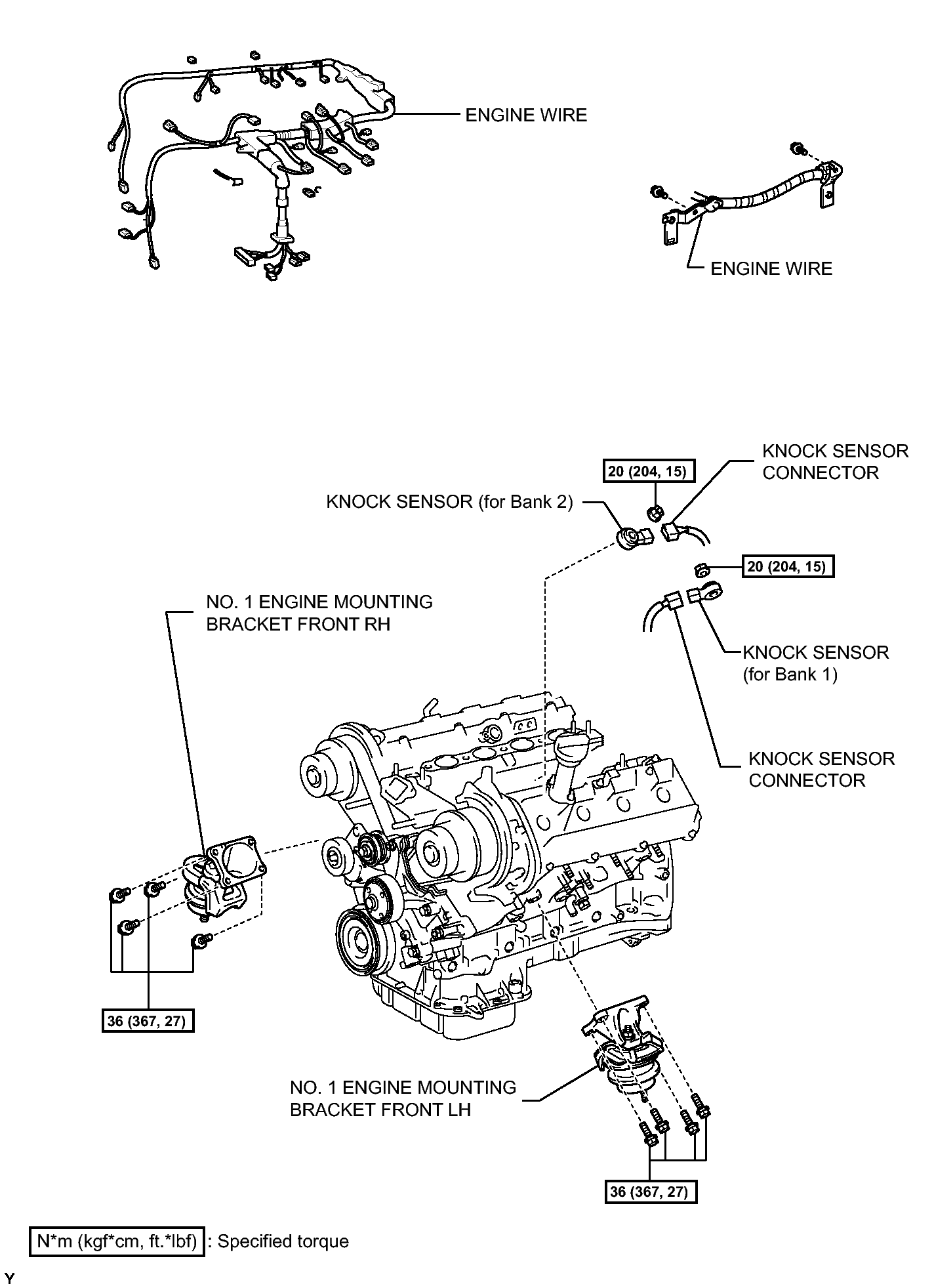

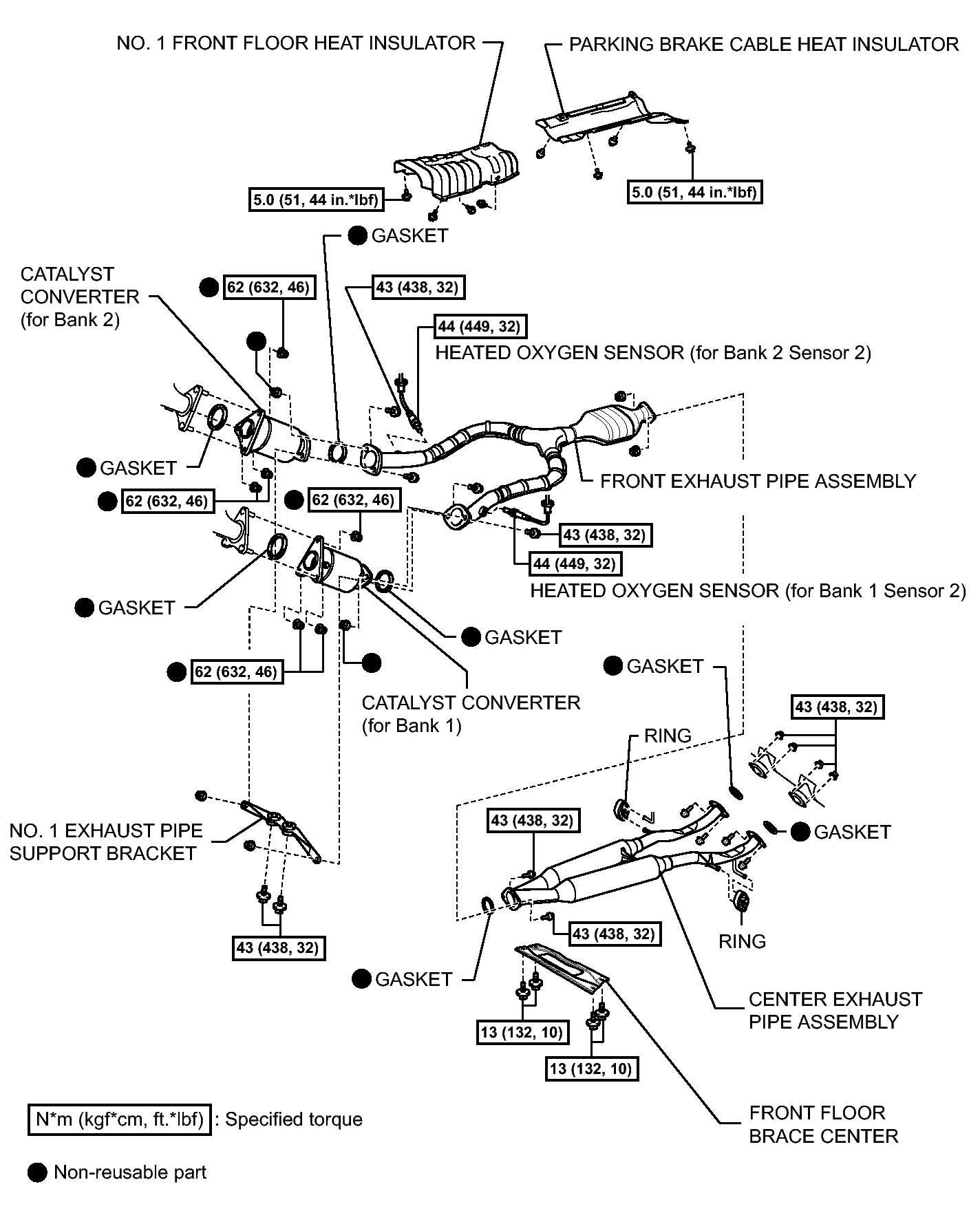

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (8 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (9 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (10 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (11 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (12 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (13 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (14 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (15 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (16 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (17 Of 17)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
