Engine Hood / Door

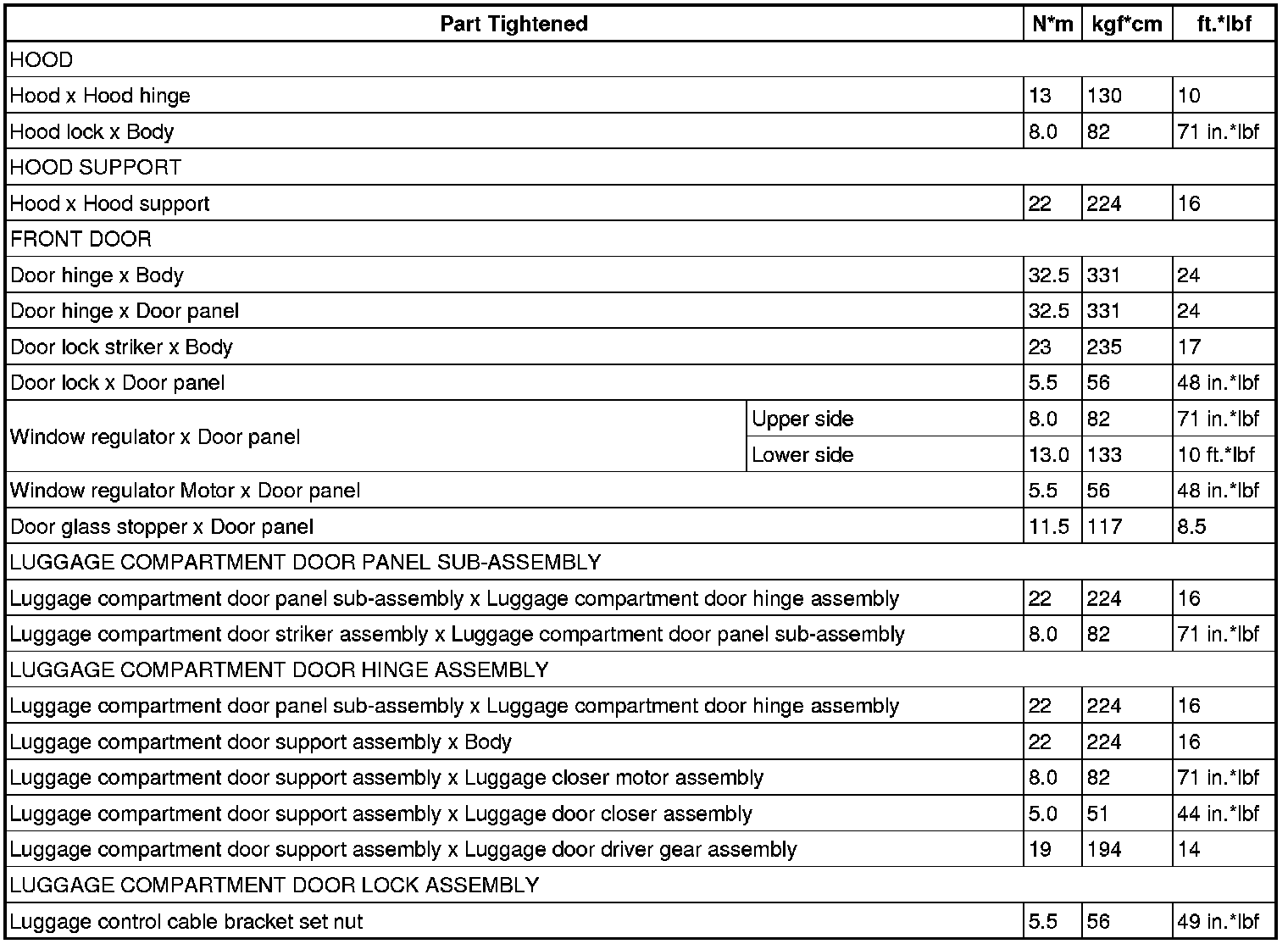

SERVICE SPECIFICATIONS: ENGINE HOOD / DOOR: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS
