Retractable Hardtop System

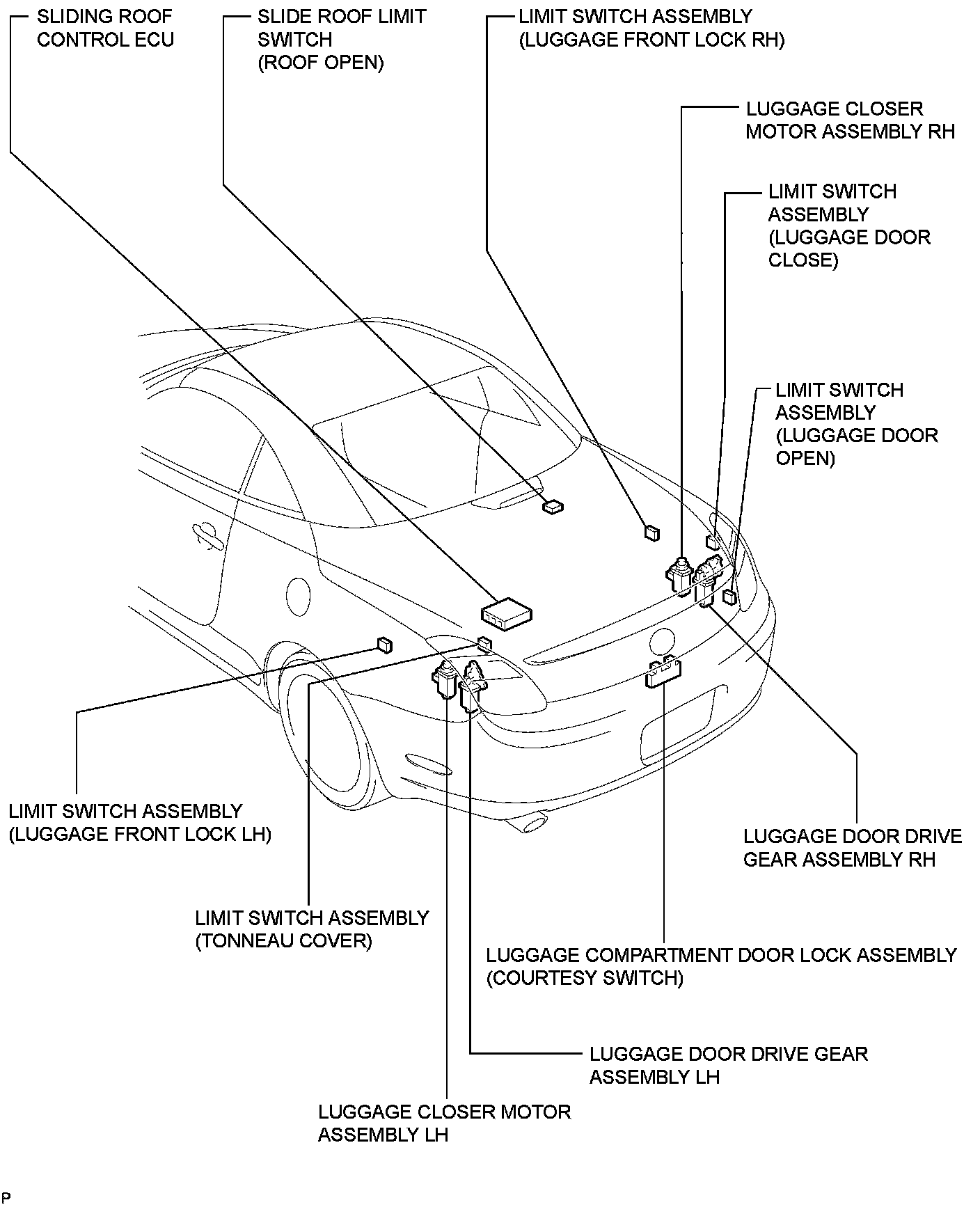

CONVERTIBLE: RETRACTABLE HARDTOP SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
