Engine Control System (Service Information): ECM: Components: Illustration

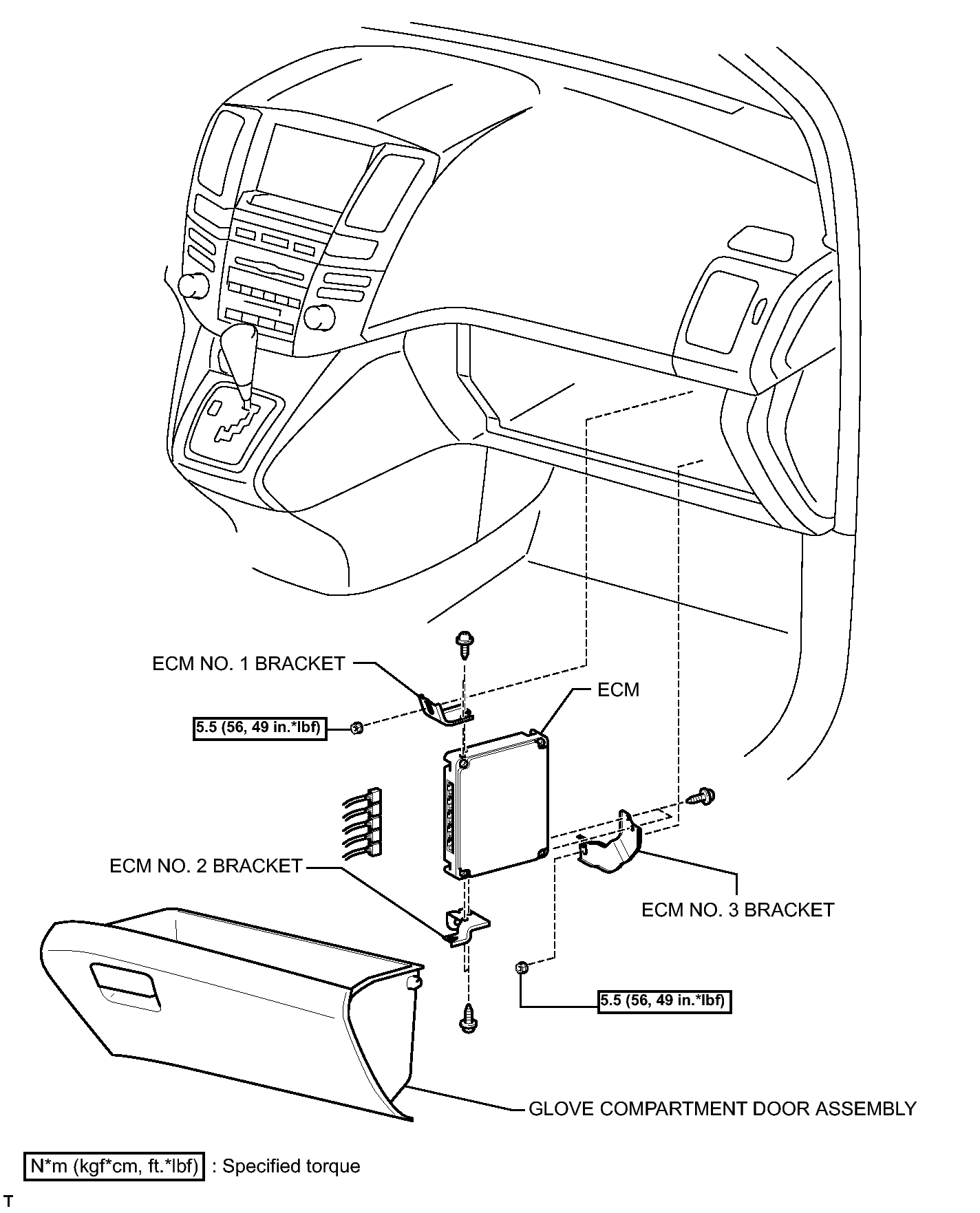

Fig 1: Identifying ECM Replacement Components With Torque Specifications
GTY146858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
