Rear Window Defogger: Notes

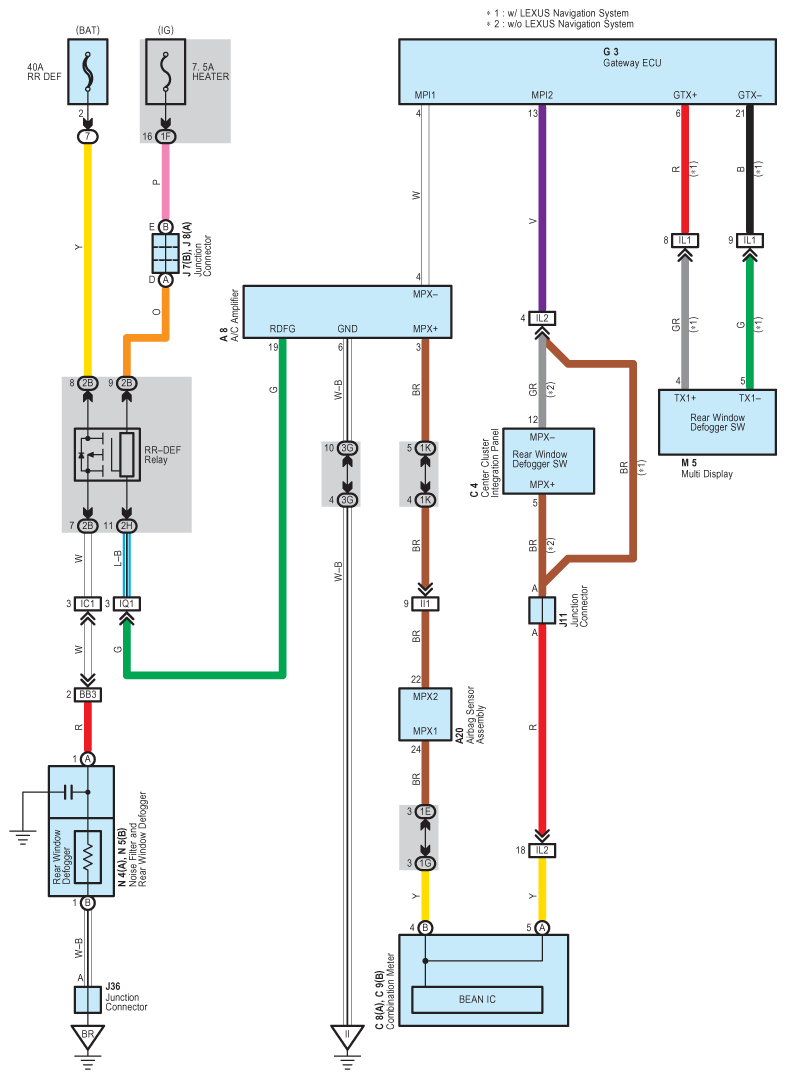

Fig 1: Rear Window Defogger - Circuit Diagram
G07614583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
