Removal

WIPER AND WASHER: WIPER ECU: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Service Precautions
2. REMOVE FRONT DOOR SCUFF PLATE RH Removal
3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH Removal
4. REMOVE NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal
5. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY Removal

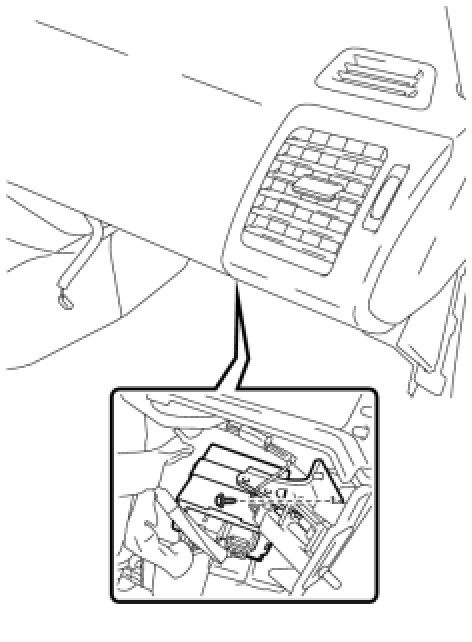

6. REMOVE WIPER ECU
(a) Disconnect the connector.





(b) Remove the screw and the wiper ECU.
