System Specifications

Camshaft timing gear assembly x Camshaft 100 Nm (1020 kgf-cm, 74 ft-lbf)
Camshaft timing exhaust gear assembly x Camshaft 100 Nm (1020 kgf-cm, 74 ft-lbf)

Crankshaft pulley x Crankshaft 250 Nm (2550 kgf-cm, 184 ft-lbf)
No. 1 chain vibration damper x Cylinder block sub-assembly 23 Nm (234 kgf-cm, 17 ft-lbf)





Timing chain cover plate x Timing chain cover sub-assembly 9.1 Nm (93 kgf-cm, 81 in.*lbf)

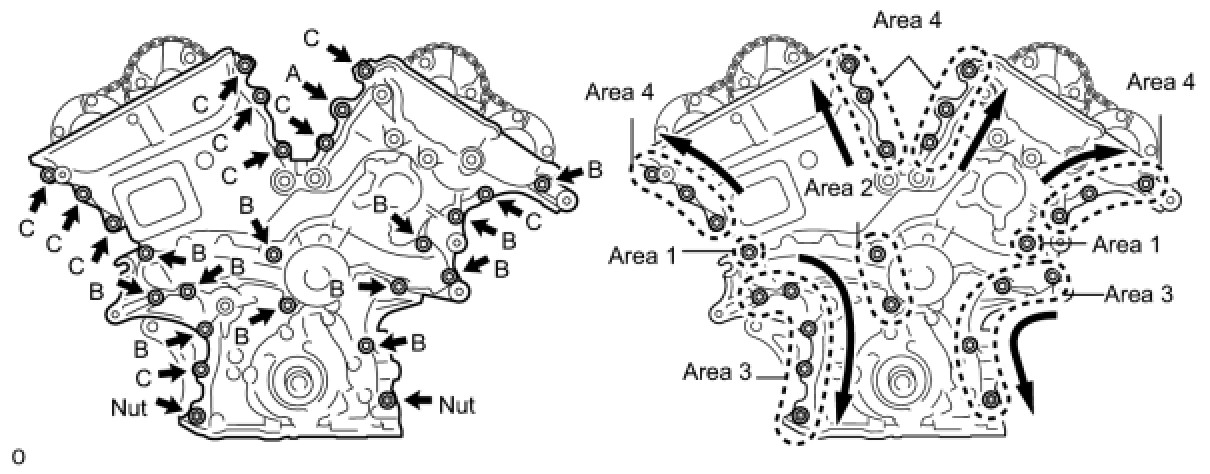

Timing chain cover sub-assembly x Cylinder head and block
Areas 1: Bolt 21 Nm (214 kgf-cm, 15 ft-lbf)
Areas 2: Bolt 21 Nm (214 kgf-cm, 15 ft-lbf)
Areas 3: Bolt and Nut 21 Nm (214 kgf-cm, 15 ft-lbf)
Areas 4: Bolt A 43 Nm (438 kgf-cm, 32 ft-lbf)
Areas 4: Except Bolt A 21 Nm (214 kgf-cm, 15 ft-lbf)

No. 1 chain tensioner x Cylinder head sub-assembly 10 Nm (102 kgf-cm, 7 ft-lbf)
No. 2 chain tensioner x Cylinder head sub-assembly 21 Nm (214 kgf-cm, 15 ft-lbf)
No. 3 chain tensioner x Cylinder head sub-assembly 21 Nm (214 kgf-cm, 15 ft-lbf)
