Wiper Control Module: Testing and Inspection








WIPER AND WASHER: WIPER ECU: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

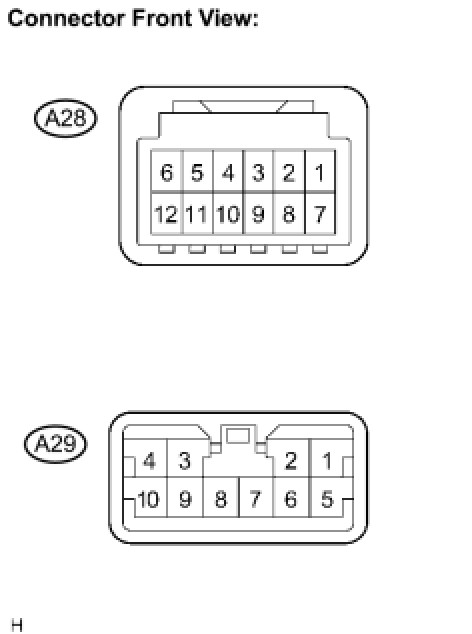

1. INSPECT WIPER ECU

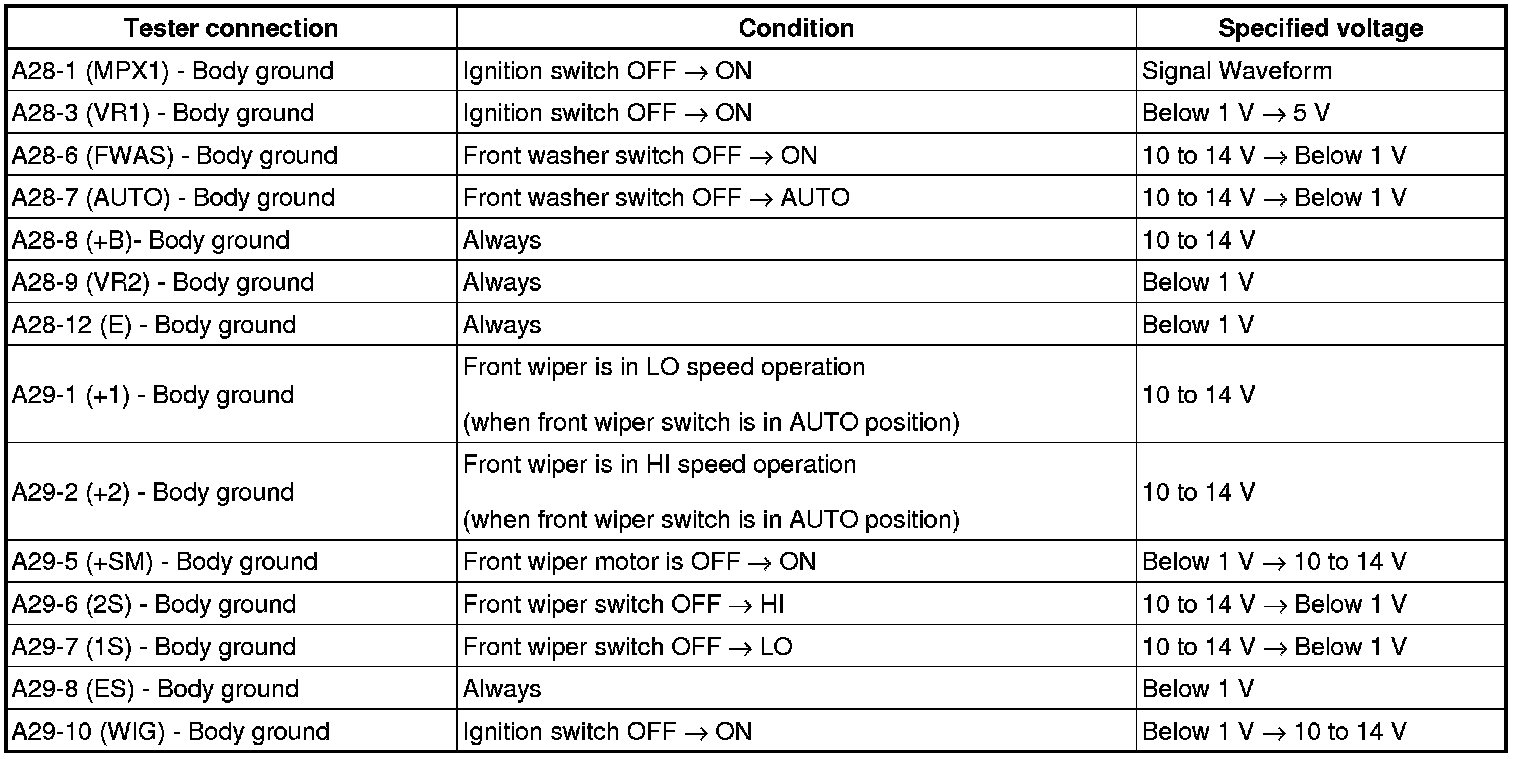

(a) Measure the voltage according to the value(s) in the table below.
Standard voltage:
