Crankshaft Position Sensor: Testing and Inspection

2GR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSPECTION

INSPECTION

1. INSPECT CRANKSHAFT POSITION SENSOR

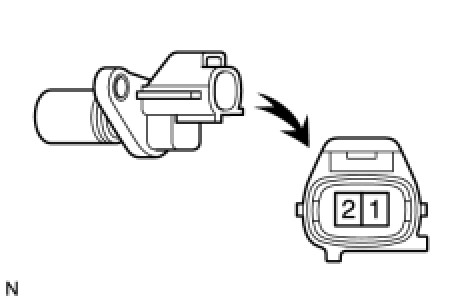

(a) Using an ohmmeter, measure the resistance between the terminals.
Standard resistance:





- "Cold" and "Hot" mean the temperature of the coils themselves.
- "Cold" is from -10°C (14°F) to 50°C (122°F) and "Hot" is from 50°C (122°F) to 100°C (212°F).
If the resistance is not as specified, replace the sensor.
