Installation

2GR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

INSTALLATION

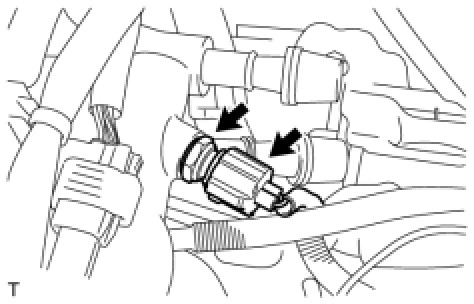

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR





(a) Install the engine coolant temperature sensor.
Torque: 20 Nm (204 kgf-cm, 15ft-lbf)
(b) Connect the engine coolant temperature sensor connector.
2. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation
3. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
4. INSTALL NO. 1 AIR CLEANER INLET Installation
5. INSTALL NO. 2 AIR CLEANER INLET Installation
6. ADD ENGINE COOLANT Testing and Inspection
7. INSPECT FOR COOLANT LEAK Testing and Inspection
8. INSTALL V-BANK COVER SUB-ASSEMBLY
