Installation








2GR-FE ENGINE CONTROL SYSTEM: MASS AIR FLOW METER: INSTALLATION

INSTALLATION

1. REMOVE MASS AIR FLOW METER

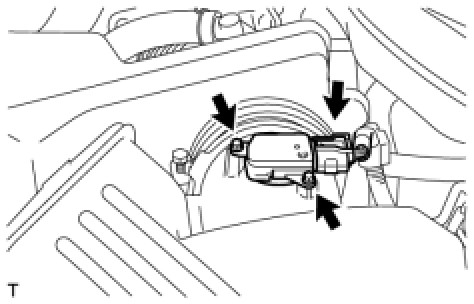

(a) Install the mass air flow meter with the 2 screws.
(b) Connect the mass air flow meter connector.
