Installation

LIGHTING: HEADLIGHT LEVELING ECU: INSTALLATION

INSTALLATION

1. INSTALL HEADLIGHT LEVELING ECU ASSEMBLY

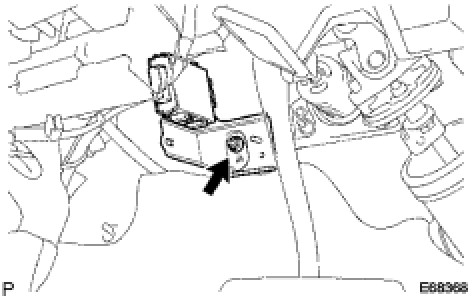

(a) Install the headlight leveling ECU assembly with the nut.
Torque: 7.0 Nm (71 kgf-cm, 62in-lbf)
(b) Connect the connector.
2. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER Installation
3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation
4. INSTALL FRONT DOOR SCUFF PLATE LH
5. CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
Repair Instruction - Initialization
