Removal

AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: REMOVAL

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE RH
2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.2
4. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
5. REMOVE ECM

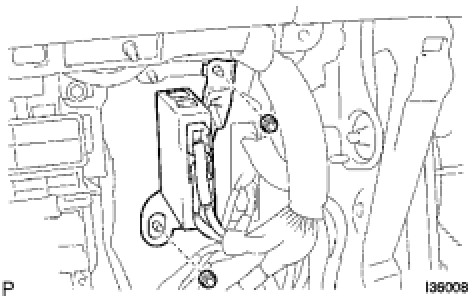

6. REMOVE AIR CONDITIONER AMPLIFIER ASSEMBLY





(a) Disconnect the connectors.
(b) Remove the 2 nuts and air conditioner amplifier assembly.
7. REMOVE SUSPENSION CONTROL ECU
