Fuse Block

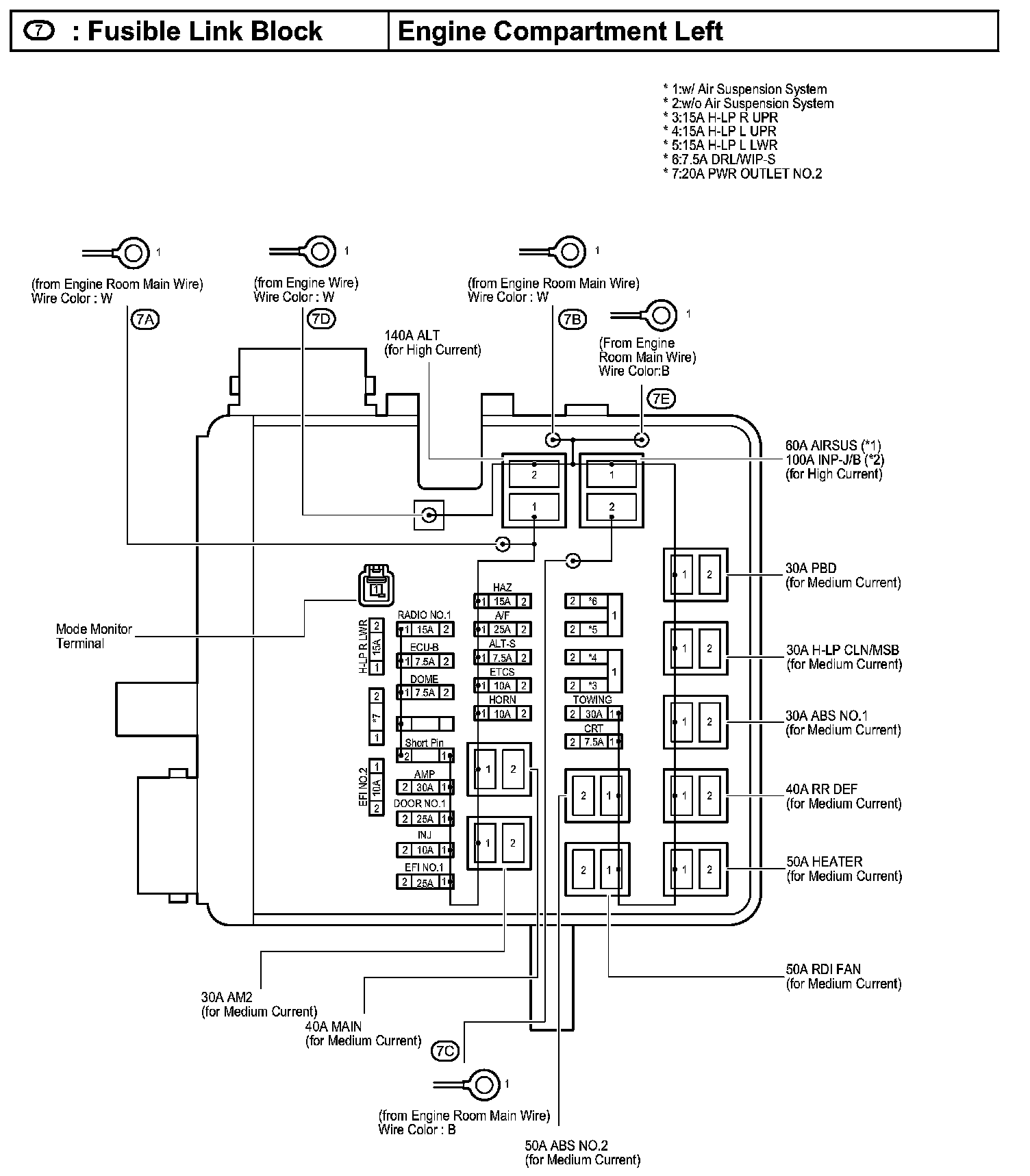

Fusible Link Block - Engine Compartment Left:

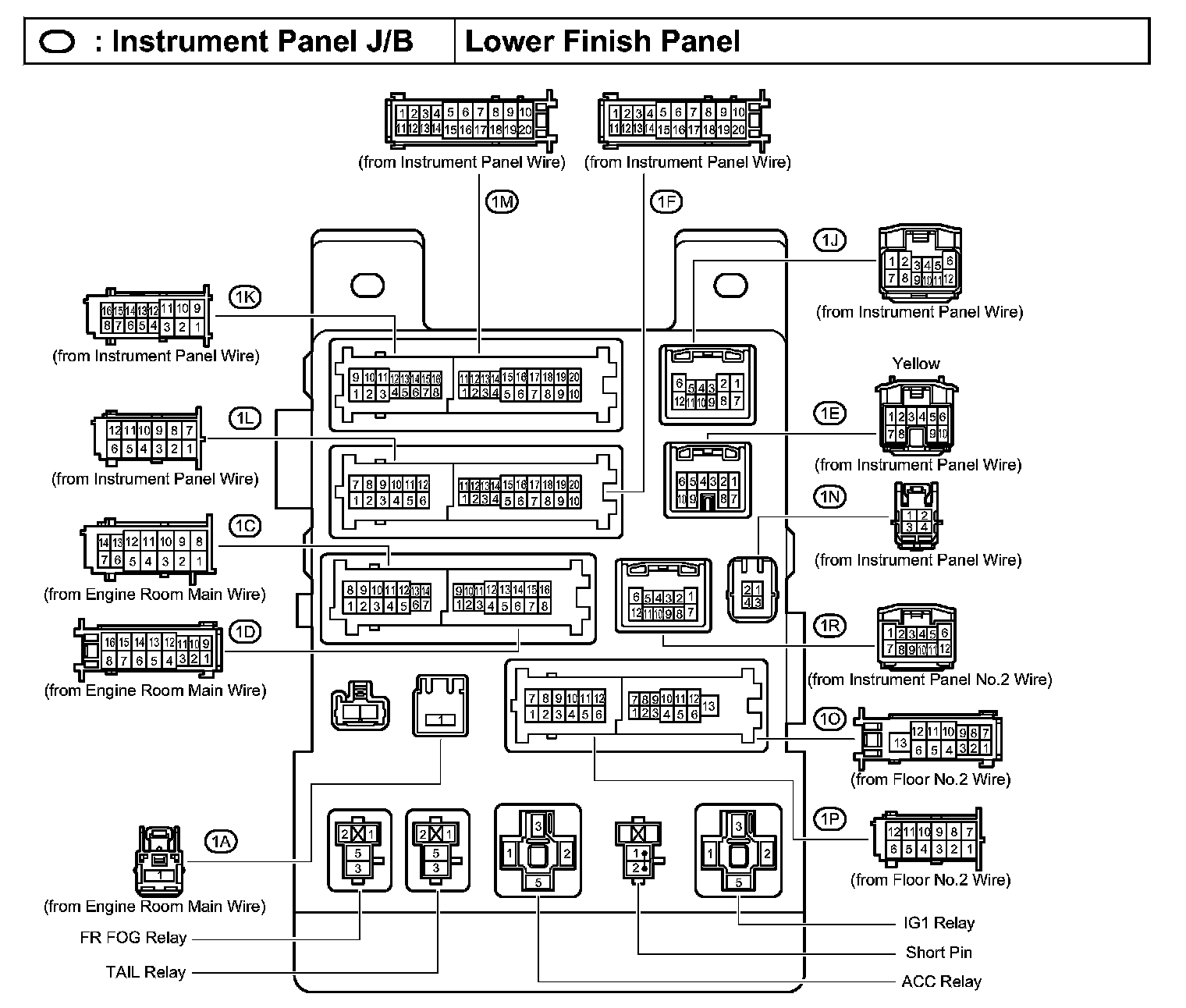

Instrument Panel J/B - Lower Finish Panel:

Instrument Panel J/B - Lower Finish Panel:

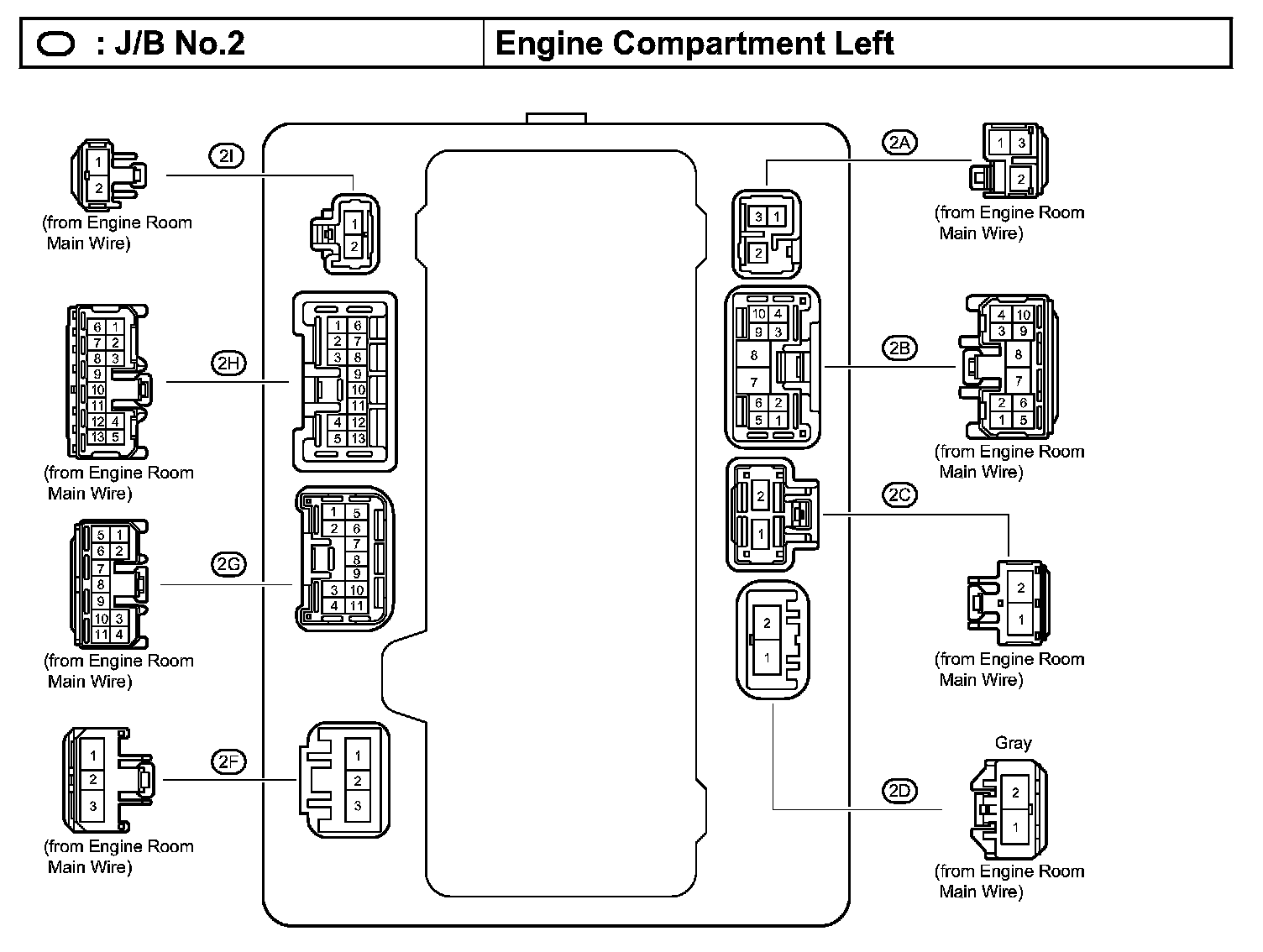

J/B No.2 - Engine Compartment Left:

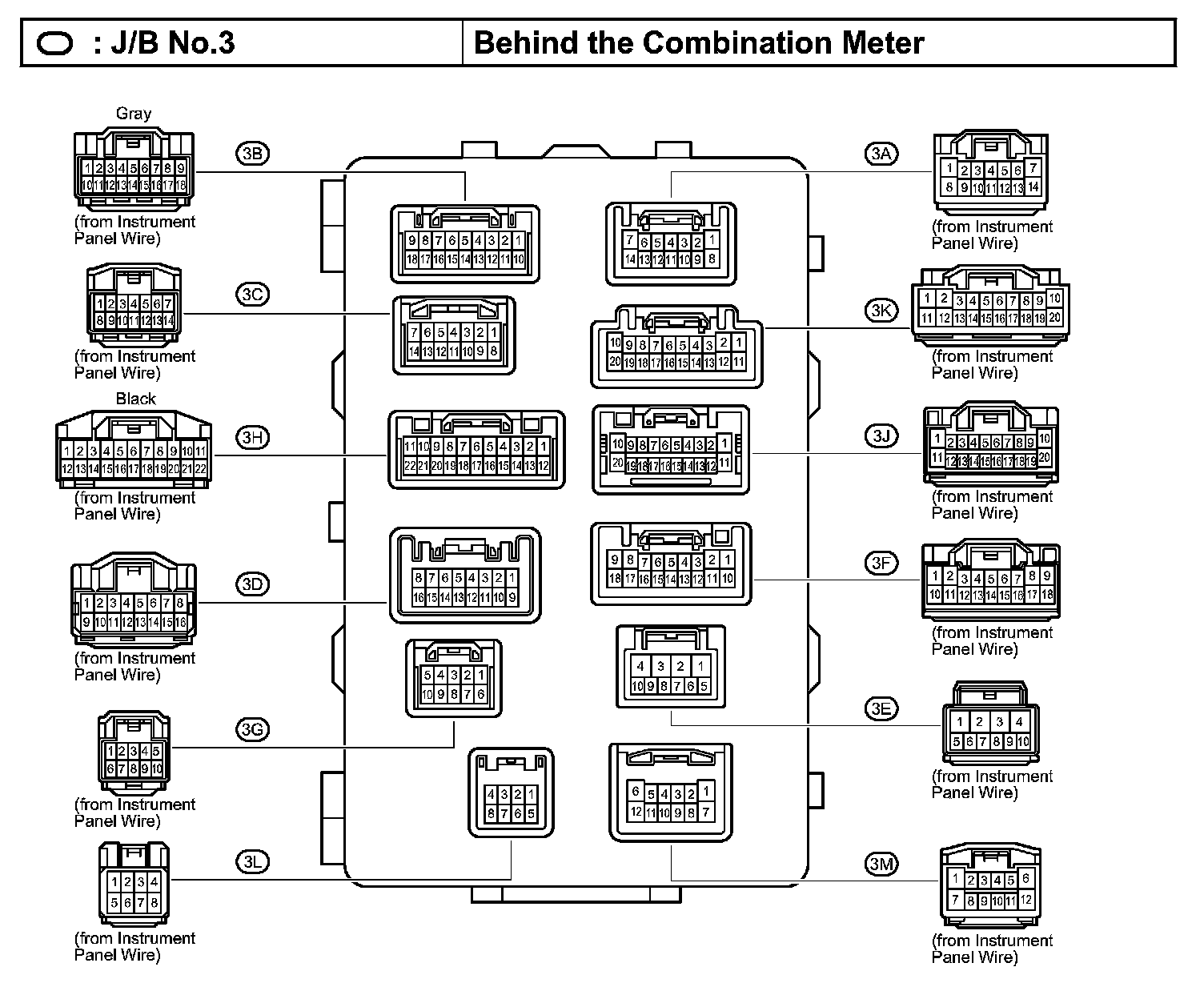

J/B No.3 - Behind The Combination Meter:

J/b No.4 - Behind The Glove Box:

J/B No.4 - Behind The Glove Box:

Junction Connector - (CAN Front) Right Kick Panel:

Junction Connector (CAN Rear) - Left Rear Quarter Panel:

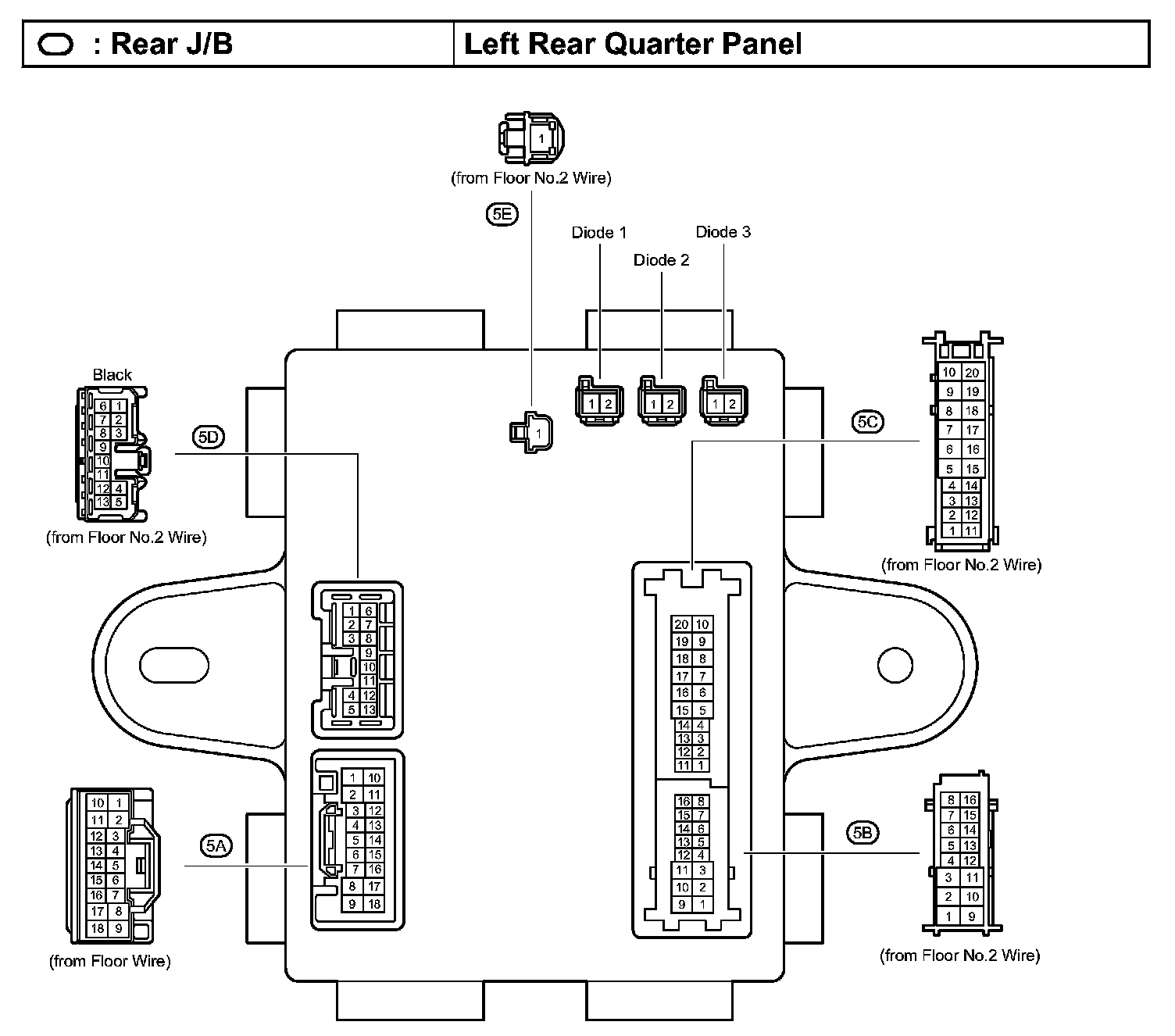

Rear J/B - Left Rear Quarter Panel:
