Removal

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent the airbag working. Removal

2. REMOVE STEERING WHEEL NO.3 COVER LOWER Removal
3. REMOVE STEERING WHEEL NO.2 COVER LOWER Removal
4. REMOVE STEERING PAD Removal
5. REMOVE CRUISE CONTROL MAIN SWITCH





(a) Disconnect the connector.
(b) Remove the 2 screws.

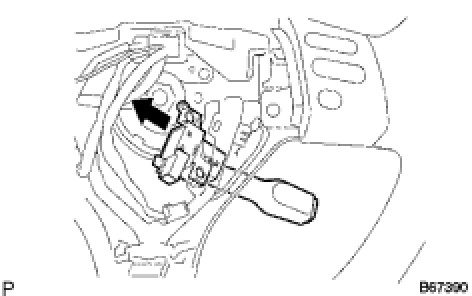

(c) Pull the cruise control main switch in the arrow direction to remove it.
