Installation

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSTALLATION

INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH

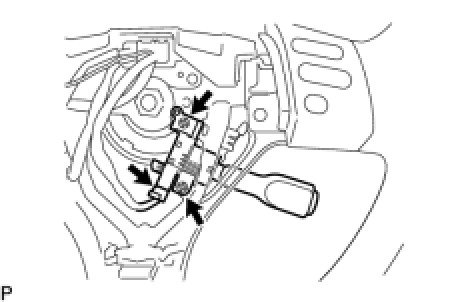

(a) Install the cruise control main switch with the 2 screws.
Torque: 2.4 Nm (25 kgf-cm, 21in-lbf)
(b) Connect the connector.
2. INSTALL STEERING PAD Installation
3. INSTALL STEERING WHEEL NO.3 COVER LOWER Installation
4. INSTALL STEERING WHEEL NO.2 COVER LOWER Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSPECT SRS WARNING LIGHT
Diagnosis System
