SEAT: SEAT HEATER CONTROL: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT FRONT SEAT HEATER CONTROL LH

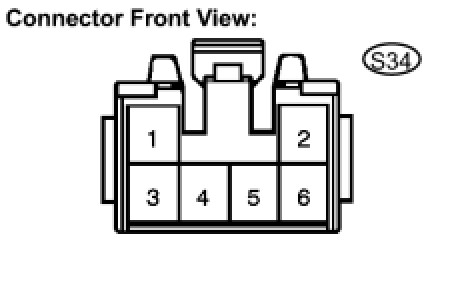

(a) Disconnect the front seat heater control connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, repair or replace the wire harness or connector.
(c) Measure the voltage according to the value(s) in the table below.
Standard voltage:





If the result is not as specified, repair or replace seat heater switch circuit.
2. INSPECT FRONT SEAT HEATER CONTROL RH

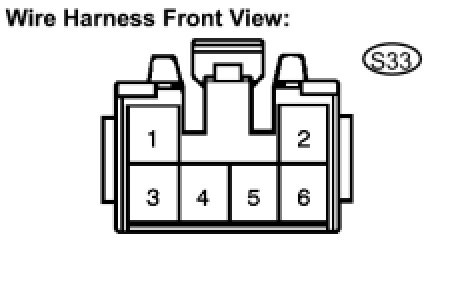

(a) Disconnect the front seat heater control connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, repair or replace wire harness or connector.
(c) Measure the voltage according to the value(s) in the table below.
Standard voltage:





If the result is not as specified, repair or replace the seat heater switch circuit.
