AUDIO / VISUAL: NETWORK GATEWAY ECU: INSTALLATION

INSTALLATION

1. INSTALL NETWORK GATEWAY ECU

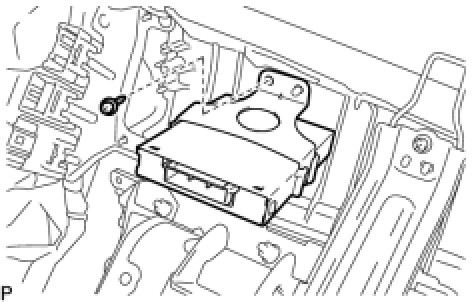

(a) Install the network gateway ECU with the screw.
(b) Connect the connector.
2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation
5. INSTALL FRONT DOOR SCUFF PLATE RH
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
NOTICE:
Some systems need initialization after reconnecting the cable to the negative battery terminal Repair Instruction - Initialization.
