Power Seat for Driver's Seat: Notes

WARNING: This page is about a different car, the 2008 Lexus LX 570. However, it is still accessible from the selected car via links, so may be relevant.

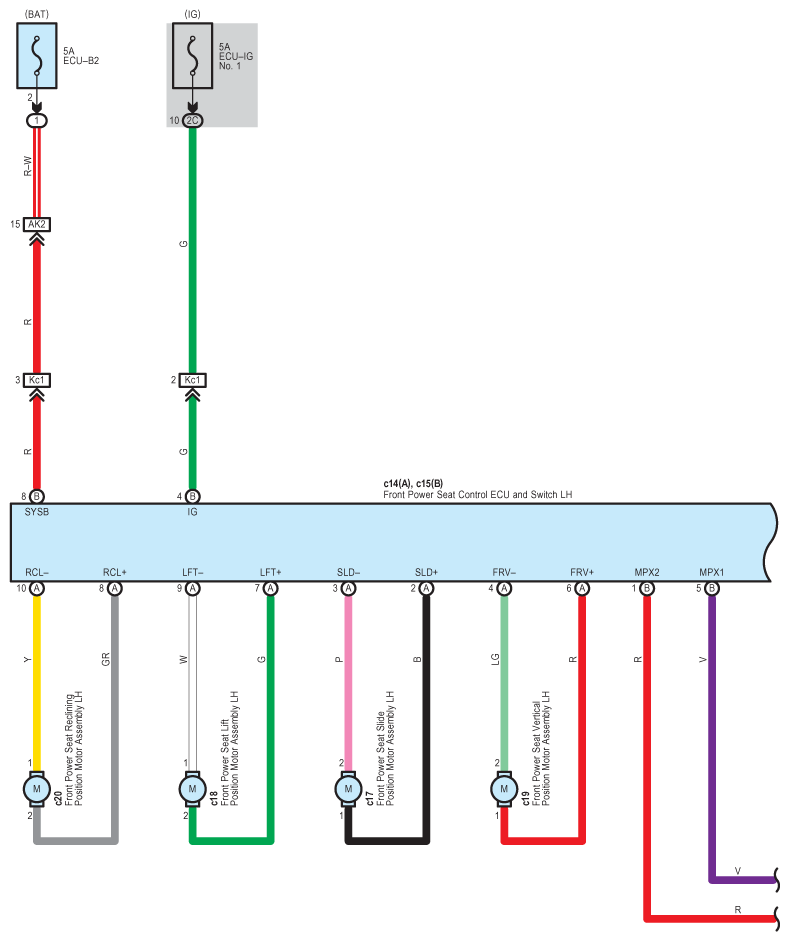

Fig 1: Power Seat For Driver's Seat - Circuit Diagram (1 Of 4)
G07596958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

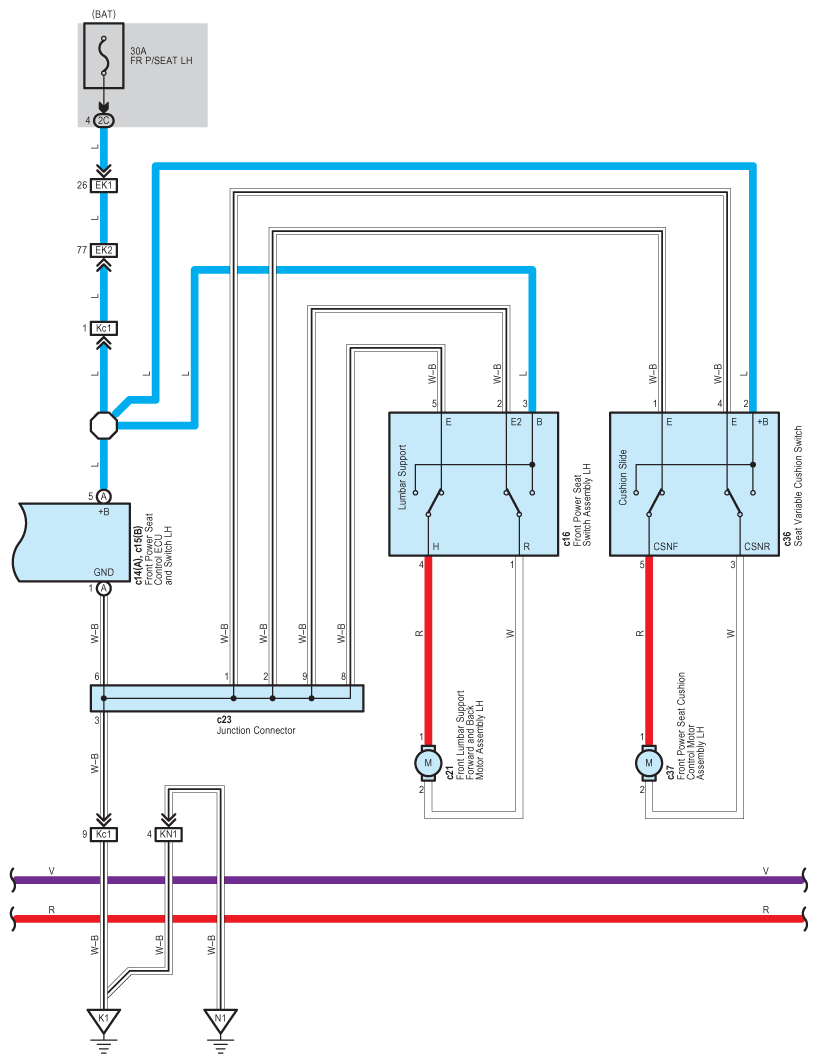

Fig 2: Power Seat For Driver's Seat - Circuit Diagram (2 Of 4)
G07596959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

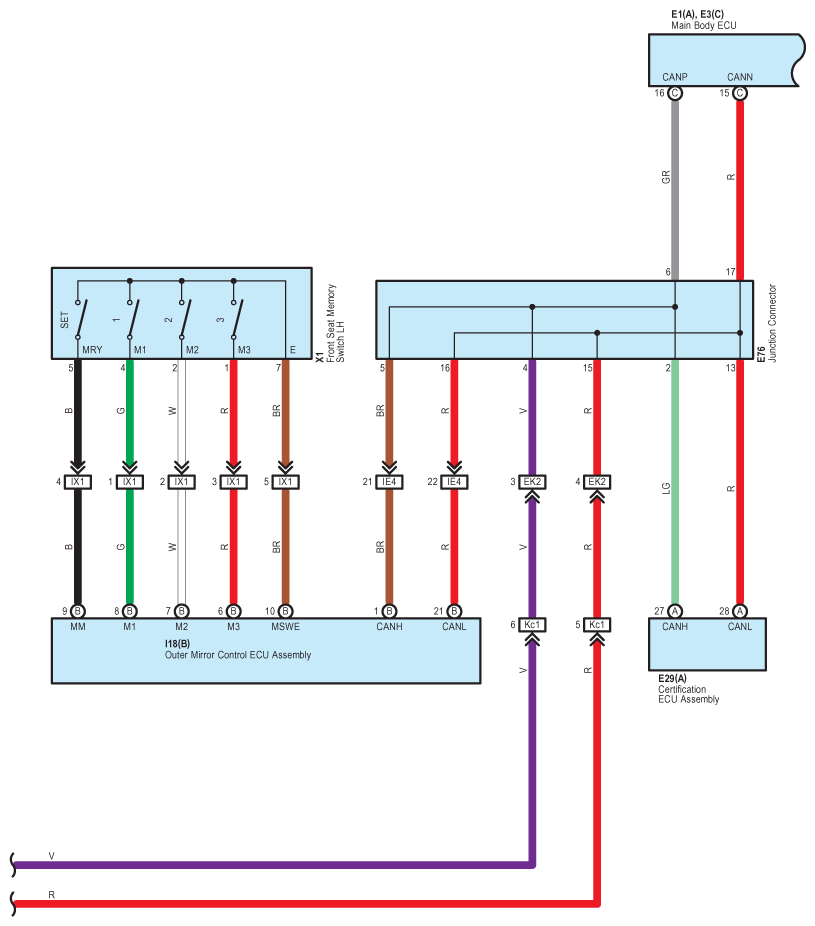

Fig 3: Power Seat For Driver's Seat - Circuit Diagram (3 Of 4)
G07596960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

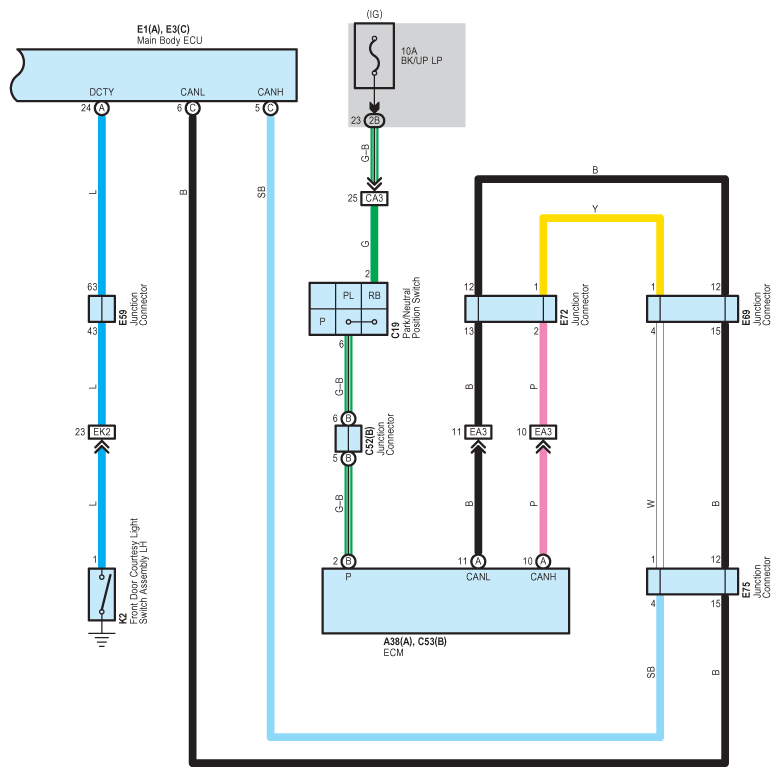

Fig 4: Power Seat For Driver's Seat - Circuit Diagram (4 Of 4)
G07596961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
