EVAP System: Wiring Diagram

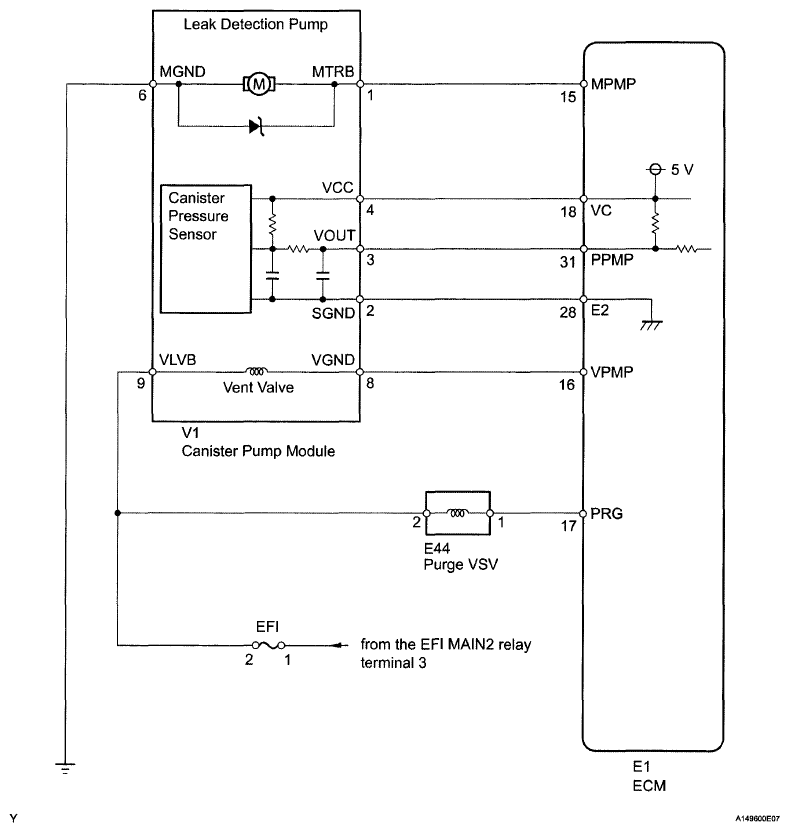

Fig 1: Leak Detection Pump - Wiring Diagram
G06190058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
