OIL LEVEL SENSOR (for AWD): Components

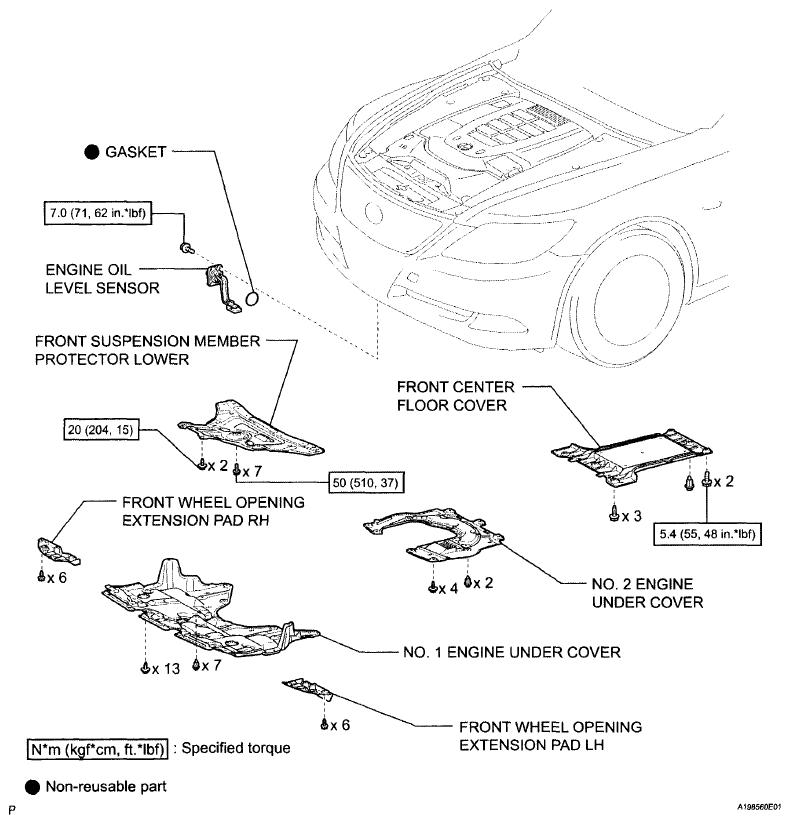

Fig 1: Oil Level Sensor And Related Replacement Components With Torque Specifications (AWD)
G06196519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
