Parts Location

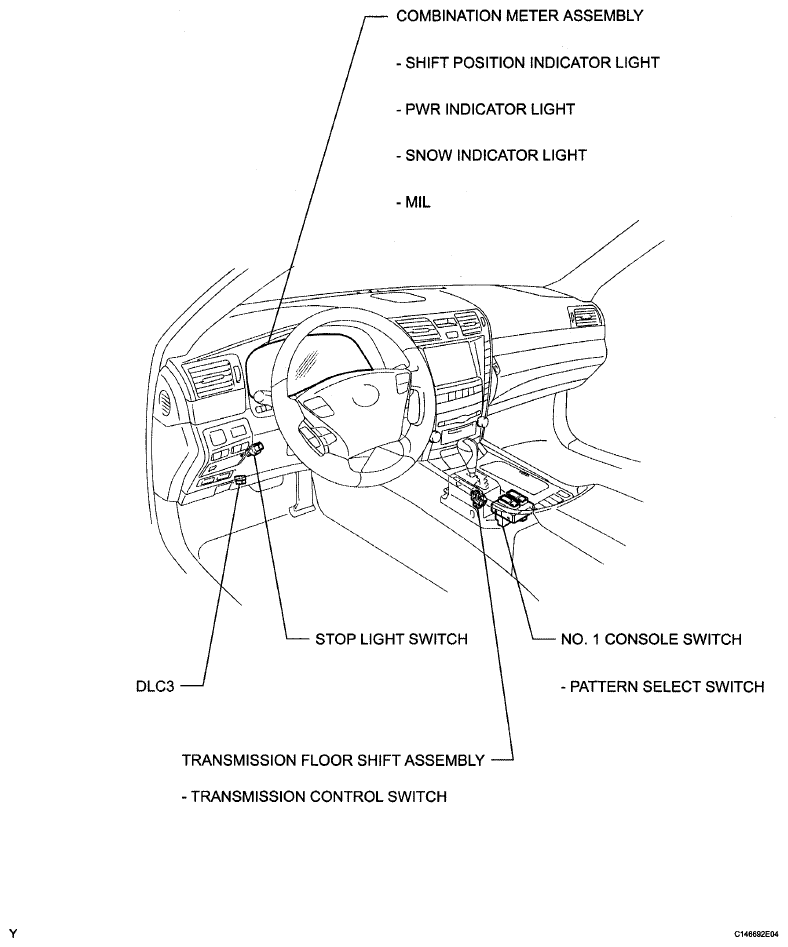

Fig 1: Identifying Automatic Transmission System (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

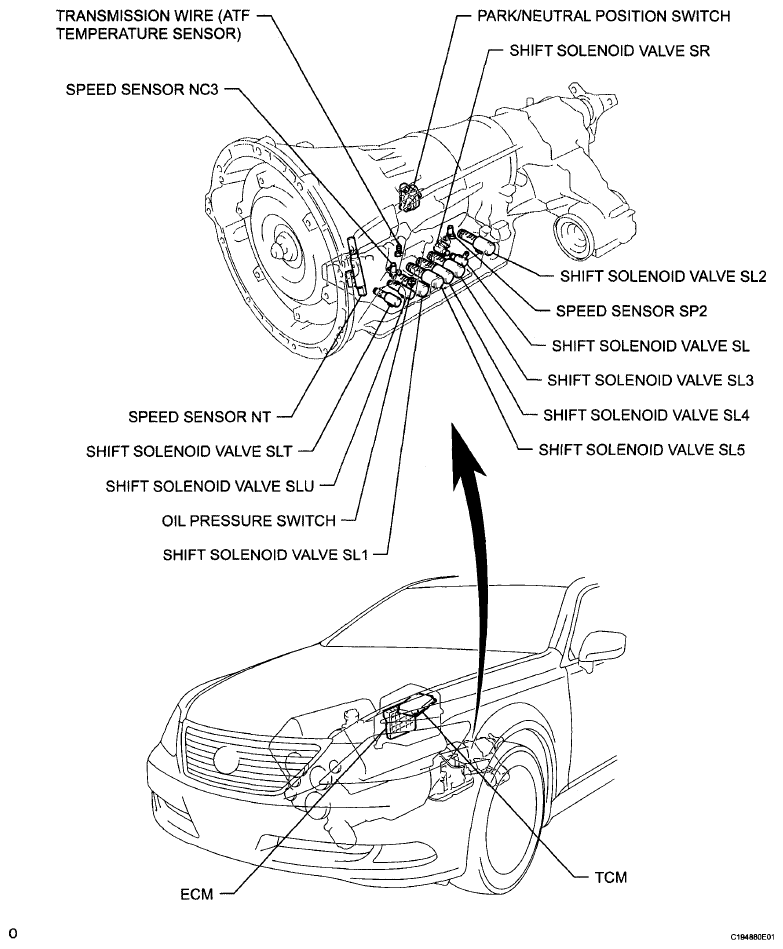

Fig 2: Identifying Automatic Transmission System (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
