DTC B22AE Open in Alternater Charge Line: Wiring Diagram

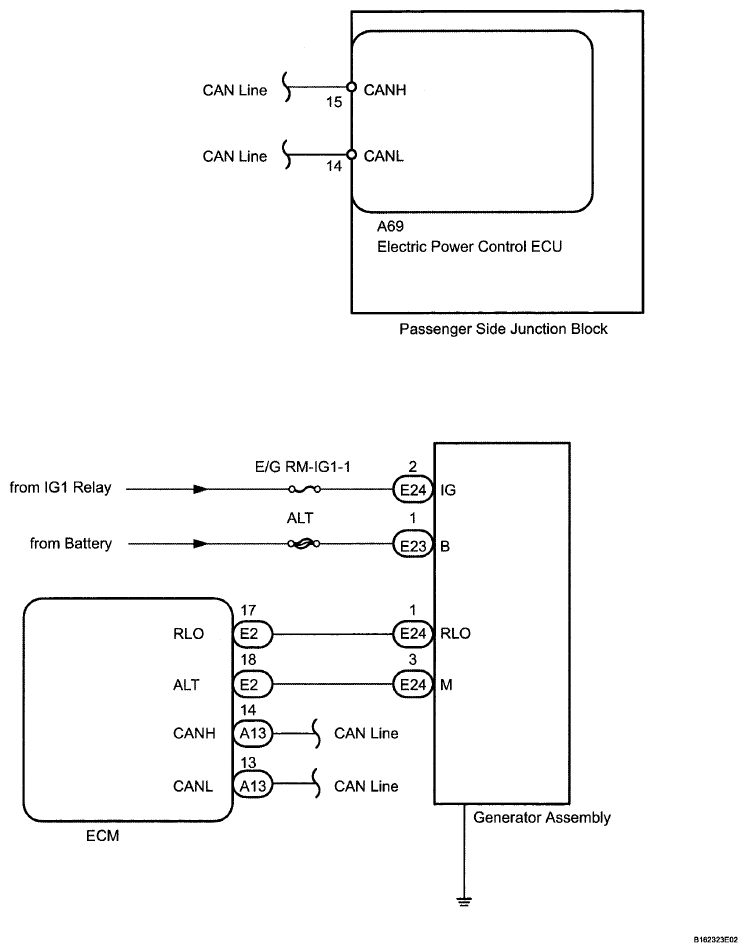

Fig 1: Open In Alternater Charge Line - Wiring Diagram
G06190787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
