Power Window Master Switch








WINDSHIELD / WINDOWGLASS: POWER WINDOW MASTER SWITCH: INSPECTION

INSPECTION

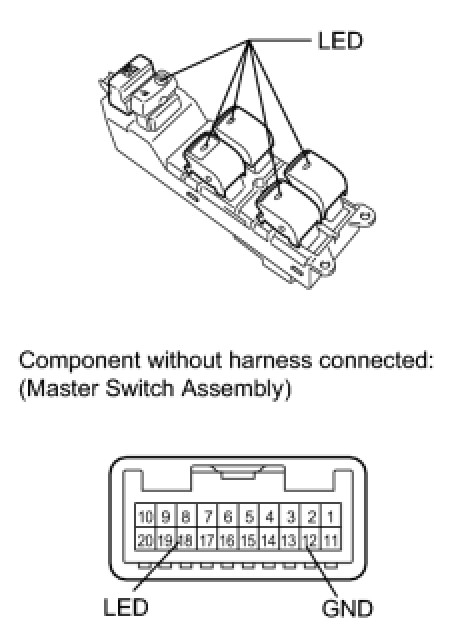

1. INSPECT MASTER SWITCH ASSEMBLY





(a) Check that the LED illuminates.
(b) Apply battery voltage to the master switch and check that the LED illuminates.

OK:





- If the result is not as specified, replace the switch assembly.
