Installation








WINDSHIELD / WINDOWGLASS: POWER WINDOW MASTER SWITCH: INSTALLATION

INSTALLATION

1. INSTALL MASTER SWITCH ASSEMBLY

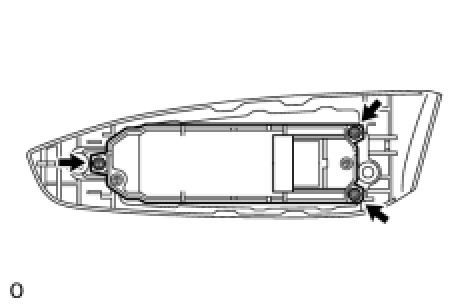

(a) Install the master switch assembly with the 3 screws.

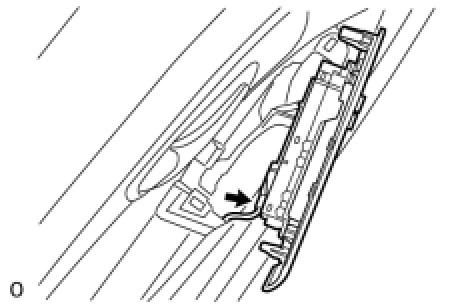

(b) Connect the connector.

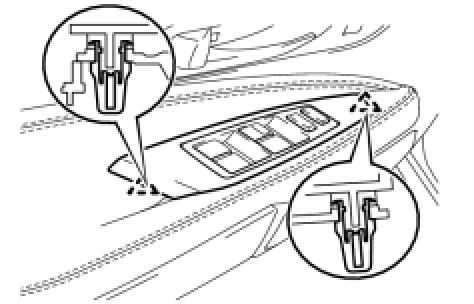

(c) Install the armrest base assembly with the 2 clamps.
