Ignition Switch: Testing and Inspection

1UR-FSE STARTING: ENGINE SWITCH: INSPECTION

INSPECTION

1. INSPECT ENGINE SWITCH

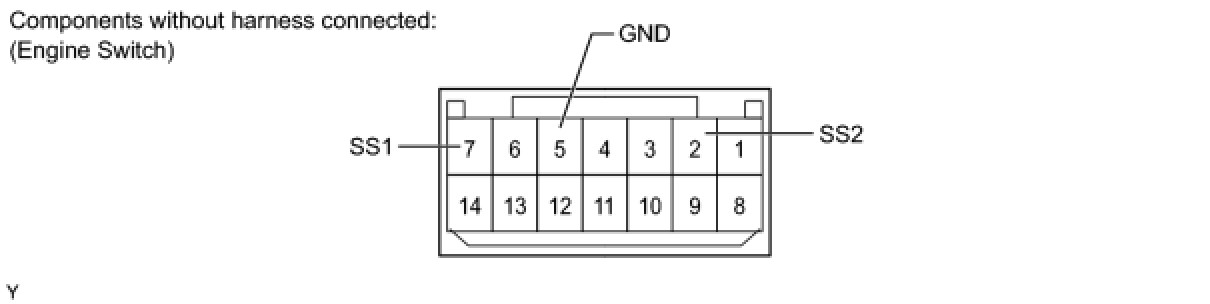

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:









If the result is not as specified, replace the engine switch.

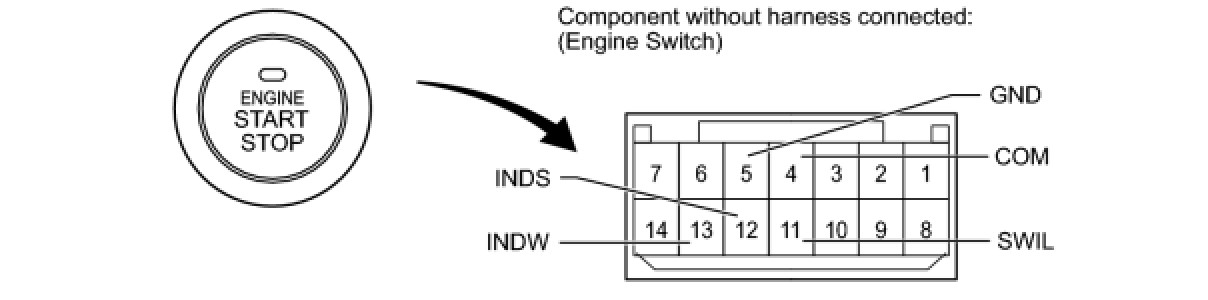

(b) Apply battery voltage between the terminals of the switch, and check the illumination condition of the switch.
HINT:
- If the positive (+) lead and the negative (-) lead are incorrectly connected, the engine switch indicator will not illuminate.
- If the voltage is too low, the indicator will not illuminate.

OK:









If the result is not as specified, replace the engine switch.
