System Specifications








SERVICE SPECIFICATIONS: 1UR-FSE COOLING: SERVICE DATA

SERVICE DATA

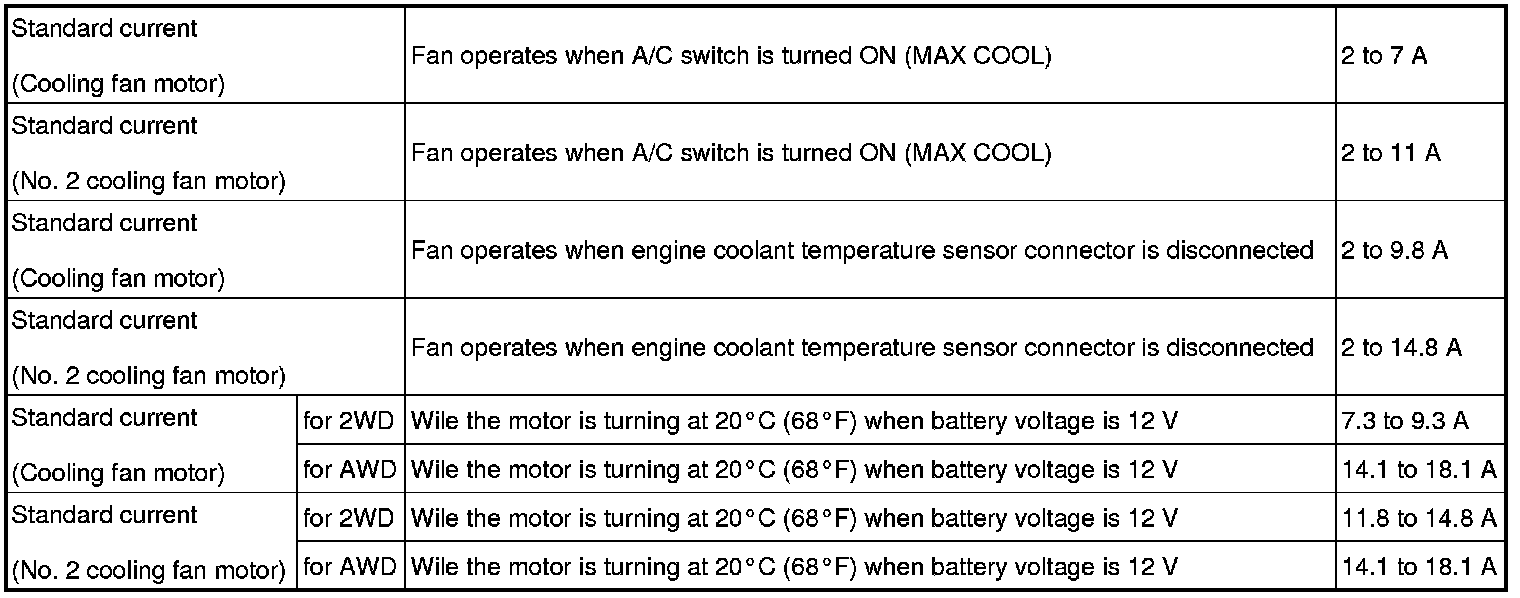

Cooling fan motor





Water inlet sub-assembly with thermostat





Radiator cap sub-assembly (standard judgment criterion)
