PARKING BRAKE: ELECTRIC PARKING BRAKE ECU: INSTALLATION

INSTALLATION

1. INSTALL ELECTRIC PARKING BRAKE ECU





(a) Install the parking brake ECU with the 2 nuts.
Torque: 5.5 N�m (56 kgf�cm, 49 in�lbf)
(b) Connect the 2 connectors.

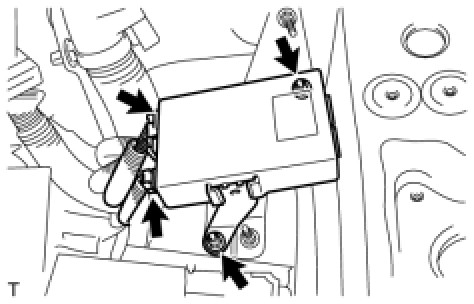

(c) Install the seat belt control ECU with the 2 nuts.
Torque: 5.5 N�m (56 kgf�cm, 49 in�lbf)
(d) Connect the 2 connectors.
2. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH Installation
3. INSTALL DECK TRIM SIDE BOARD LH Installation
4. INSTALL REAR FLOOR FINISH PLATE Installation
5. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Installation
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
8. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

9. PERFORM CALIBRATION
(a) Clear the electric parking brake ECU memory and acquire tension sensor zero point Programming and Relearning.
