Problem Symptoms Table








CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

RESULT LIST OF CHECK CAN BUS LINE

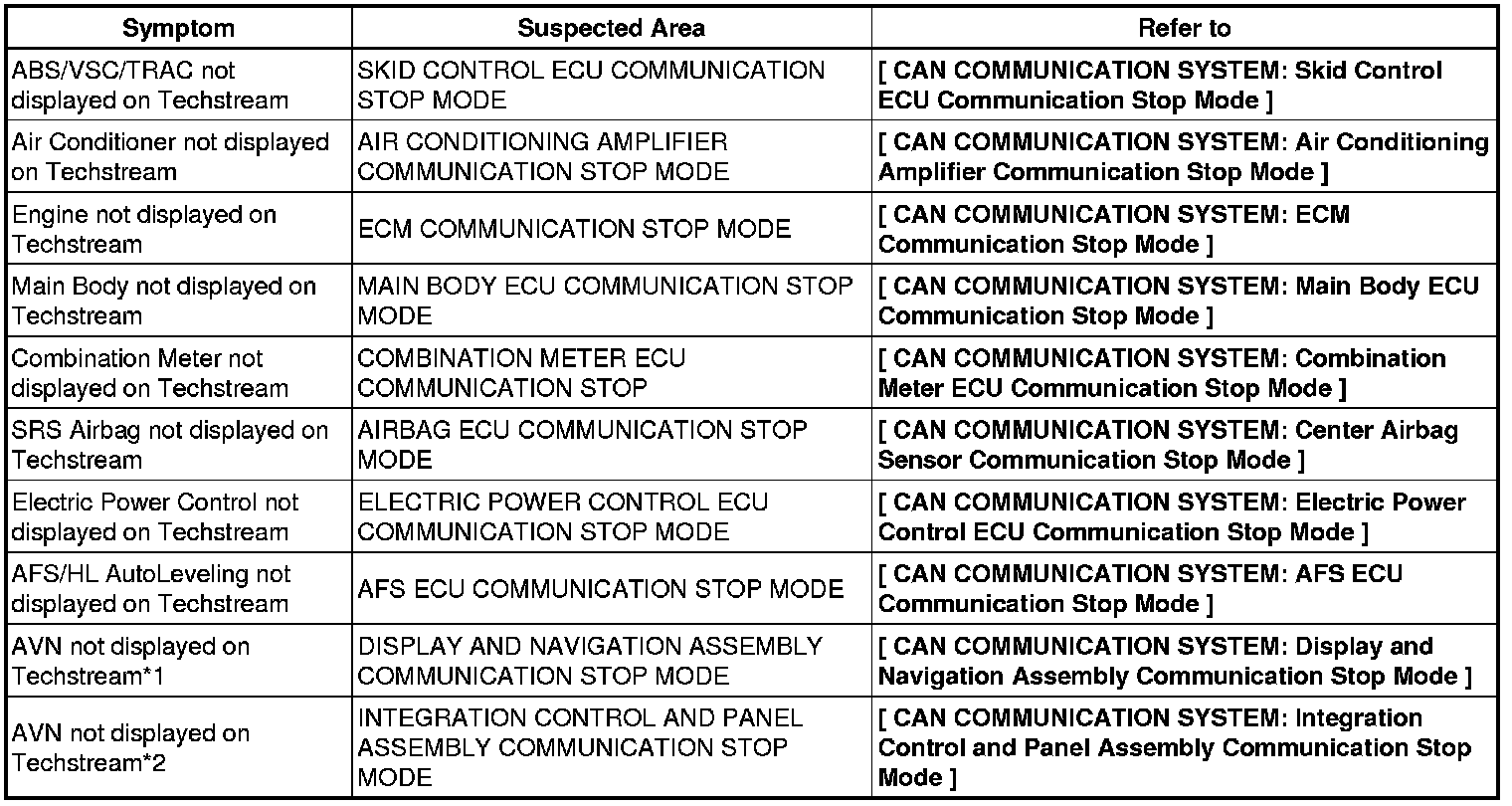

COMMUNICATION STOP MODE TABLE





HINT:
- *1: W/ Multi-display
- *2: W/O Multi-display
