Removal

1UR-FSE ENGINE CONTROL SYSTEM: CAMSHAFT POSITION SENSOR: REMOVAL

REMOVAL

1. REMOVE V-BANK COVER SUB-ASSEMBLY Removal
2. REMOVE CAMSHAFT POSITION SENSOR

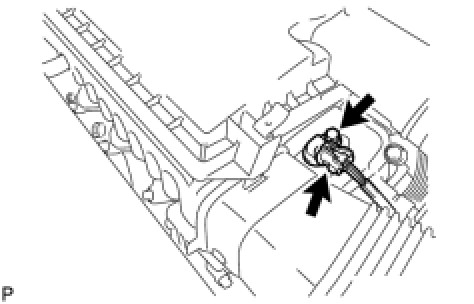

(a) Disconnect the camshaft position sensor connector.
(b) Remove the bolt and camshaft position sensor.
