ECU Power Source Circuit

CRUISE CONTROL: DYNAMIC RADAR CRUISE CONTROL SYSTEM: ECU Power Source Circuit

ECU Power Source Circuit

DESCRIPTION

This circuit provides power to operate the driving support ECU.

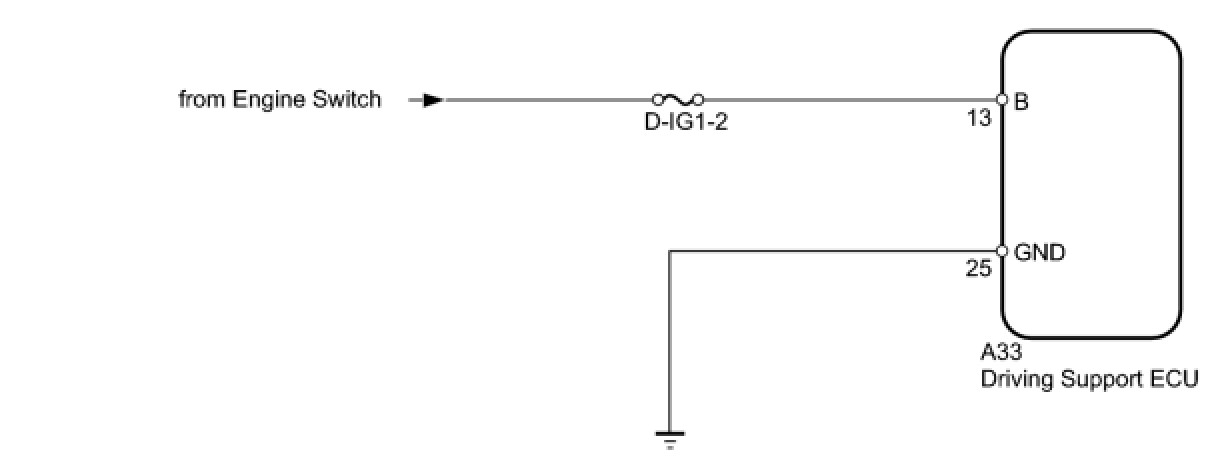

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FUSE (D-IG1-2)
(a) Remove the D-IG1-2 fuse from the main body ECU.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPLACE FUSE
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (DRIVING SUPPORT ECU - BATTERY AND BODY GROUND)

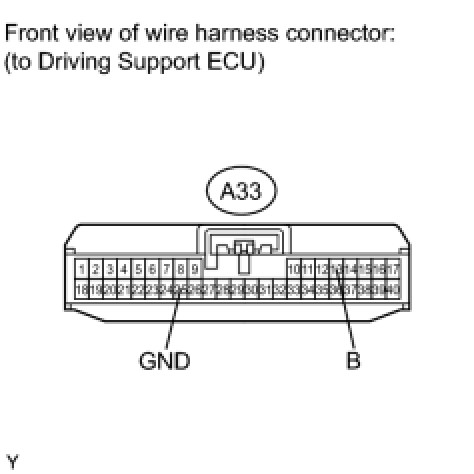

(a) Disconnect the A33 ECU connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:





(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
