System Description

INTEGRATION CONTROL AND PANEL ASSEMBLY*1 OR MULTI-DISPLAY*2 (CLOCK)

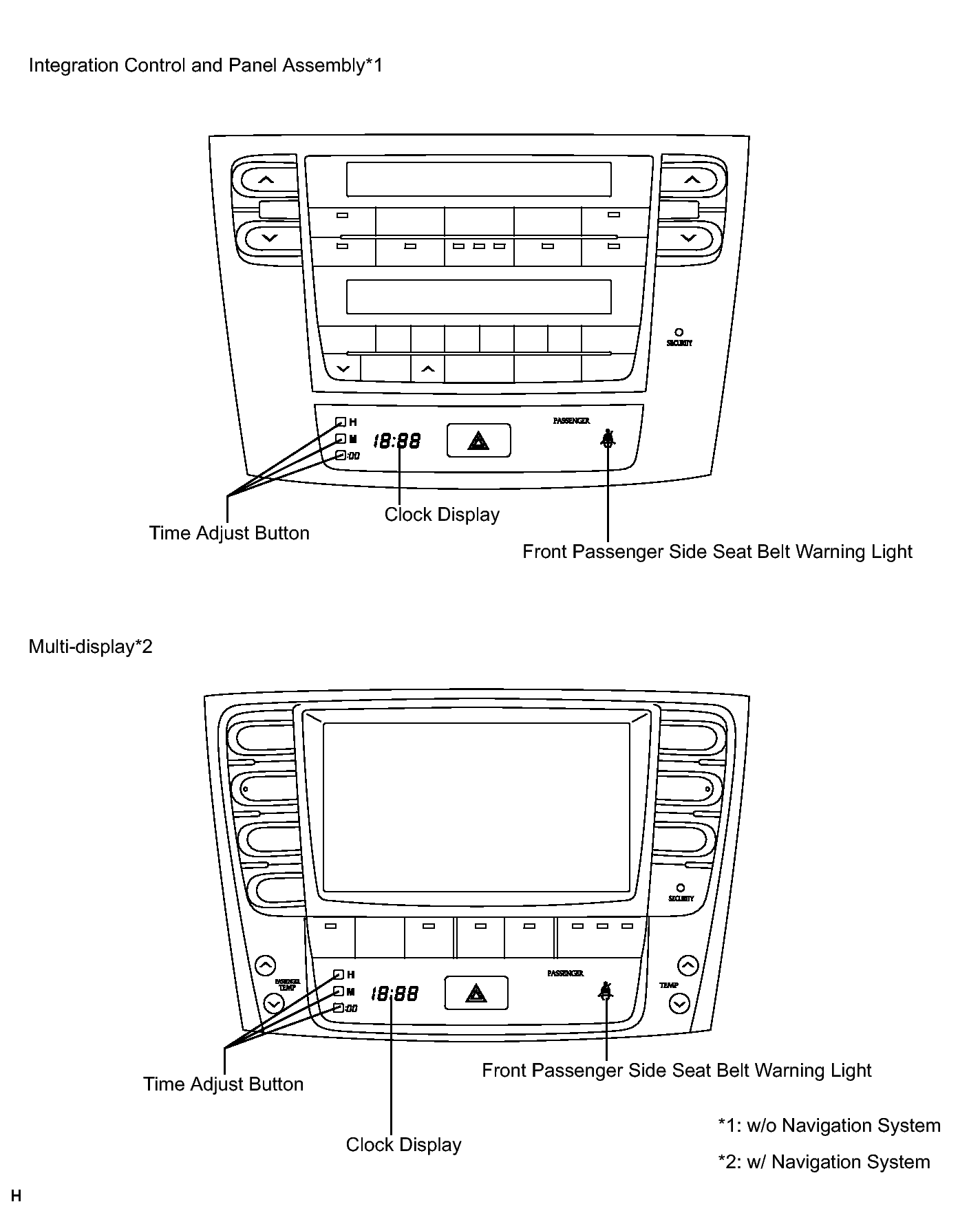

Fig 1: Identifying Integration Control And Panel Assembly*1 Or Multi-Display*2 (Clock)

GTY151387

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Integration control and panel assembly*1 consists of three parts (passenger information display, clock display and heater control panel). These areas display the contents given in the table below.
Multi-display*2 consists of four parts (navigation display, passenger information display, clock display, and heater control panel). These areas display the contents given in the table below.

Item	Detail
Passenger information display	Displays the condition of the front passenger side seat belt OFF or ON.
Heater control panel	Displays the condition of the heater control panel.
Clock display	The time is always displayed. In addition, the display dims according to the signal from the combination meter.
Navigation display*2	Displays the navigation data.

*1: w/o Navigation System
*2: w/ Navigation System
