2UR-GSE ENGINE CONTROL: CAMSHAFT POSITION SENSOR: INSTALLATION

INSTALLATION

1. INSTALL CAMSHAFT POSITION SENSOR

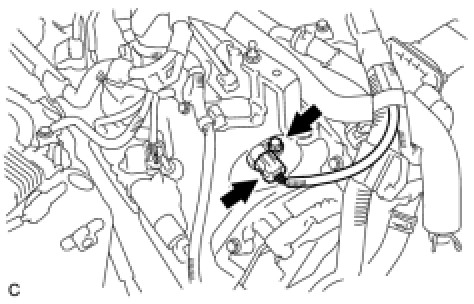

(a) Install the camshaft position sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

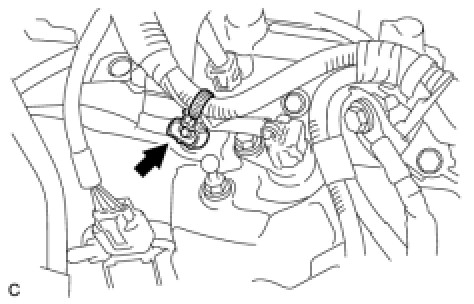

(b) Connect the camshaft position sensor connector.
2. INSTALL VVT SENSOR (for Bank 1)

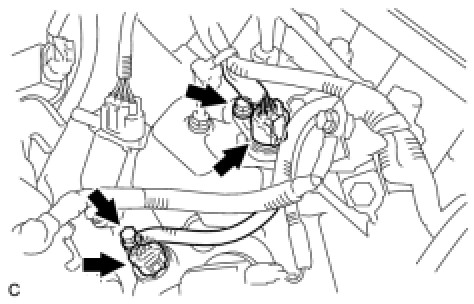

(a) Install the 2 VVT sensors with the 2 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connectors.

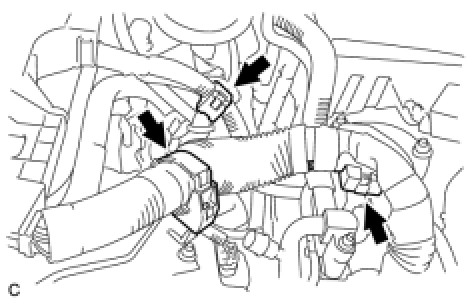

(c) Connect the 3 wire harness clamps.
3. INSTALL VVT SENSOR (for Bank 2)

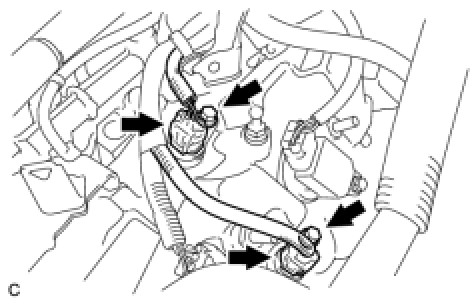

(a) Install the 2 VVT sensors with the 2 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connectors.





(c) Connect the wire harness clamp.
4. INSPECT FOR OIL LEAK
5. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
