THEFT DETERRENT / KEYLESS ENTRY: ID CODE BOX: INSTALLATION

INSTALLATION

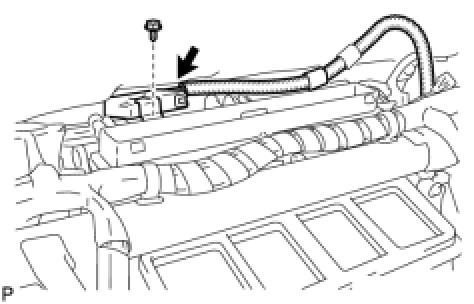

1. INSTALL ID CODE BOX (IMMOBILIZER CODE ECU)





(a) Install the ID code box (immobilizer code ECU) with the screw.
(b) Connect the connector.
2. INSTALL LOWER DEFROSTER NOZZLE ASSEMBLY Installation
3. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY
(a) Install the instrument panel safety pad assembly Installation.
4. REGISTER ECU COMMUNICATION ID
NOTE:
When replacing the ID code box (immobilizer code ECU), perform initialization Engine Immobilizer System.

5. REGISTER KEY
NOTE:
When replacing the ID code box (immobilizer code ECU), perform initialization Engine Immobilizer System.
