Combination Meter: Installation: Installation

WARNING: This page is about a different car, the 2009 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL COMBINATION METER ASSEMBLY
1. Position the combination meter assembly on the steering column as shown in the illustration.

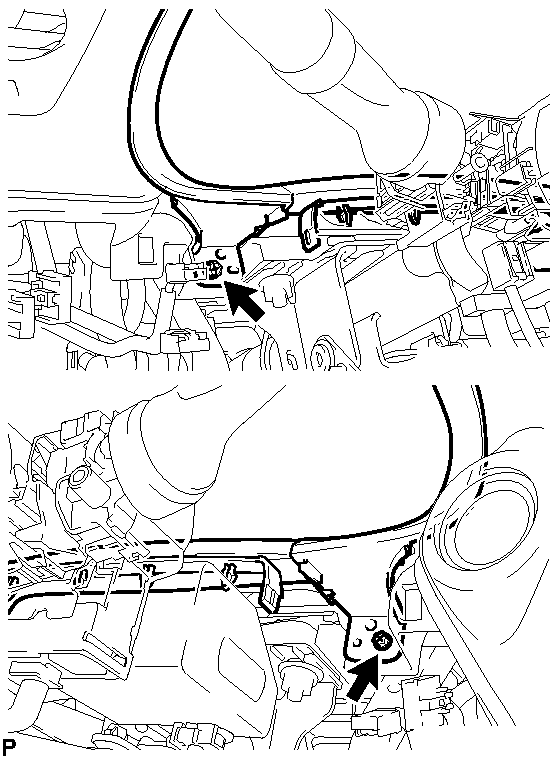

  Fig 1: Positioning Combination Meter Assembly On Steering Column
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not damage the instrument panel safety pad or combination meter assembly.
2. Connect the connectors.
3. Engage the 2 positioning pins of the combination meter assembly.

  Fig 2: Identifying Combination Meter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Engage the 2 claws and install the combination meter assembly.
5. Remove the protective tape.
INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
1. Install the 2 clips.

  Fig 3: Identifying Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the instrument cluster finish panel sub-assembly with the 2 screws.

  Fig 4: Identifying Instrument Cluster Finish Panel Subassembly With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 22
INSTALL SIDE INSTRUMENT PANEL LH . Refer to INSTALLATION - Step 24
INSTALL FRONT DOOR OPENING TRIM COVER LH . Refer to INSTALLATION - Step 79
INSTALL FRONT DOOR SCUFF PLATE LH . Refer to INSTALLATION - Step 81
INSTALL STEERING COLUMN COVER . Refer to INSTALLATION - Step 2
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
