Torque Specifications








SERVICE SPECIFICATIONS: CLUTCH: TORQUE SPECIFICATIONS

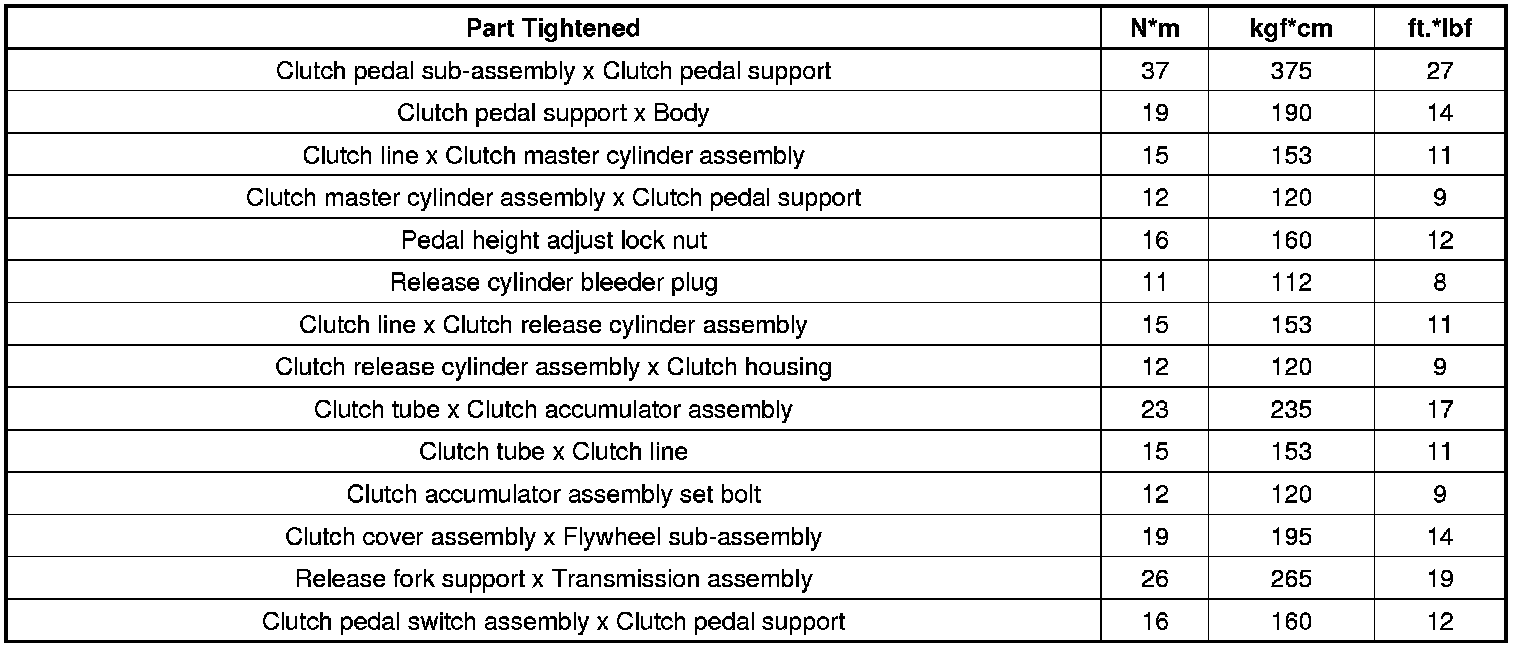

TORQUE SPECIFICATIONS





Clutch Cover Tightening Sequence
Tighten the bolts a little at a time in a diagonal pattern until they are all tightened.
