Components

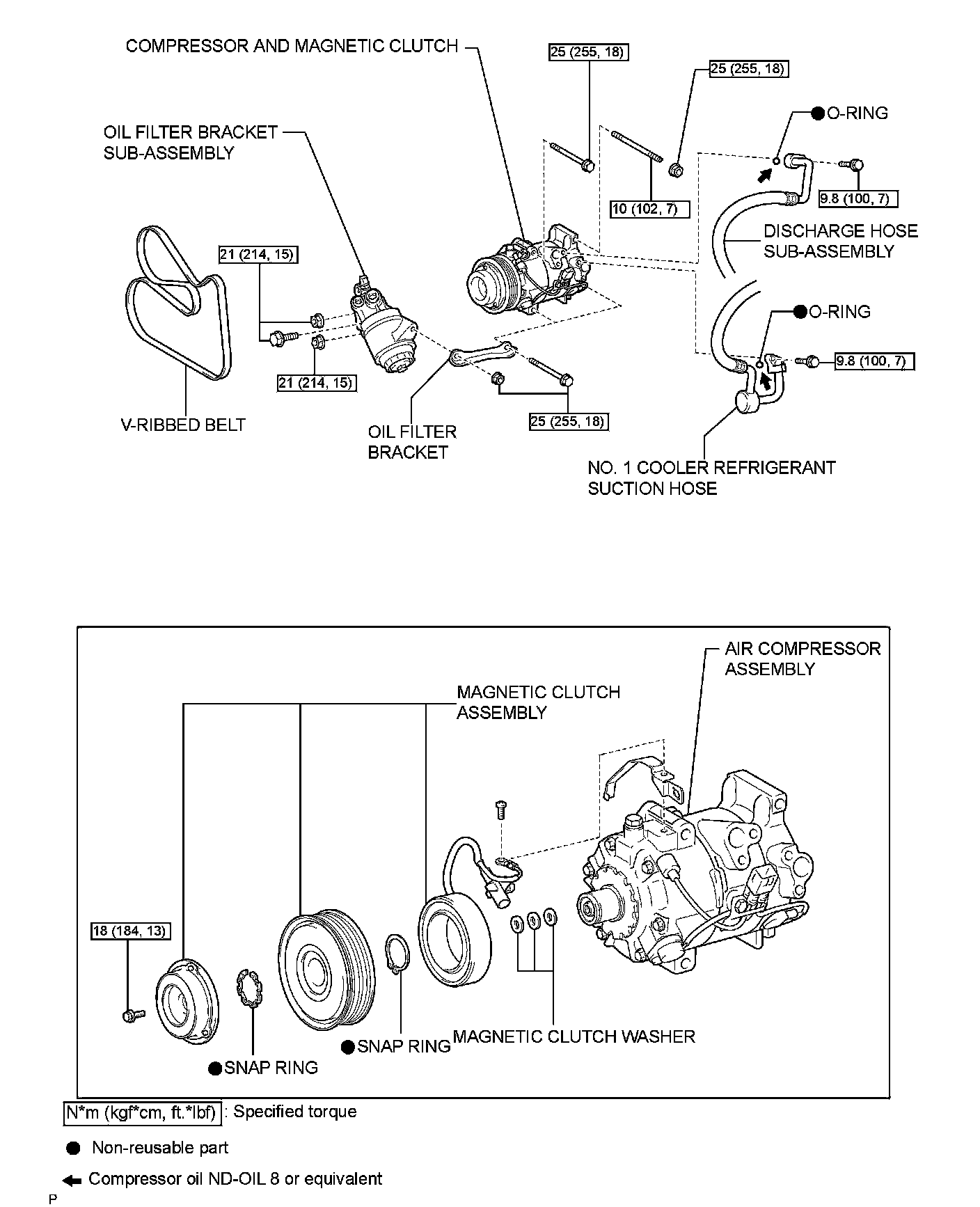

AIR CONDITIONING: COMPRESSOR AND MAGNETIC CLUTCH (for 4WD): COMPONENTS

COMPONENTS

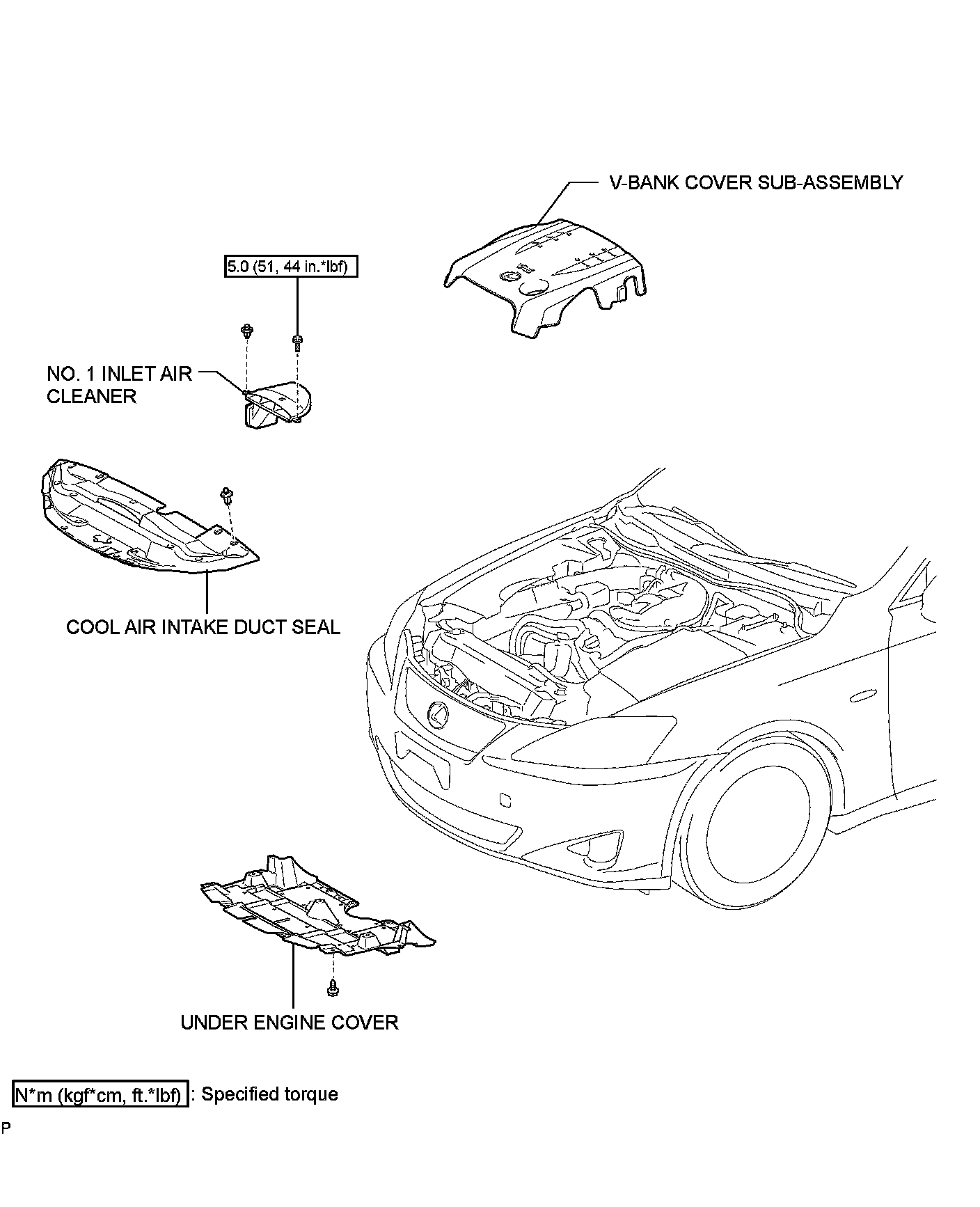

ILLUSTRATION
